Description

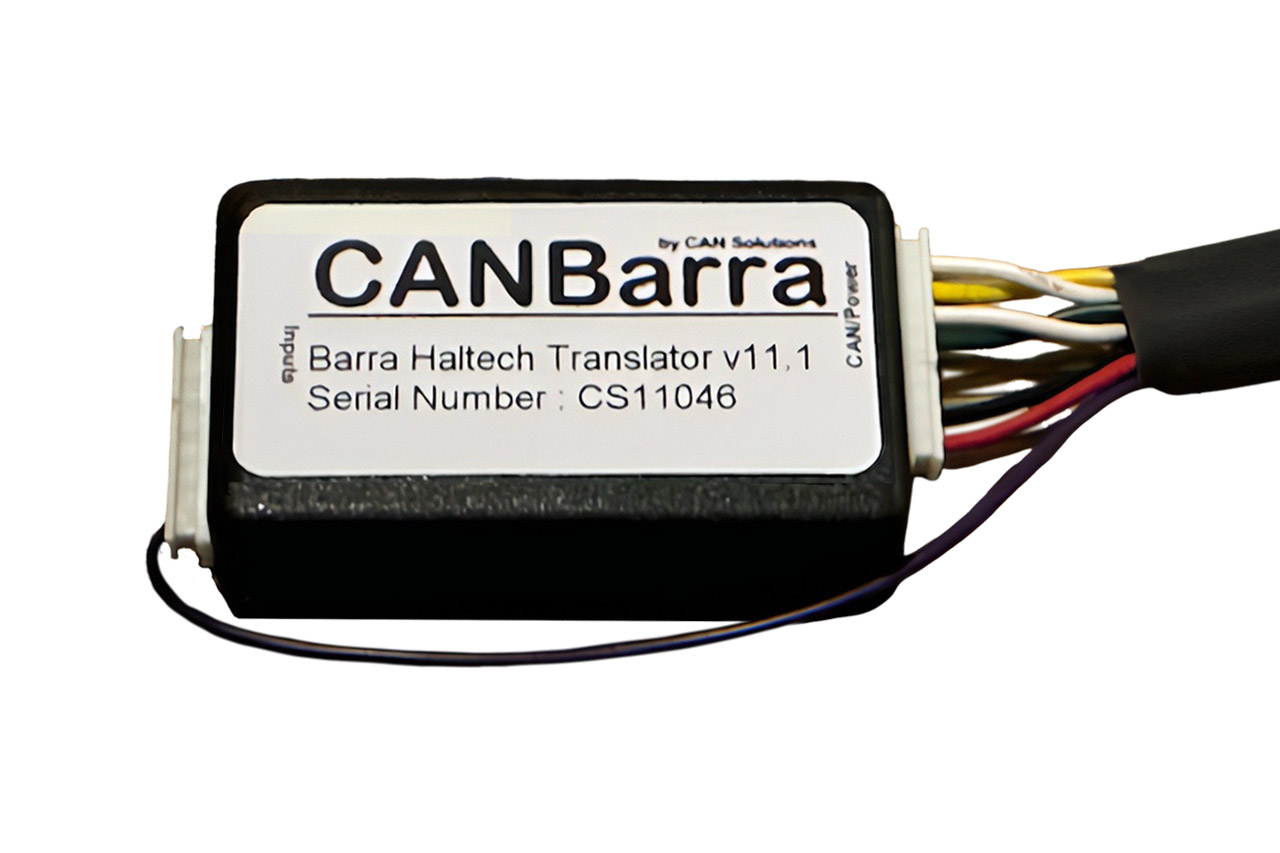

This module converts GM/Barra PCM CANBUS signals to connect to a Haltech uC-10 or iC-7 dash, and display more values with a faster update speed than what is possible in OBD2 mode.
When using an iC-7 or uC-10 in OBD2 mode there can be some lag or missing parameters due to the limited speed of OBD2.
This module is compatible with all BA BF FG Falcon PCMs and some GM PCMs, and allows the Haltech or IQ3 dash to update at full speed, giving smooth updates for factory vehicles running an upgraded dash as well offering extra features when used in an engine conversion.
Translates the following High Speed CAN data:
- Gear Position (Auto)
- Gearbox Temperature (ZF6 Only)
- Gearbox OSS Speed (ZF6 Only)
- Boost Pressure (FG Turbo and Supercharged Factory ECU’s)
- Throttle Body Position (ie. Pedal Position, except when a traction event is occurring)
- Tachometer
- Speedometer
- Coolant Temperature
- Oil Pressure Light
- Cruise Control Status (On, Set)
- Cruise Control Set Speed (FG-FGX)
- Alternator Light (FG-FGX)
- Check Engine Lamp
- Engine Oil Temp (if Sensor is fitted from Factory)
Optional OBD Channels
- Ambient Temp
- IAT Temp
- Boost (for BA and BF Turbo)
- MAP
- Spark
- H O2_1
- H O2_2 (For V8s)
When used used in conversions, this module can also look after:
- AC Request Control to PCM
- Digital VSS signals for FG Manuals
- BF/ZF Speed Emulation
These devices are programmed to order to suit your vehicle. In your order notes, please include:
- car model and year, and engine and trans, & PCM,
- transmission being used and whether PCM controlled.
