Description

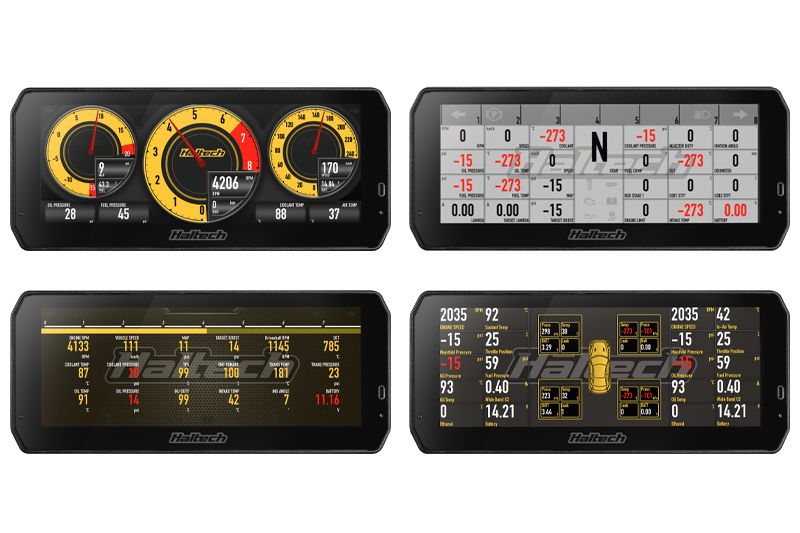

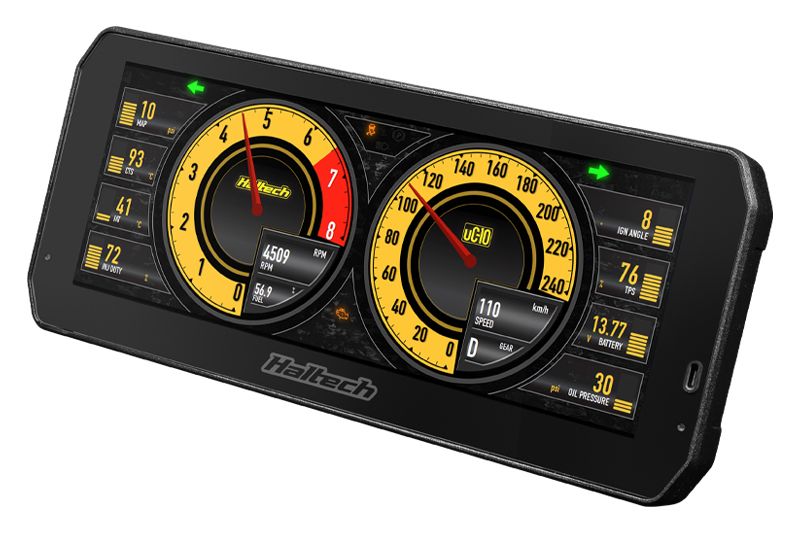

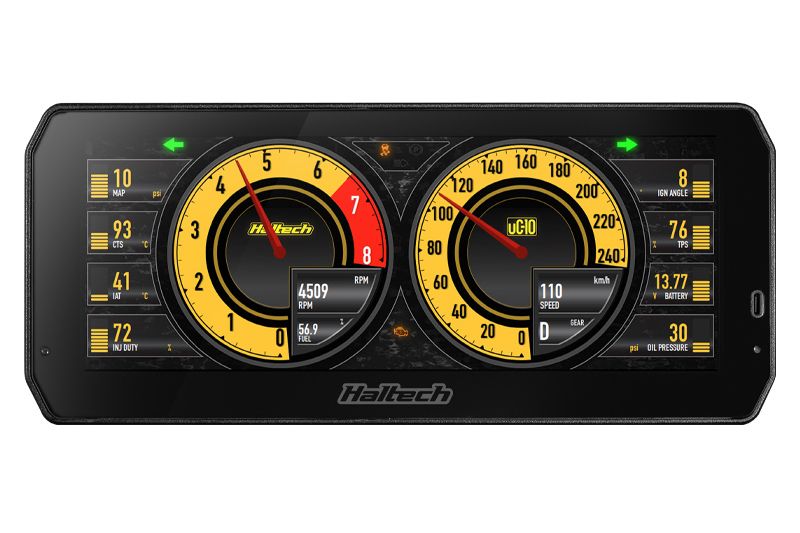

Upgrade your cockpit with the Haltech uC-10 Digital Dash (HT-068000), the ultimate 10-inch full colour display engineered for seamless vehicle integration. Whether you are running a cutting edge Haltech ecosystem, a separate supported aftermarket ECU, a factory OBD2 setup, or simply looking for a powerful standalone display solution, the uC-10 delivers unparalleled versatility. Featuring an ultra bright, optically bonded TFT screen and advanced onboard data logging, this premium digital instrument cluster acts as both a crystal clear display and a massive I/O expander for all your custom wiring needs.
Specifications
- Display: 10-inch full-colour, optically-bonded TFT screen
- Resolution & Brightness: 1280 x 480 resolution, 600+ lumens
- Viewing Angle: 70° minimum vertical and horizontal viewing angle
- Environmental Rating: IP64 (Dust tight and protected against water splashes)
- Odometer: 6-digit odometer tracking
- Data Logging: 512MB of on-board looped data logging
- Software: Haltech NSP (Nexus Software Programmer) compatible
Inputs/Outputs:
- 10 x user-configurable AVIPs (Analogue Voltage Inputs)
- 4 x user-configurable DPOs (Digital Pulsed Outputs)
- 4 x user-configurable SPIs (Synchronised Pulsed Inputs)
- 1 x dedicated Tacho Input
- 1 x dedicated alternator excite
- Sensors: 2 x Ambient light sensors for auto-dimming

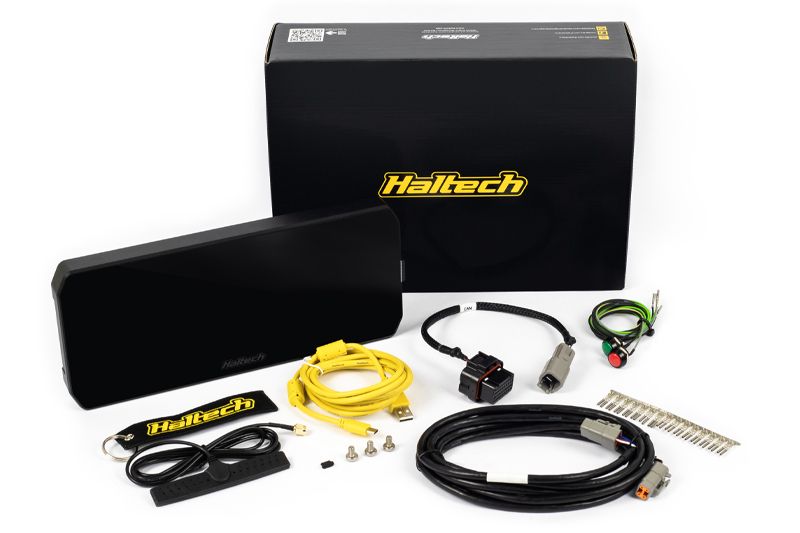

What’s Included in the box:
- 1 x Haltech uC-10 Digital Dash

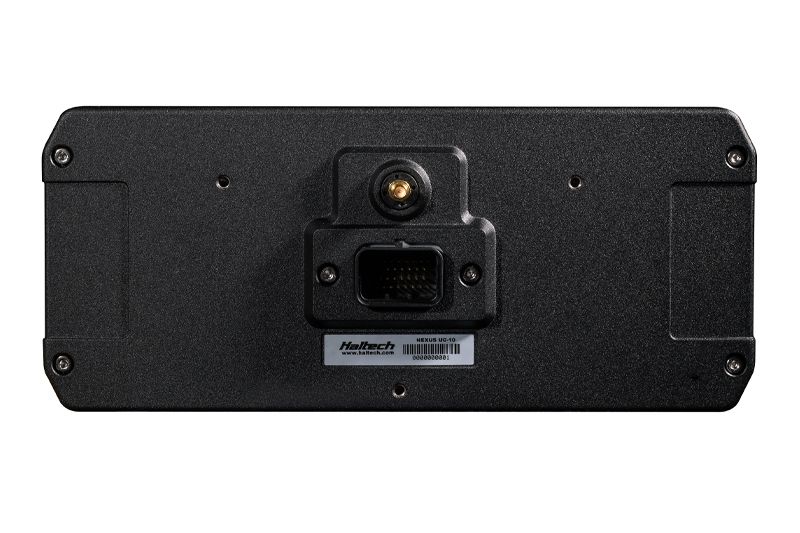

- 1 x 34P connector (same as HT-131001)
- 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in)
- 1 x USB-C cable
- 3 x M5 x 8mm mounting screws
- 2 x Momentary switches (pre-terminated 800mm 22AWG Cable)
- 1 x Glass Mount Wi-Fi antenna (Note: Wi-Fi functionality to be unlocked via future firmware update)
- 1 x Haltech fabric keytag, Quick Start Guide, and Haltech stickers.
Manufacturer Part Number: HT-068000
Frequently Asked Questions
Can I use the uC-10 dash if I am still running a factory ECU?
Yes, the uC-10 is highly versatile and can be configured as a standalone unit. It can pull data via an OBD2 connection or be wired directly to standalone sensors using its generous amount of built-in inputs.
Which aftermarket ECU brands are supported out of the box with a uC-10?
Beyond native plug-and-play support for all current Haltech CAN-based ECUs, the uC-10 features pre-configured compatibility with Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series (M400, M600, M800), and Syvecs systems.
Does the uC-10 support data logging?
Yes, the dash features 512MB of onboard looped data logging. This means it will continuously record channel data and overwrite the oldest files automatically once full, ensuring you always capture your most recent track sessions or street drives.
