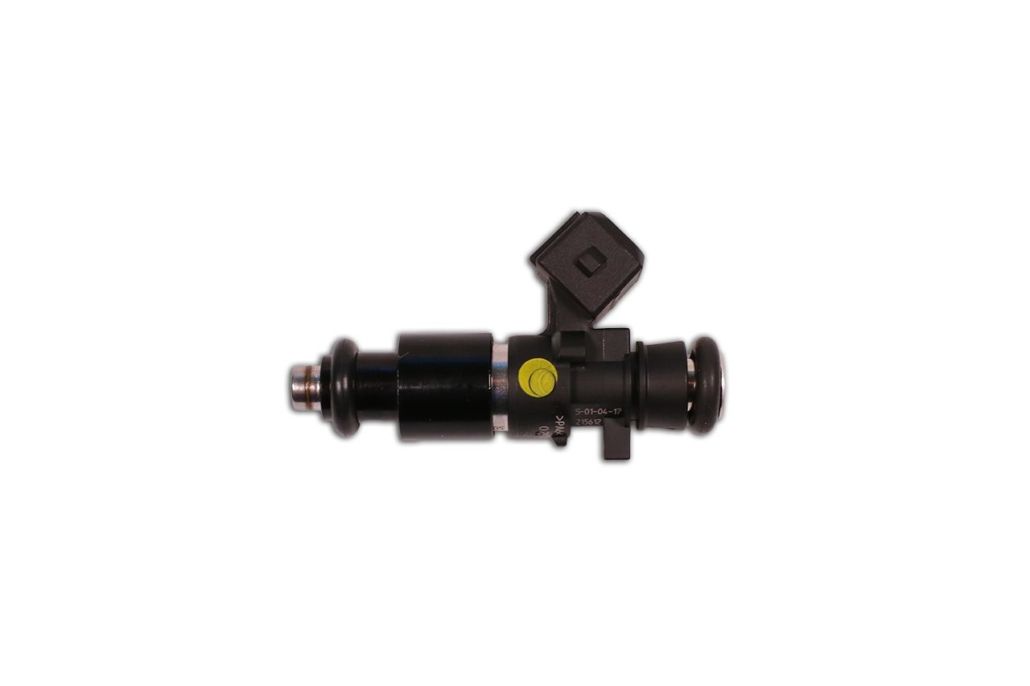

Bosch 980cc 1000cc 1150cc EV14S 3/4 Length Fuel Injector

Description

Genuine Bosch 980cc / 1000cc / 1100cc E85 safe EV14S 3/4 length Fuel Injector. These are excellent high flow fuel injectors, ideal for any 3/4 or full length application where E85 compatibility is required.

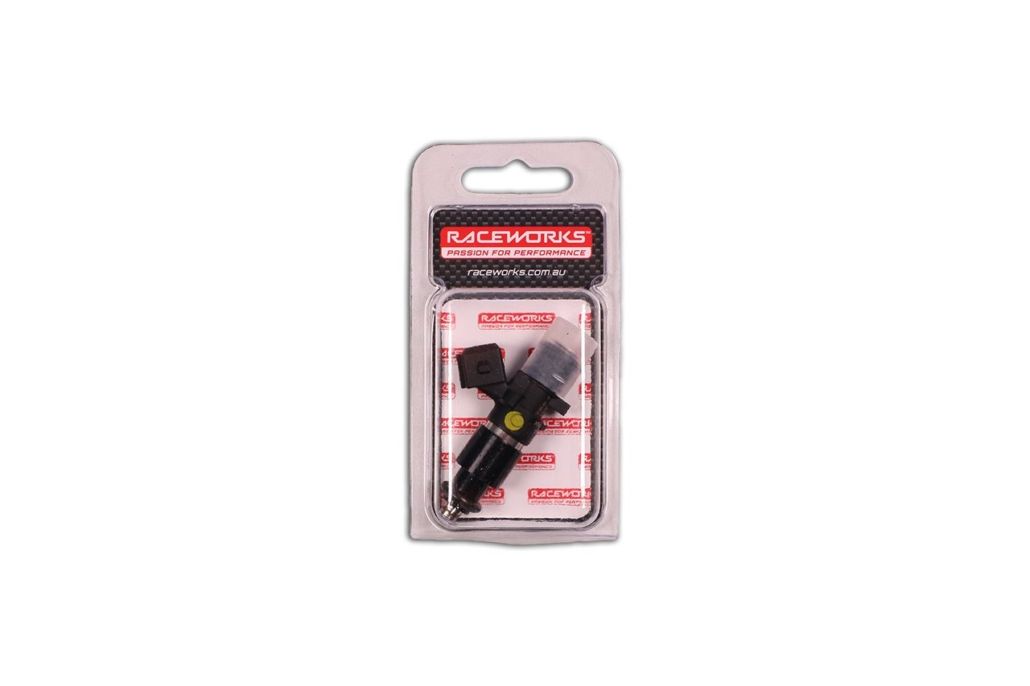

Genuine Bosch product, supplied with Raceworks nose sleeve and hologram for authenticity. Drop in replacement for direct fit to FG & FG X Turbo. Use these injector extensions when fitting to applications requiring full length injectors (eg. LS1, EA-BF Falcon with stock rail), or check our range of fuel rails which allow fitting without extensions. For FG NA conversions see the 980cc short injector and grab short to 3/4 extensions.

Specifications:

• Size: 980cc (92 lb/hr) @ 3 bar and 1150cc (105 lb/hr) @ 4 bar
• Length: EV14S 3/4 Length (55mm O-Ring to O-Ring)
• Type: EV14K body with EV14S sleeve and Bosch EV1 / Jetronic plug
• Impedance: 12.5 ohms
• Plug: Bosch EV1 Jetronic / Minitimer
• Top O-Ring: 14mm
• Spray Pattern: Wide Cone
• Spray Direction: Straight
• E85 Safe: Yes

The following plug and play injector data sheets are on our website:

• Injector Deadtime Charts
• Injector Size Chart
• 1100cc 4 Bar Ford Plug and Play Data
• 1100cc 4 Bar GM Plug and Play Data
• Ford & GM Plug and Play Data

All Raceworks products come with a 2 year warranty.

Bosch Part Number: 0 280 158 040

Manufacturer Part Number: INJ-213
