Walbro 460 / 450 lph Fuel Pump F90000267 w/ Fitting Kit

Description

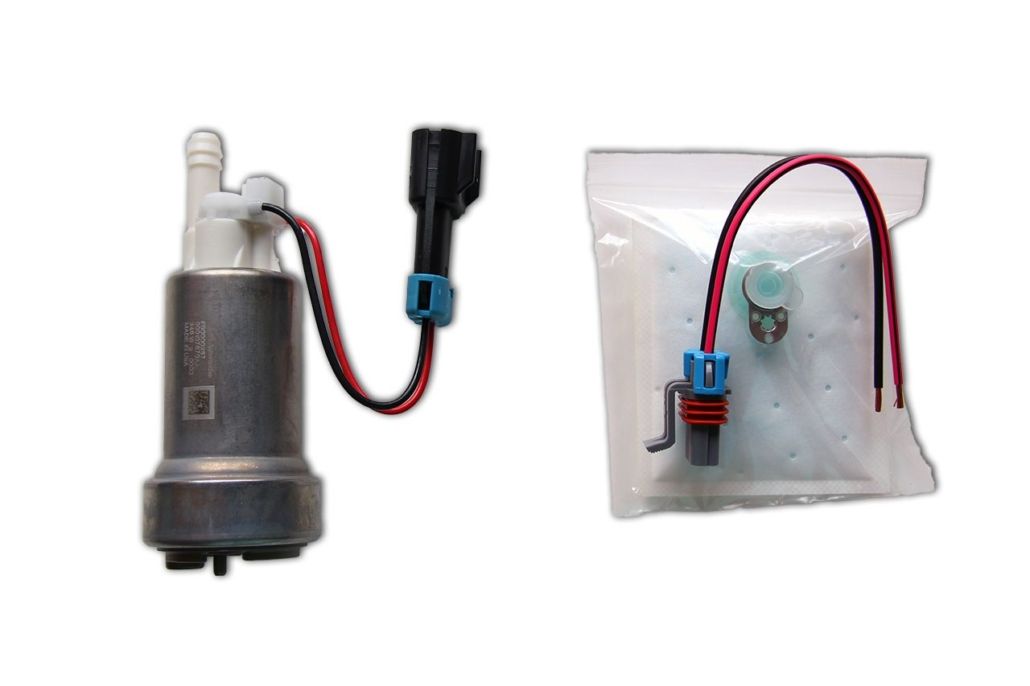

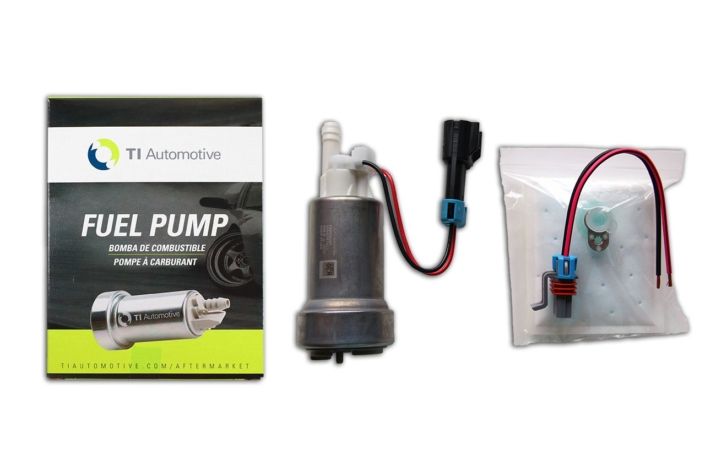

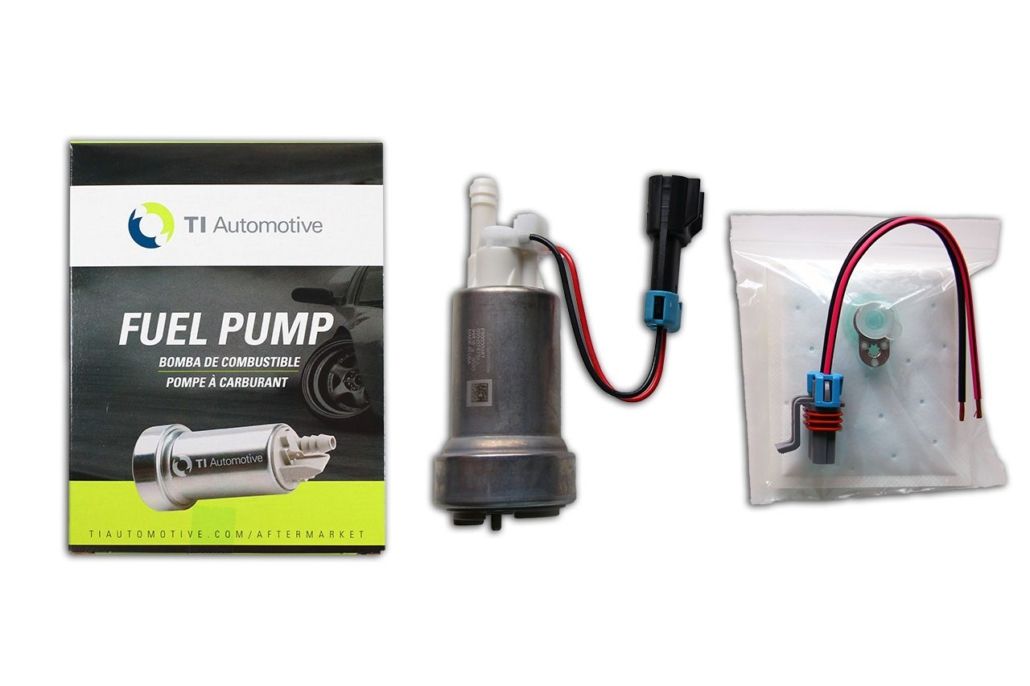

Walbro 460 lph Unleaded & E85 Safe in tank Fuel Pump. Comes complete with installation kit including fuel pump, wire harness, and pickup filter as pictured. This is a genuine locally delivered Walbro / TI Automotive fuel pump,  sourced directly from the Australian distributor.

The Walbro 460 / 450 lph fuel pump flows enough fuel to support over 750hp, and is ideal for high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 fuel pump won’t flow enough.  If you are running under 500hp on 98, see our other items for the Walbro GSS341 / GSS342 255 lph pumps which draw less current and produce less heat.

These F90000 series high flow & high pressure fuel pumps feature an impeller with two parallel rows of turbine blades feeding two high-pressure pumping channels. This modern design results in very low noise and current draw, and efficiency that’s 20% greater than conventional fuel pumps like the Bosch 044 (also available in our other listings).

For some other options consider the Bosch Motorsport BR540 or for high boost applications see the Walbro 460 High Pressure variant which has a higher pressure relief valve. We also stock the Walbro 525/535 for higher power applications.

Suits the following vehicles (along with many others) with minor cradle mods:

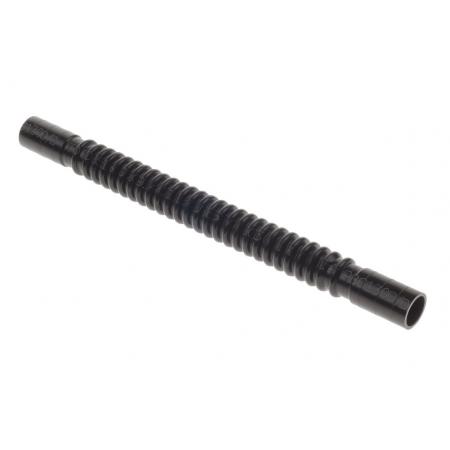

• BA, BF, FG, FG X Falcon & XR6 Turbo (you will need this plastic hose to fit to your MRA, or see here for a cart of parts required to fit the 460 to a BA-FG Sedan MRA)
• VT, VX, VY, VZ, VE, VF Commodore (you will need this plastic hose)
• Subaru WRX
• Nissan Skyline, Silvia, 180sx
• and many more.

Specifications

• Common names: Walbro 450, TIA485-2, GST-450, Walbro 465, 400E, Walbro 425, Walbro 430.
• Flow rate: 450lph advertised, 430lph @ 13.5v (3 bar)
• E85 Compatible: Yes
• Max current draw: 22A (15A average)
• Body Diameter: 39mm / 50mm
• Length: 131mm
• Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
• Pressure Relief: Opens 87psi (see F9000274 for 112psi high pressure 460 – needed at 25+psi boost)
• Check Valve: Yes (Inbuilt)

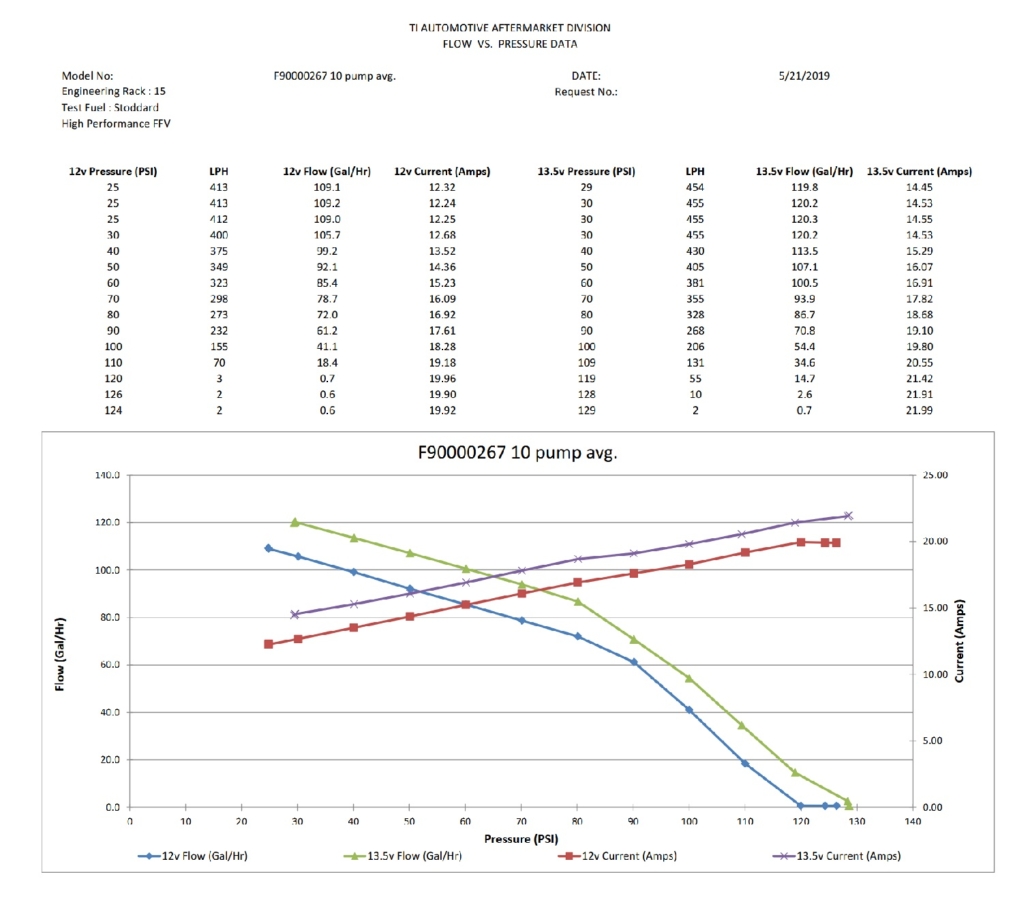

• Data Sheet: F90000267 flow chart

For accessories required to fit this pump such as submersible hose, plastic convoluted tube, crimp clamps, hose clamps, surge tanks, fuel regs, and PTFE hose fittings etc, browse our other listings. We also have high current bulkhead terminals and wiring kits in related items.

Walbro is now known as TI Automotive

For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. As of late 2019, these same pumps are branded with the TI Automotive name, carrying a legacy of more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect.

TI Automotive products are manufactured in their plant in Caro, Michigan in the USA. We source our pumps from an Australian wholesaler, and supply them with fuel pump fitting kits and strainers.

Walbro/TI Automotive Part Number: F90000267

Also Known As: EFP-287, Walbro 450
