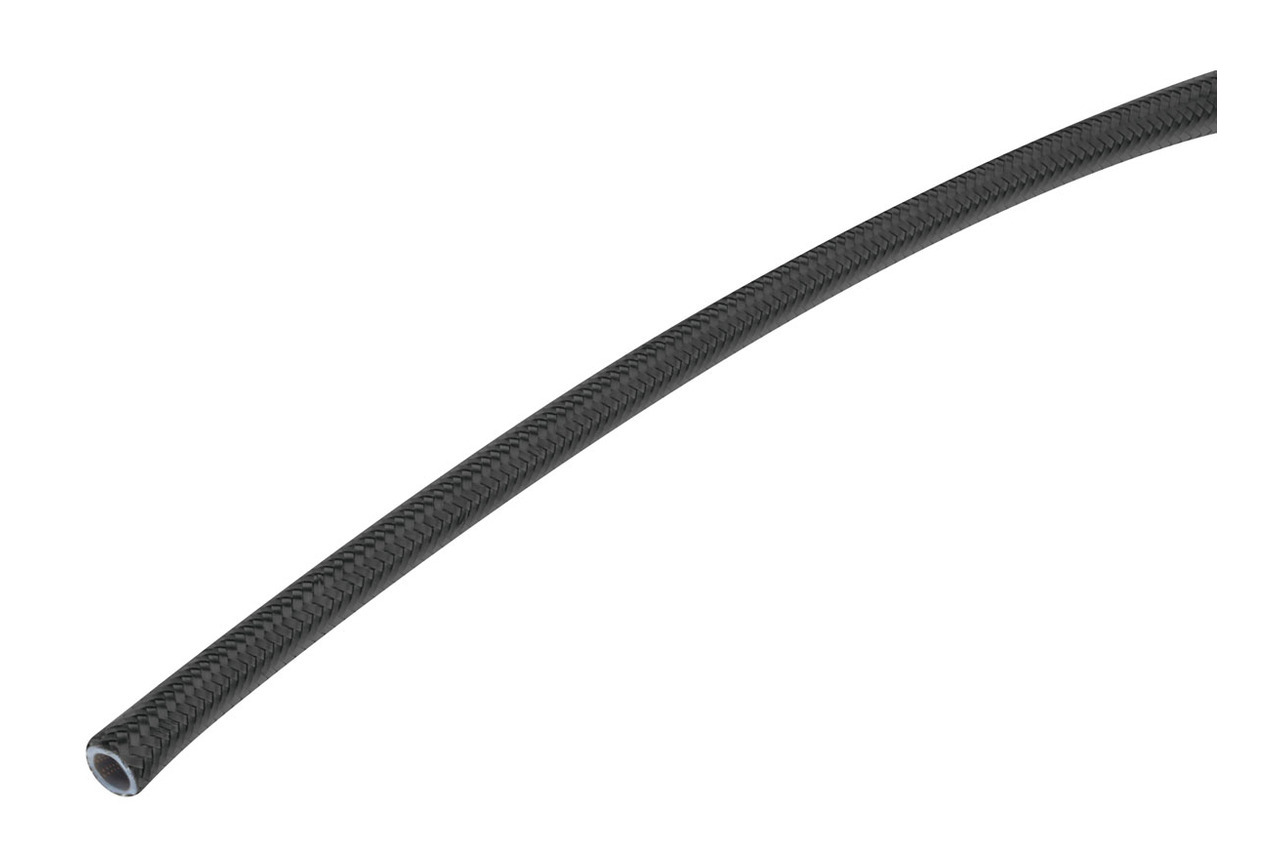

Raceworks AN-12 220 Series Black Metal Braided Teflon Hose – 1m

Description

Raceworks AN-12 220 Series Black Metal Braided Teflon Hose – 1m.

Raceworks 220 Series Teflon Black Metal Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube has an outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 220 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses.

Specifications:

• Temperature Range: -70°C to 250°C
• Fuel type: Ethanol & Methanol Safe
• Inside Diameter: 41/64″ / 16.2mm
• Outside Diameter: 49/64″ / 19.3mm
• Burst Pressure: 1500psi
• Weight per Metre: 242g
• Radius bend: 4.53″ / 115mm

All Raceworks products come with a 2 year warranty.

Raceworks Part Number: RWH-220-12-1M

Also Known As: AF200-12-1MBLK, PFE200-12BLK
