BA BF Falcon Barra 4L XR6 Turbo Ute Fuel Pump Assembly MRA

Description

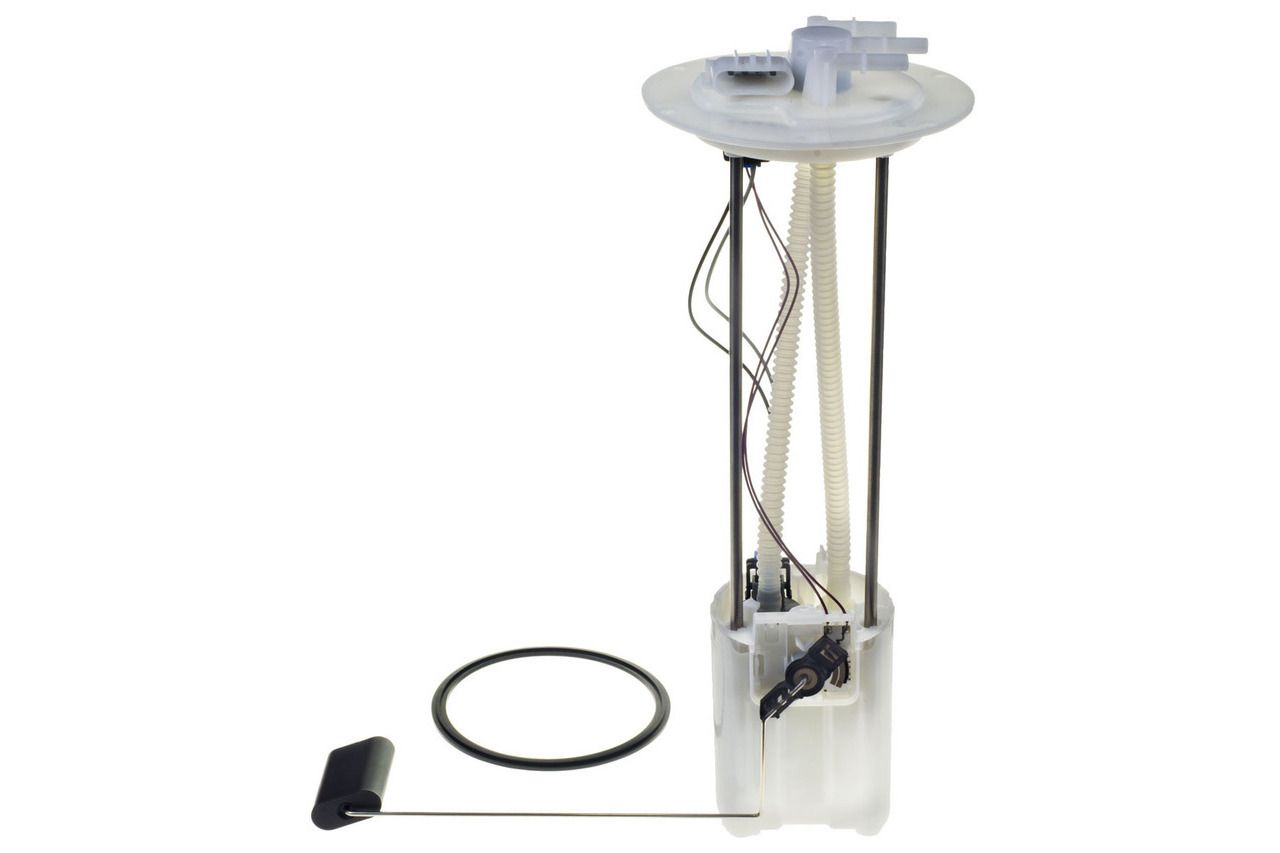

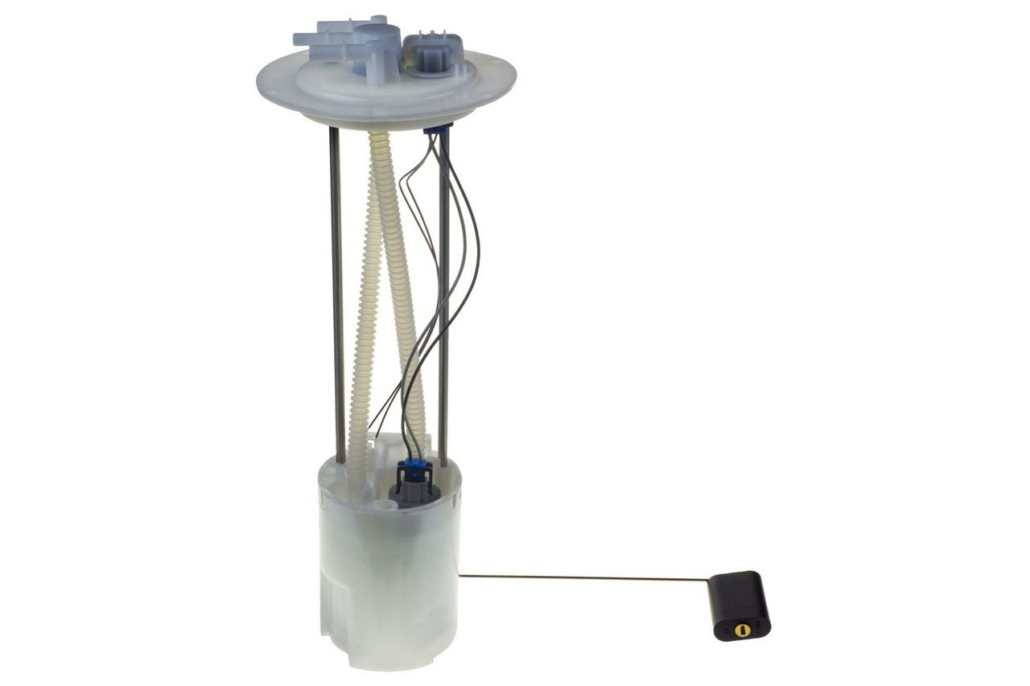

BA BF Falcon Barra 4L XR6 Turbo XR8 GT Ute MRA w/ Fuel Pump.

These Turbo / V8 / FPV MRAs (Modular Reservoir Assembly’s) have a higher flowing pump that flows 150lph. Can be retrofitted with a 255 or 460lph pump, please contact us before ordering if you would like us to do this.

Suits BA / BF Mk1 Falcon (<2007), XR6 Turbo, Typhoon, GT, Force 6 and Force 8 Ute only.

Also suits XT, XR6, Boss 260 and 3v 5.4L V8 models.

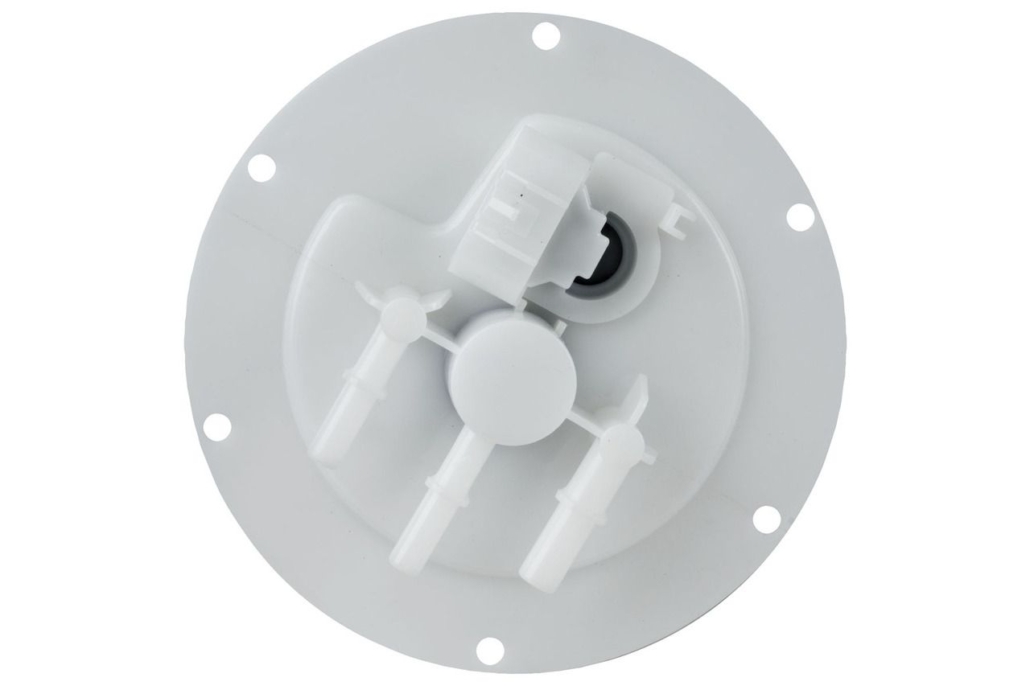

Ideal for EFI conversions where a return system is needed in a high/narrow tank, these MRAs have a fuel level float and 3 ports, when facing right:

• Output (to engine) – 3/8″ 9.5mm quick connect
• Fuel Tank Breather (to charcoal canister) – 5/16″ 8mm quick connect
• Return (from engine) – 5/16″ 8mm quick connect

Installation height is tbc. See related listings for CPS-209 connector.

Icon Part Number: EFP-126M
