Description

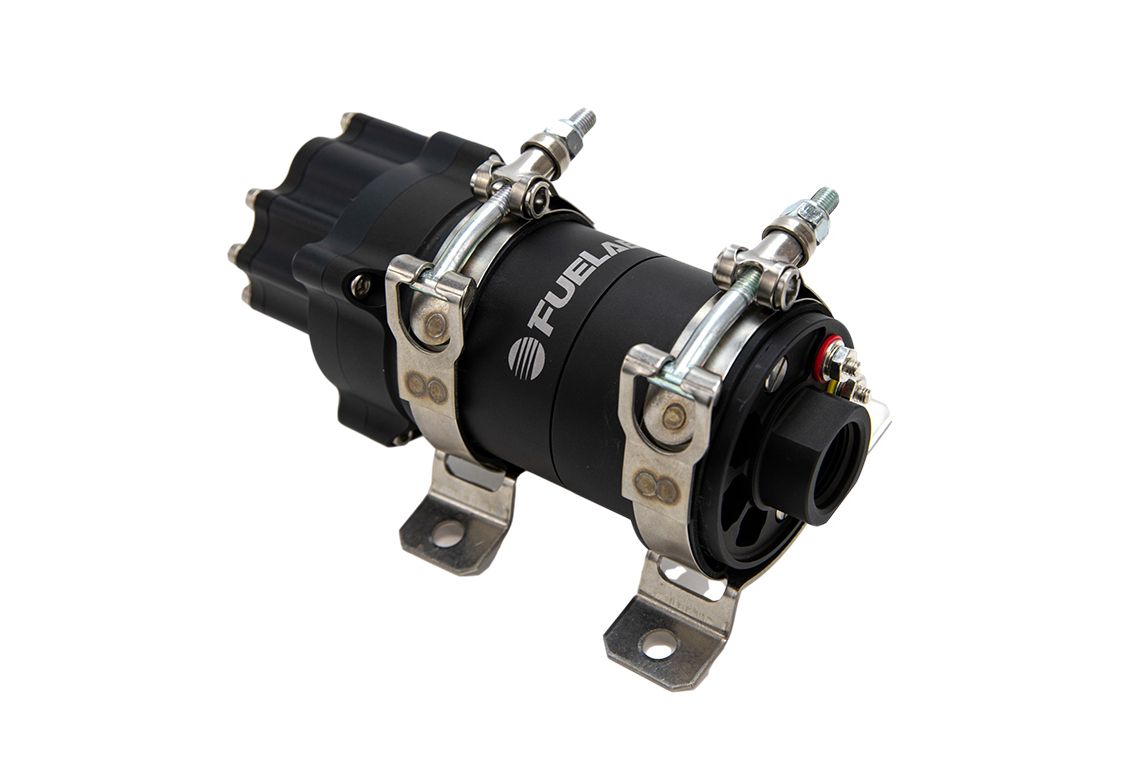

Fuelab 40501 PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump. 5.5 GPM @ 45PSI, 100 PSI MAX – Rated up to 3600+HP – Power and efficiency at it’s best!
ATTENTION: THE 40501 PRO SERIES FUEL PUMPS MUST BE USED WITH REGULATORS WITH A RETURN CAPACITY OF 10 GAL/MIN OR MORE !!! FUELAB 565XX SERIES RECOMMENDED.
Pump Features
- Compatible with gasoline, diesel, ethanol and methanol
- High precision spur gear pumping mechanism
- -12AN Inlet and -10AN outlet Ports
- Backed by a limited lifetime warranty
Motor Features
- Lightweight super-efficient DC brushless motor reduces current draw
- Low mass rotor for high speed reaction to changes in speed and flow
- Powerful high flux Neodymium rare earth magnets
- No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
- Wet motor design, no dynamic shaft seals that can wear out
Electronic Features
- Internal Speed Controller for Variable flow operation
- 12 to 24 volt vehicle electrical system compatibility
- Accepts PWM input for speed control
- No expensive add-on voltage regulators or pump controllers required!
- Continuous duty – motor speed can be adjusted to meet fuel demand
Construction Features
- Compact, powerful and lightweight – 3.5lbs, overall length 7.2″, diameter 3.31″
- Billet Aluminum construction with Anodize per MIL-A-8625, Type II
- High quality T-Style Mounting Brackets included
- Long Life multi-fuel compatible Fluorosilicone static seals
Available in MATTE BLACK ONLY
Manufacturer Part Number: 40501
