Description
Walbro / TI Automotive 535 / 540 lph High Pressure Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.
Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.
These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency that’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023 (also available in our other listings).
The Walbro 540lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.
Suits the following vehicles (along with many others) with minor cradle and wiring mods:
- BA, BF, FG, FG X Falcon & XR6 Turbo (you will need this plastic hose)
- VT, VX, VY, VZ, VE, VF Commodore
- Subaru WRX
- Nissan Skyline, Silvia, 180sx
- and many more.
Specifications
- Common names: Walbro 535, Walbro 540 High Pressure, Hellcat
- Flow rate: 540lph @ 13.5v (3 bar)
- E85 Compatible: Yes
- Max current draw: 25A (Make sure your wiring can handle this beast!)
- Body Diameter: 39mm / 50mm
- Length: 131mm
- Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
- Pressure Relief: 112psi (see other items for 112psi high pressure version)
- Check Valve: No (see other items for 525 Hellcat pump with check valve)

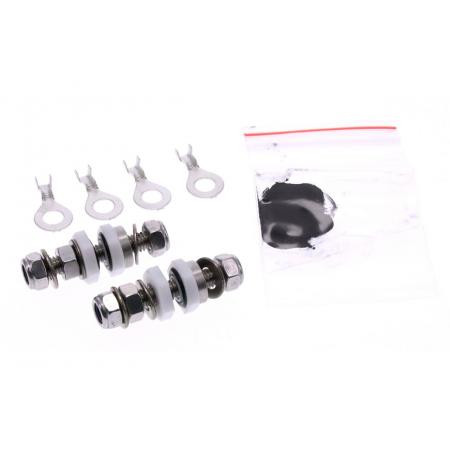

For accessories required to fit this pump such as Submersible hose, convoluted tubing, crimp clamps, ring clamps, surge tanks, fuel regs, and teflon hose fittings etc, browse our other listings. We also have high current bulkhead terminals and wiring kits in related items.
Walbro is now known as TI Automotive
For decades, Walbro automotive fuel pumps have been manufactured by TI Automotive. As of late 2019, these same pumps are branded with the TI Automotive name, carrying a legacy of more than 60 years of manufacturing the most popular drop-in fuel pumps, with the same performance, quality and reliability that you have come to know and expect.
TI Automotive products are manufactured in their plant in Caro, Michigan in the USA. We source our pumps from a registered Australian wholesaler, deliver them with holograms for authenticity and supply them with genuine fuel pump fitting kits and strainers.
Walbro/TI Automotive Part Number: F90000295
Also Known As: EFP-622
