FG Falcon Barra 4L XR6 Turbo Ute Fuel Pump Assembly MRA

Description

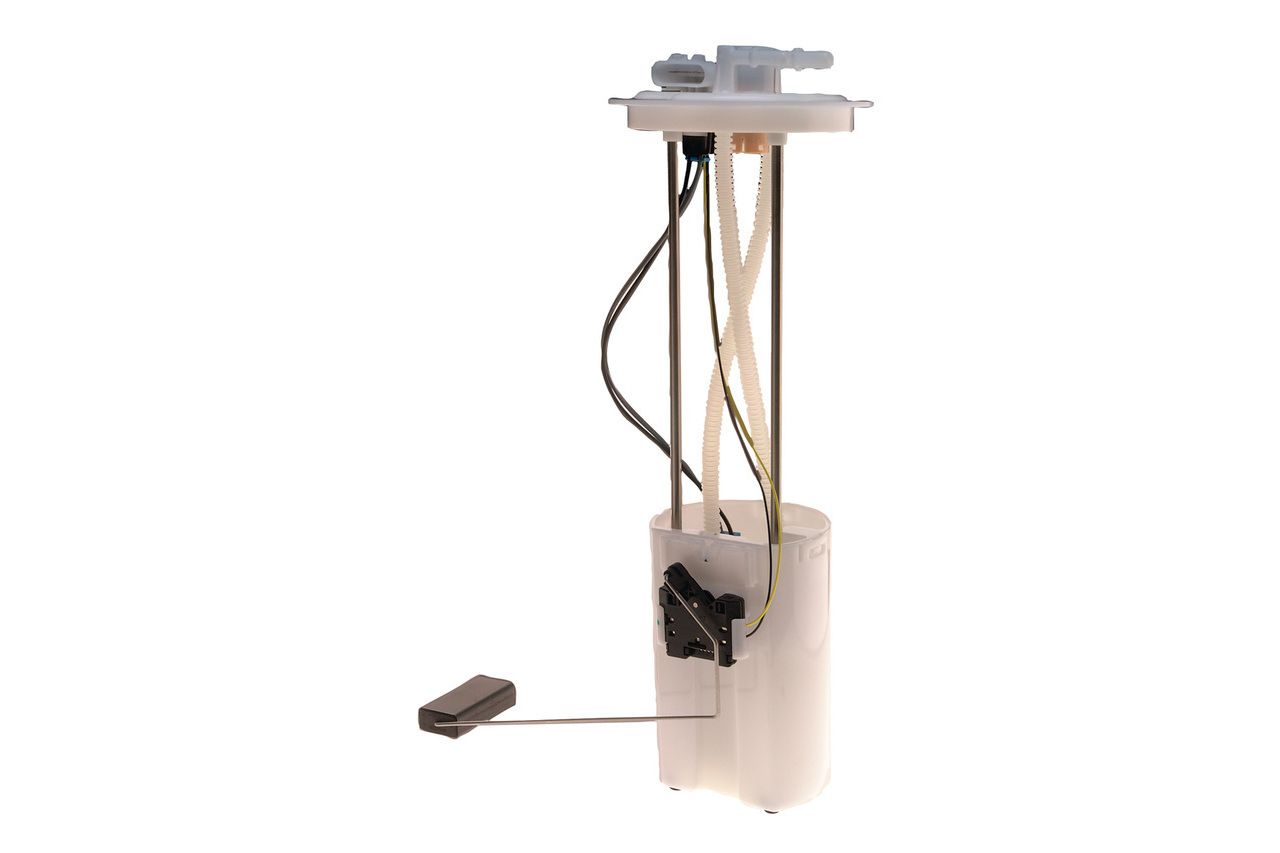

FG Falcon Barra 4L XR6 Turbo XR8 FPV GT Ute MRA w/ Fuel Pump.

These Turbo / V8 / FPV MRAs (Modular Reservoir Assembly’s) have a higher flowing pump that flows 150lph but will work fine in all standard vehicles. Can be retrofitted with a 255 or 460lph pump, please contact us before ordering if you would like us to do this.

Suits BF Mk2 Falcon (>2007), FG Falcon, FG X Falcon, XR6 Turbo, F6, FPV GS, GT, Sprint and Typhoon Ute only.

Ideal for EFI conversions where a return system is needed, these MRAs have a fuel level float 3 ports, when facing right:

• Output (to engine) – 3/8″ 9.5mm quick connect
• Fuel Tank Breather (to charcoal canister) – 5/16″ 8mm quick connect
• Return (from engine) – 5/16″ 8mm quick connect

Installation height is tbc. See related listings for CPS-209 connector. See other listings for MRA kits with weld rings.

Icon Part Number: EFP-269M
