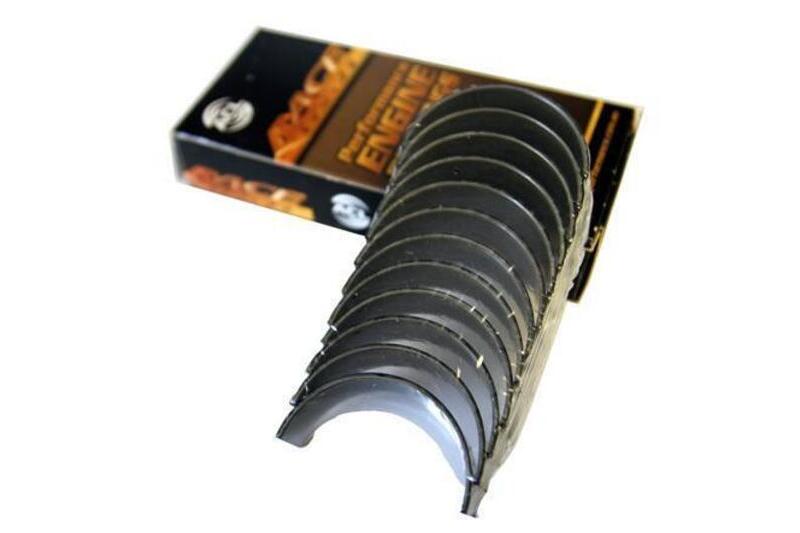

ACL Main Bearings suit Nissan CA16 CA18DE/T CA18 CA20E/S

Description

ACL Main Bearings suit Nissan CA16 CA18DE/T CA18 CA20E/S. Available in STD, .025, .25, and .50 sizes. We ship STD unless specified at checkout.

Specifications:

• Material Race Series (Tri-Metal)
• Position 1,2,4,5
• Std Shaft Diam 2.0847″/2.0852″ (52.951mm/52.964mm)
• Oil Clearance TBA
• Maximum Wall 0.0719″ (1.827mm)
• Housing Bore 2.2305″/2.2310″ (56.654mm/56.667mm)
• Max Length 0.7870″ (20.000mm)
• Position 3
• Std Shaft Diam 2.0847″/2.0852″ (52.951mm/52.964mm)
• Oil Clearance TBA
• Maximum Wall 0.0721″ (1.832mm)
• Housing Bore 2.2305″/2.2310″ (56.654mm/56.667mm)
• Max Length 1.1000″ (27.950mm)

Suits the following engines:

• Nissan CA16 CA16S 1599cc 4 Cyl SOHC 8V Carb ULP
• Nissan CA16DE 1599cc 4 Cyl DOHC 16V EFI ULP
• Nissan CA18 CA18S 1810cc 4 Cyl SOHC 8V ULP & Turbo
• Nissan CA18DE 1810cc 4 Cyl DOHC 16V EFI ULP
• Nissan CA18DET 1810cc 4 Cyl DOHC 16V Turbo ULP
• Nissan CA20E 1975cc 4 Cyl SOHC 8V EFI ULP
• Nissan CA20S 1975cc 4 Cyl SOHC 8V Carb ULP
• Nissan CD17 1682cc 4 Cyl SOHC 8V Diesel
• Nissan CD20 1975cc 4 Cyl SOHC 8V Diesel
• Nissan CD20T CD20Ti 1975cc 4 Cyl SOHC 8V Inj/T/D

Manufacturer Part Number: 5M1633H-STD
