Raceworks 39mm Fuel Pump Hanger Adapter to suit Walbro Pumps in 044 Surge Tanks ALY-125BK

Description

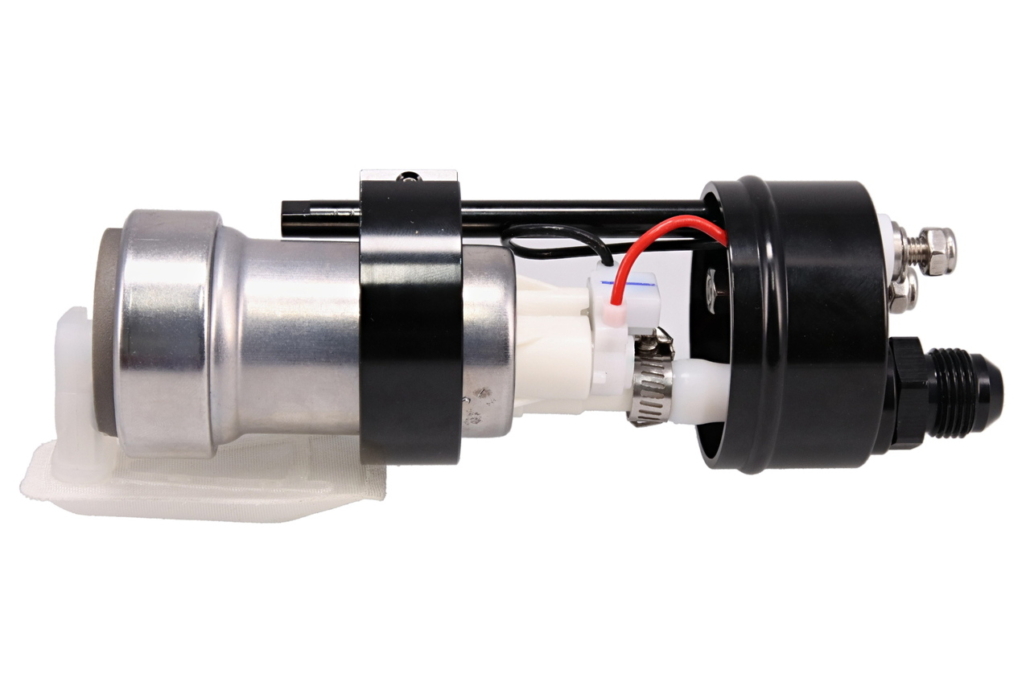

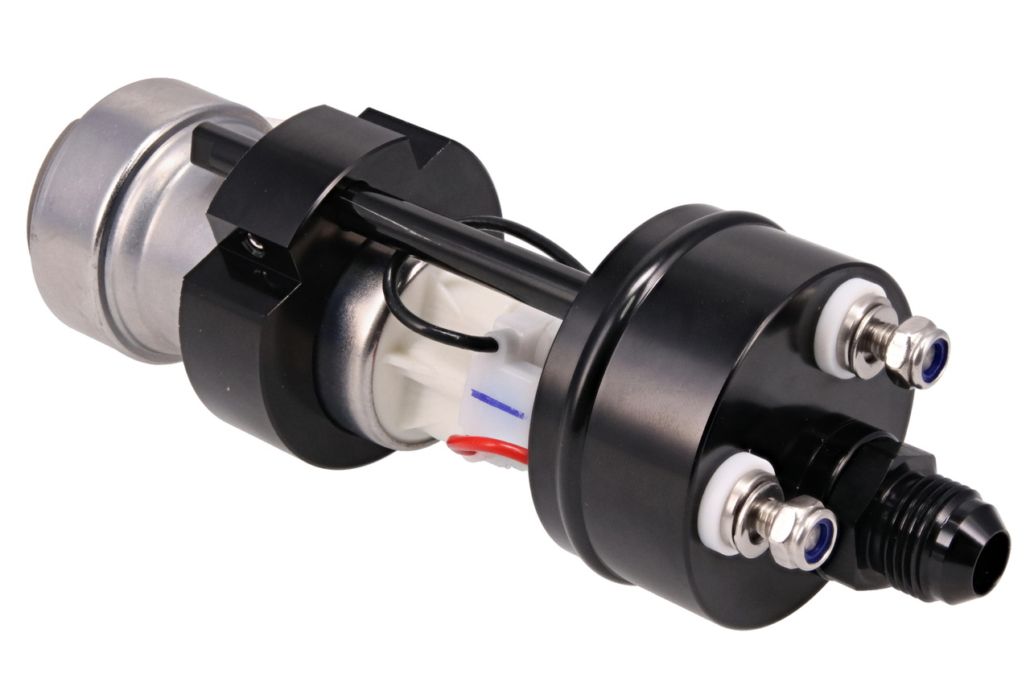

Raceworks 39.5mm Fuel Pump Hanger Adapter to suit Walbro and Pierburg Style Pumps in all 044 Surge Tanks. Designed to replace an 044 with a modern, quiet, efficient, high flow pump. Includes Hanger, PTFE Hose, Clamps.

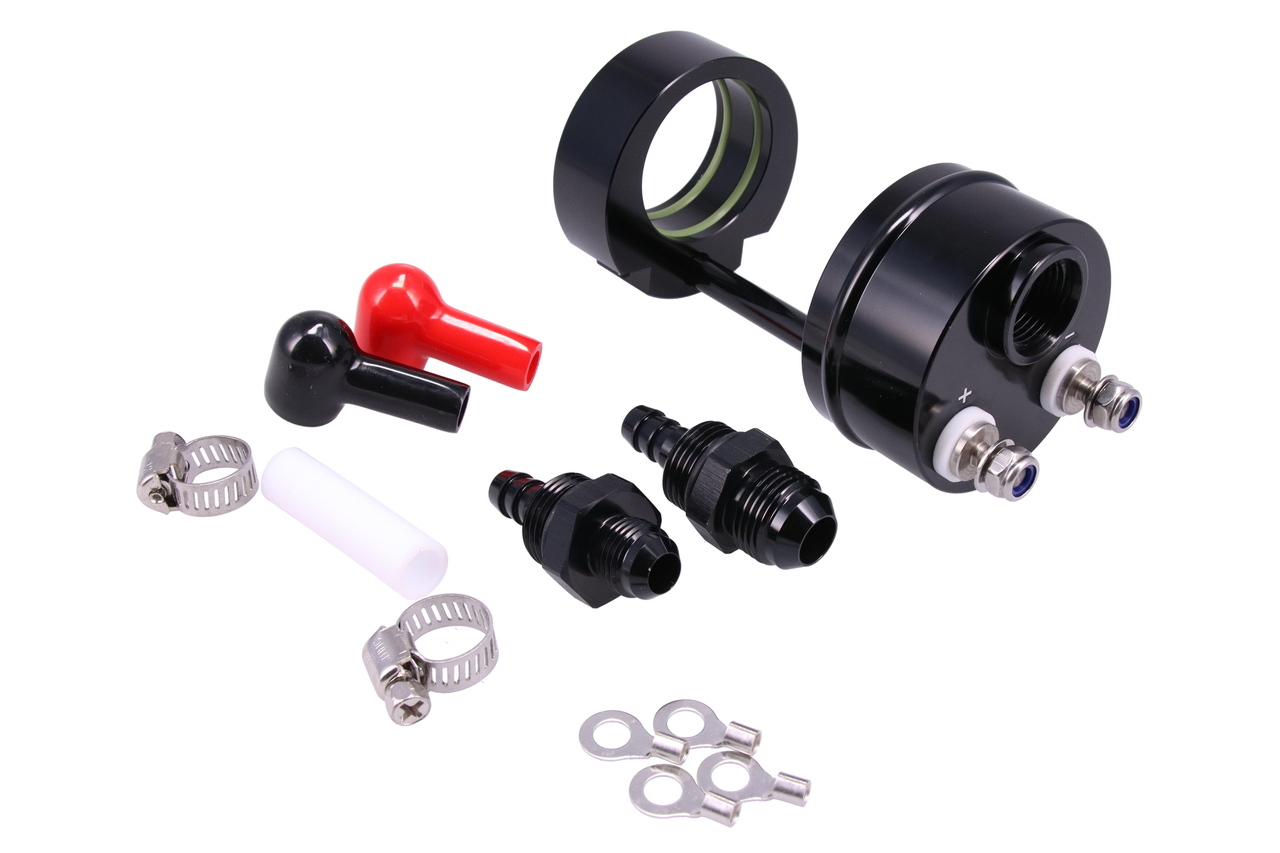

This fuel pump hanger uses a unique design to replace the now obsolete Bosch 044 with a modern high flow pump such as a Walbro 460 or 525. Designed for ALY-121BK, ALY-232BK, and ALY-233BK but will fit any brand of surge tank designed for an 044. Includes Hanger, PTFE Hose, Clamps. Hanger has bulkhead terminals to allow internal mounting of Walbro 460 & 525 lph style pumps.

Specifications:

• AN-8 ORB outlet
• Includes AN-6 and AN-8 outlet fittings with a 10mm internal Barb
• Intank hose, clamps, electrical terminals and boots included

Suits the following pumps:

• Raceworks 340lph Fuel Pump – 39mm E85 Safe Walbro 255 GSS342 Equivalent – EFP-500
• Walbro 460 lph Fuel Pump F90000267 w/ Fitting Kit
• Walbro 460 lph Fuel Pump High Pressure F90000274
• Walbro 525 lph Fuel Pump Kit F90000285
• Walbro 535 / 540 lph Fuel Pump High Pressure F90000295

Raceworks fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 60mm and 43.5mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.

All Raceworks products come with a 2 year warranty.

Raceworks Part Number: ALY-125BK
