Description
Raceworks Steel Tank Weld In VE MRA EFI Conversion Kit (Returnless). Suitable for retrofitting into an older Steel tank. Dead Head style system. 4 Bar (60psi) Fuel Pressure regulator built into MRA. Spring loaded to ensure that it sits on the bottom of the fuel tank, suitable for tanks 155mm to 180mm High. Pump suitable for up to 500hp.
Specifications:
- Fuel Level sender resistance: 40-250 Ohms
- Flow rate: 115LPH @ 4 Bar (9A)

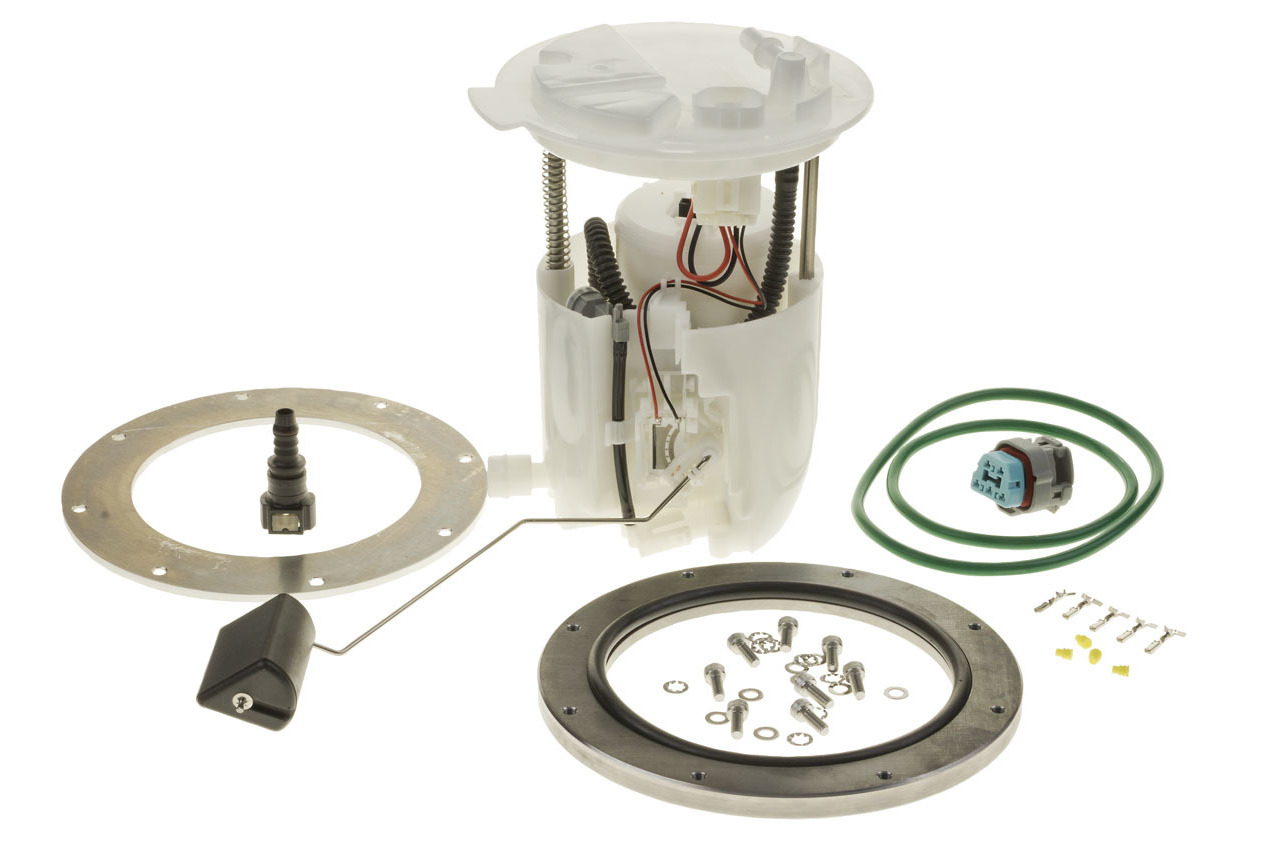

- Includes: Weld on / bolt on ring, Top clamp ring, stainless cap screws and washers, fuel safe seal, 3/8″ Quick Disconnect to barb Fitting and Electrical Connector
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: FSA-502
Alex Miles (verified owner) –
Did the job for what I needed.
Come with a decent weld on ring that’s thick enough it won’t warp when tig welding, probably could mig it.
I purchased a 3/8 to AN quick connect fitting instead of using the barb fitting that was supplied.
