Bosch 3 Channel Igniter Module

Description

Bosch 3 Channel Igniter. See CPS-021 for connector.

T.I. Performance offer a comprehensive range of connector plug and pin sets, adapters and extensions to complement our range of sensors and ECUs. It doesn’t take long for spliced, crimped and soldered wires to make a mess of your engine bay; why not do it right the first time? In addition to raw plug and terminal kits, we offer pre-made OE quality extensions for oxygen sensors in aftermarket headers, and plug conversion adapters for our high performance injectors. Never cut and splice again – just plug and play!

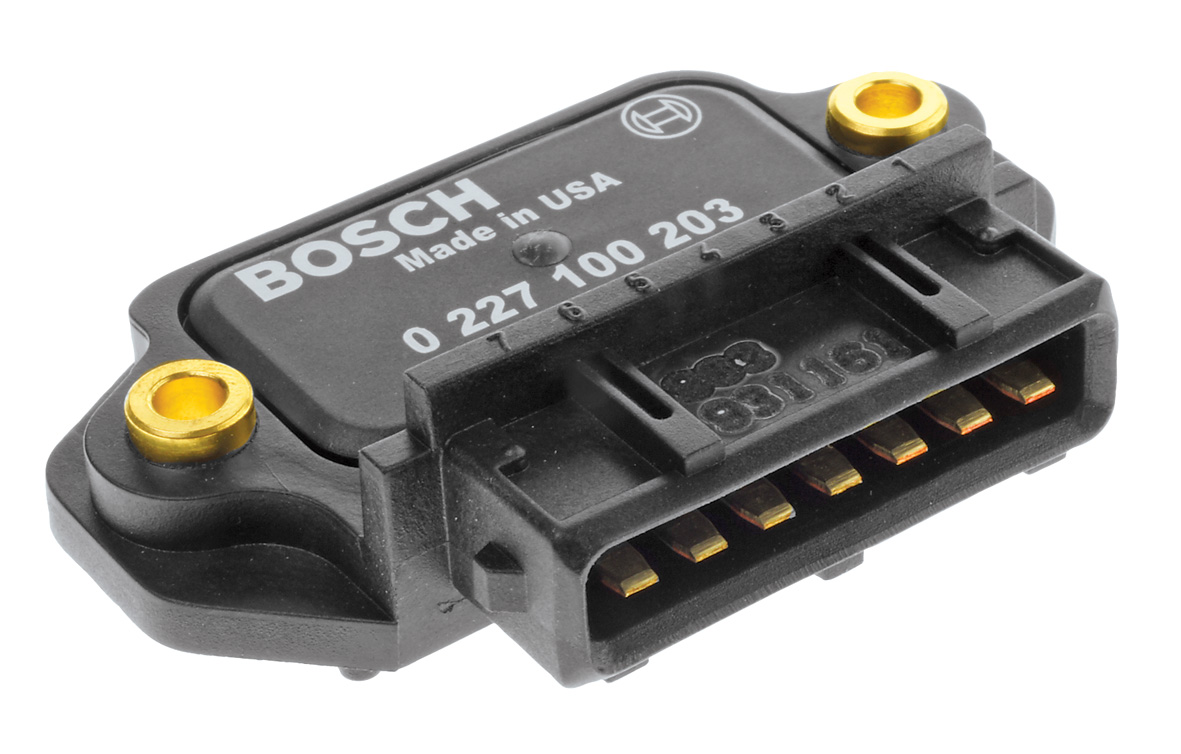

This genuine Bosch ignition coil igniter module is perfect to use with any 3 cylinder or 6 cylinder wasted spark engine such as the EF & AU Falcon 4L SOHC and Intech, allowing you to keep the factory ‘dumb’ coil setup when switching to an Aftermarket ECU such as a Haltech.

This module allows ECU controlled dwell (charges when trigger goes high, fires when low). Requires a heatsink.

Also known as: BIM203, MOD-080

Bosch Part Number: 0 227 100 203
