Description

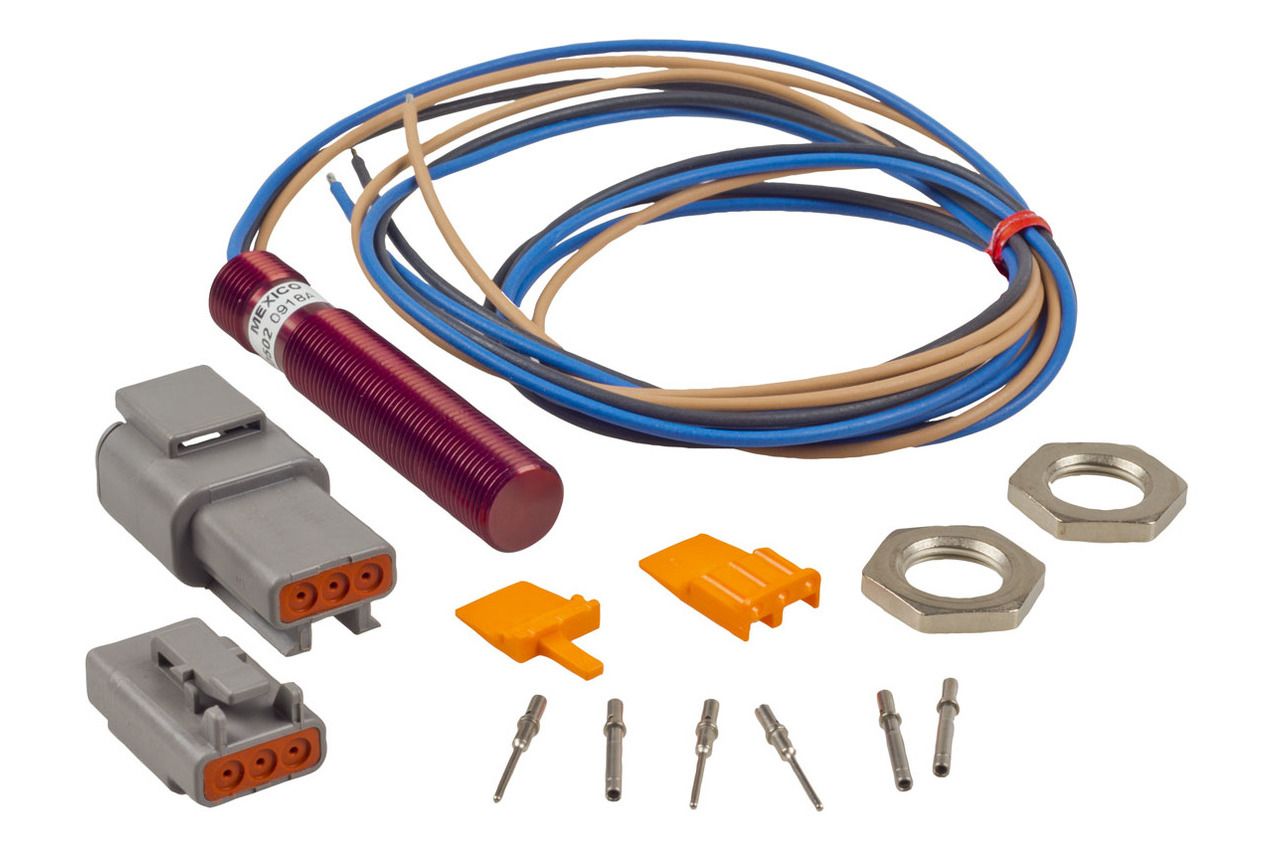

ZF Cherry Red Hall Effect Sensor Kit. Genuine. Includes Plug And Pins. See other listings for trigger wheels. Also known as HT-010610. M12x1.0 thread.
Specifications:
- Air Gap: 1.5mm (between sensor tip and top of tooth)
- Max Tooth Frequency: 15 Khz
- Operating Voltage: 5VDC 24VDC
- Operating Temperature: -40degC +125DegC
- Output Signal Type: Open Collector
Full spec sheet: LR-RWORKS-DATA-HAL-501.pdf
ZF Cherry Part Number: GS100502
Also Known As: HT-010610
