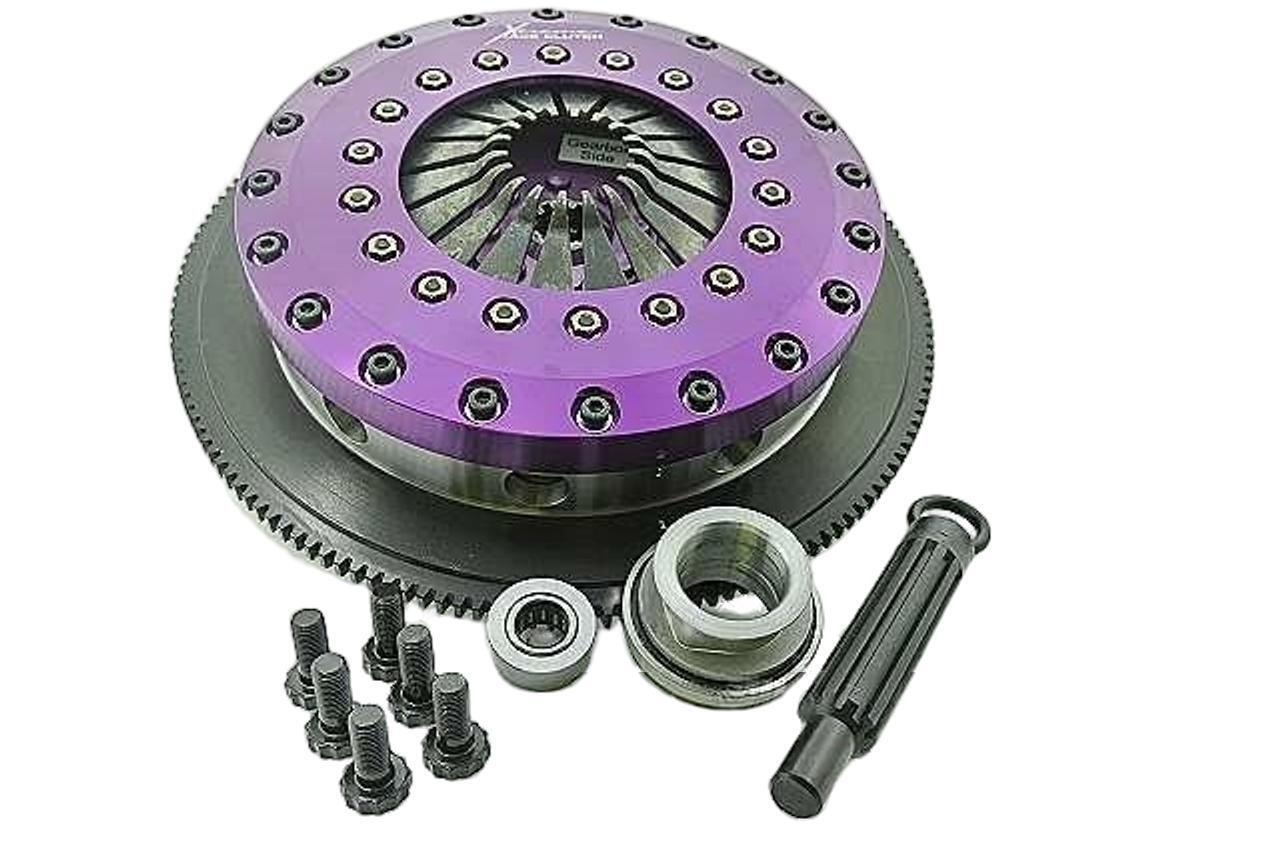

Xtreme Performance Clutch Kit 230mm Twin Solid Ceramic Inc Single Mass Flywheel Track Use suit EB ED EF EL AU Falcon XR8 Windsor V8

Description

Xtreme Performance Clutch Kit 230mm Twin Solid Ceramic Inc Single Mass Flywheel Track Use suit EB ED EF EL AU Falcon XR8 Windsor V8.

Xtreme Clutch Performance Clutches are built using the highest quality components, and undergo extensive testing to ensure they live up to their name. With friction disc options available from standard, through organic and heavy duty ceramic, along with pressure plates to suit even the highest power applications, flywheels, replacement bolts, and more, Xtreme Clutch have you covered. T.I. Performance proudly stocks the Xtreme Clutch range.

Suit Ford V8 Windsor E Series
Pivot Ball to suit – APBFD01
Clutch Fork to suit – ATFFD26

Suits the following vehicles:

• Ford V8 Windsor E Series

Specifications:

• Xtreme Clutch Kit-500 Series (230mm Twin Solid Ceramic-Track Use)
• Pivot Ball to suit – APBFD01
• Clutch Fork to suit – ATFFD26
• Flywheel Step (mm): +3.8
• Clutch Disc Diameter (mm): 230
• Clutch Disc Spline Count: 10
• Clutch Disc Spline Diameter (mm): 27.0
• Disc Type: Solid
• Friction Material: Ceramic
• Multiplate: Twin
• Recommended Use: Motorsport
• Torque (Nm) Inc FOS: 1830
• Torque (ftlbs) Inc FOS: 1350
• Spigot Bush/Bearing Included: Yes
• Aligning Tool Included: Yes
• Flywheel Included: Single Mass
• Flywheel Bolts Included: Yes
• Pressure Plate Bolts Included: Yes
• Spline Grease Included: Yes
• Transport Weight (kg): 20.0

Manufacturer Part Number: KFD23547-2E
