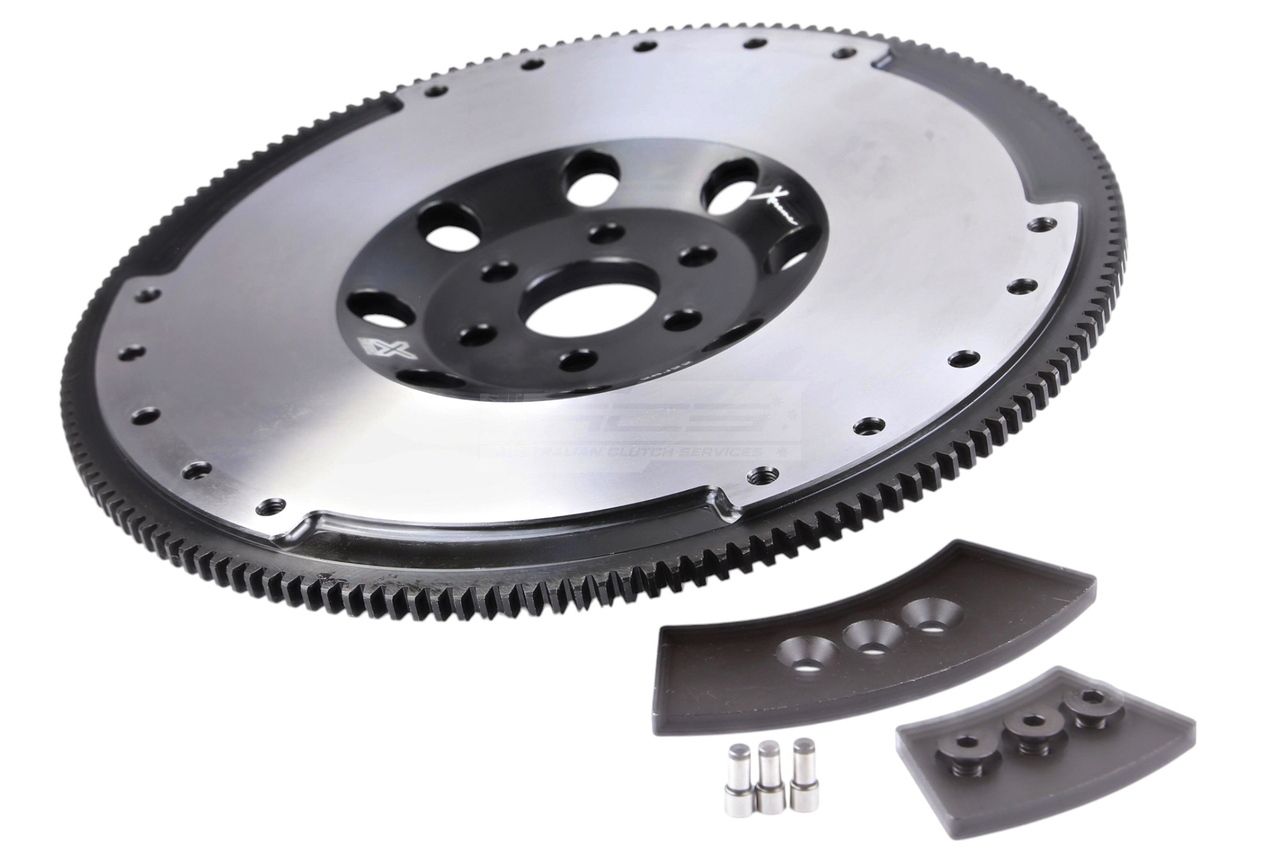

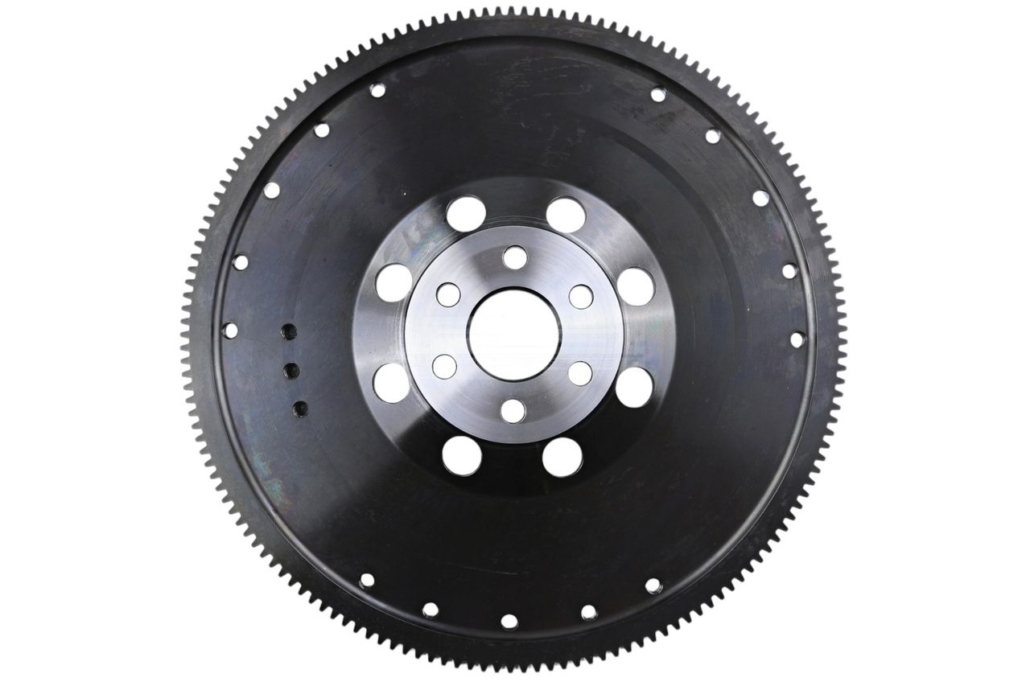

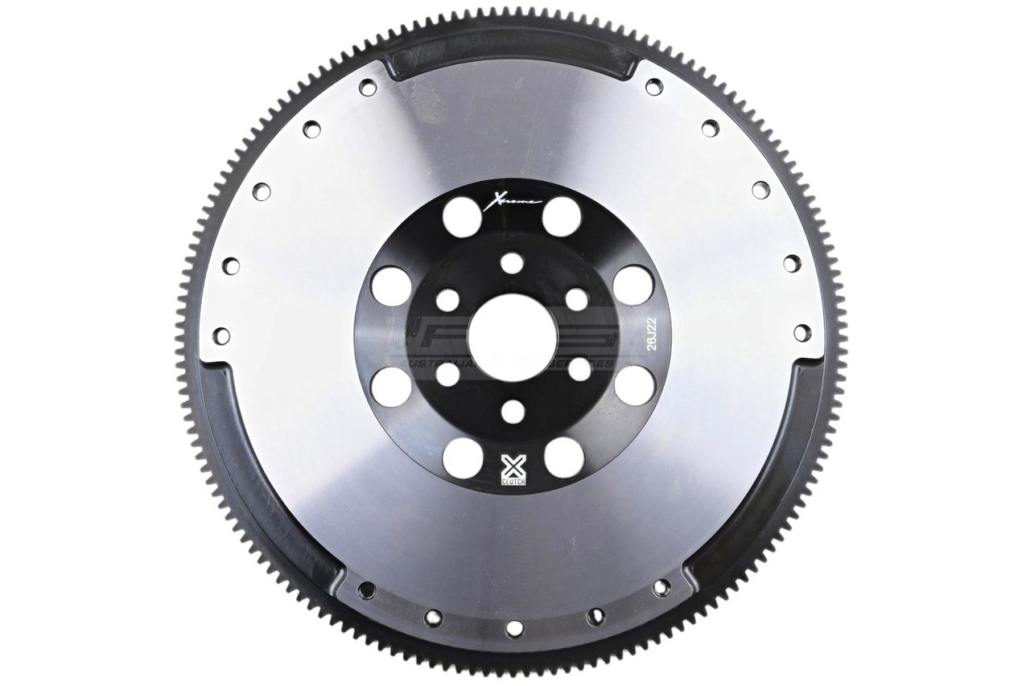

Xtreme Lightened Chromoly Flywheel suit Ford EB ED EF EL AU XR8 Windsor V8

Description

Xtreme Lightened Chromoly Flywheel suit Ford EB ED EF EL AU XR8 Windsor V8.

Use the smaller 28oz (79mm) counterweight in Ford Windsor / Cleveland 1962 – 1985 Carburetor 289-302-351ci.
Use the larger 50oz (140mm) counterweight in Ford Windsor 1986 – 2001 Fuel Injected V8.
For internally balanced engines the counterweights are not necessary and do not need to be used.

See notes about Weights

Flywheel Step: Flat

Specifications:

• Flywheel Step (mm): Flat
• Ring Gear Teeth Count: 157
• Outside Diameter: 336mm (including teeth)
• Flywheel Mounting Holes: 6
• Flywheel Mounting Hole Diameter (mm): 11.4
• Flywheel Type: Single Mass
• Material: Lightweight Chromoly
• Transport Weight (kg): 5.9

Manufacturer Part Number: FFD001CL
