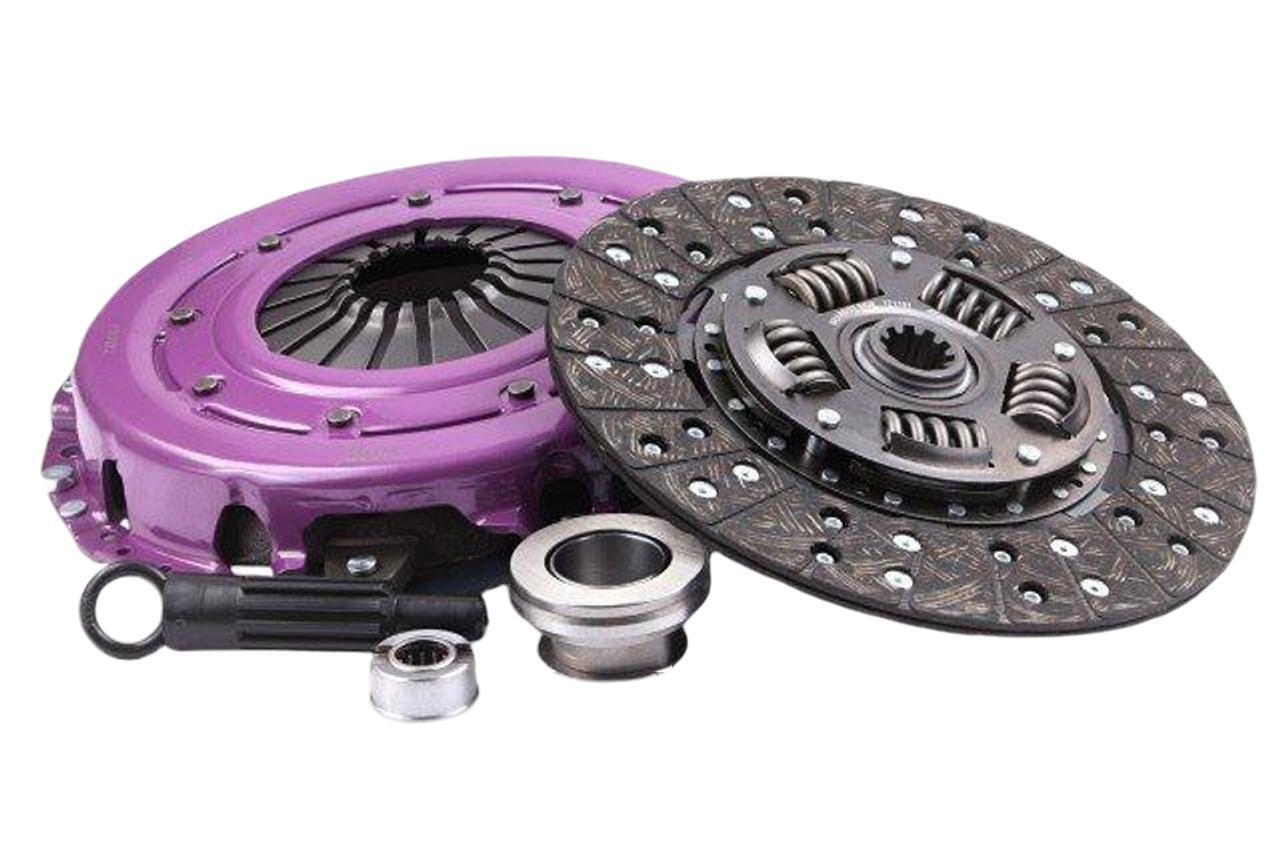

Xtreme Heavy Duty Clutch Kit Sprung Organic suit EB ED EF EL AU Falcon XR8 Windsor V8

Description

Xtreme Heavy Duty Clutch Kit Sprung Organic suit EB ED EF EL AU Falcon XR8 Windsor V8.

Xtreme Clutch Performance Clutches are built using the highest quality components, and undergo extensive testing to ensure they live up to their name. With friction disc options available from standard, through organic and heavy duty ceramic, along with pressure plates to suit even the highest power applications, flywheels, replacement bolts, and more, Xtreme Clutch have you covered. T.I. Performance proudly stocks the Xtreme Clutch range.

PIVOT BALL TO SUIT – APBFD01
CLUTCH FORK TO SUIT – ATFFD26

Suits the following vehicles:

• Ford EB ED EF EL AU Falcon XR8 Windsor 5L V8
• Also suits Mustang GT/LX 302 5L V8

Specifications:

• Xtreme Clutch Kit-100 Series (Sprung Organic)
• PIVOT BALL TO SUIT – APBFD01
• CLUTCH FORK TO SUIT – ATFFD26
• Flywheel Step (mm): Flat
• Clutch Disc Diameter (mm): 268
• Clutch Disc Spline Count: 10
• Clutch Disc Spline Diameter (mm): 27
• Disc Type: Sprung
• Friction Material: Organic
• Stage: 1
• Recommended Use: Street
• Clamping Force % Increase: 25%
• Torque (Nm) Inc FOS: 560
• Torque (ftlbs) Inc FOS: 410
• Spigot Bush/Bearing Included: Yes
• Aligning Tool Included: Yes
• Spline Grease Included: Yes
• Transport Weight (kg): 12

Manufacturer Part Number: KFD27001-1A
