Windsor SBF 347 Street Cast Stroker Kit

Description

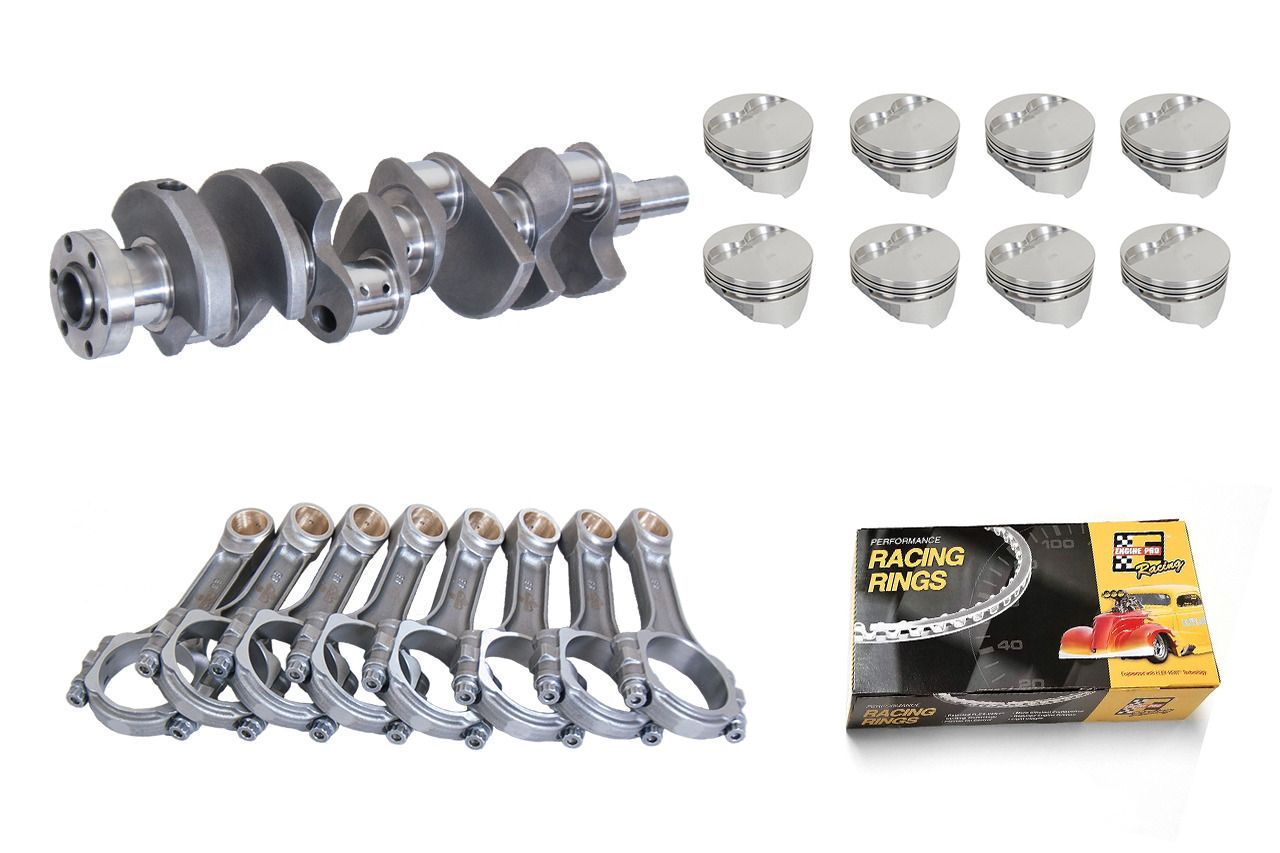

Windsor SBF 347 Street Cast Stroker Kit. Full rotating assembly in kit form including Crank, Rods, Pistons & Rings.

T.I. Performance have designed these Windsor stroker kits from our range of high quality engine component suppliers. With options from Forged and Cast I Beam or H Beam rods, and Forged or Cast pistons, we have an option for your Windsor stroker build. For stroker kits or forged rotating parts for other engine combinations, please contact us.

Suits the following engines:

• Ford 289 Windsor 4730cc V8 OHV 16V Carb Lead
• Ford 302 Windsor 4944cc V8 OHV 16V Carb Lead
• Ford 5.0L Windsor EFI 302ci 4944cc V8 OHV 16V ULP

Compression Ratio approx. 9.5:1 (with 64cc chambers).

Specifications:

• Crankshaft – Eagle Cast Steel 347 Windsor 3.4″ Stroker Crank suit EB ED EF EL AU Falcon 5L Windsor V8
• 3.400″ Stroke
• Excellent alternative to O.E. crank
• .092” radiuses so O.E. bearings can be used
• Recommended for use in street engines – no power adders

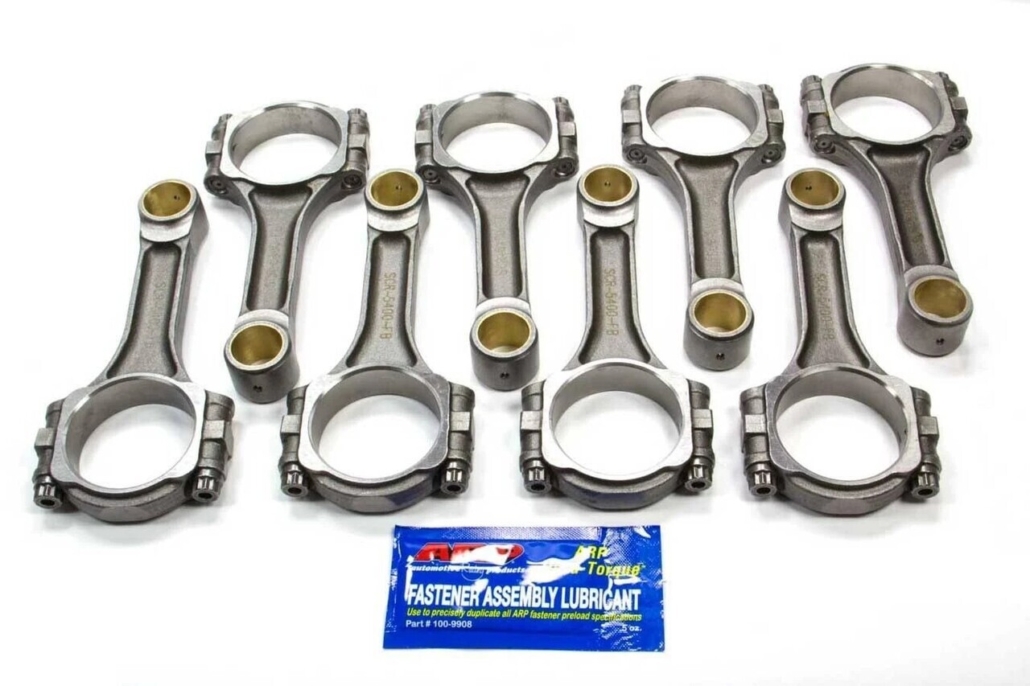

• Rods – Eagle Street 5140 I Beam 5.4″ Conrod Set suit 331/347 Windsor Stroker Crank

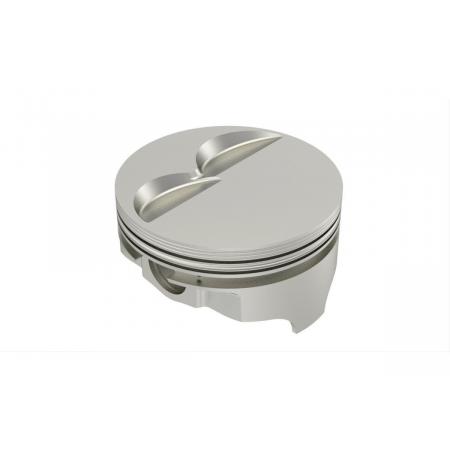

• Piston Set 8 x Piston & Pins
• Std Bore Size: 4.000″
• Size: 0.75mm / .030″
• Head Type: D Shaped Bowl 2 Valve Reliefs (12.6cc)
• Con Rod Length: 5.400″
• Stroke: 3.250″
• Piston Type: Forged 2618
• Comp Height: 1.170″
• Pin Size: .927″ x 2.750″
• Pin Type: Press & Full Floating
• Weight: 412/132 Grams
• Skirt Coating: No
• Piston to Bore: See Label on Box
• Top Ring Width: 1/16″
• 2nd Ring Width: 1/16″
• Oil Ring Width: 3/16″
• Ring Set: 43M5505 or 43M5523

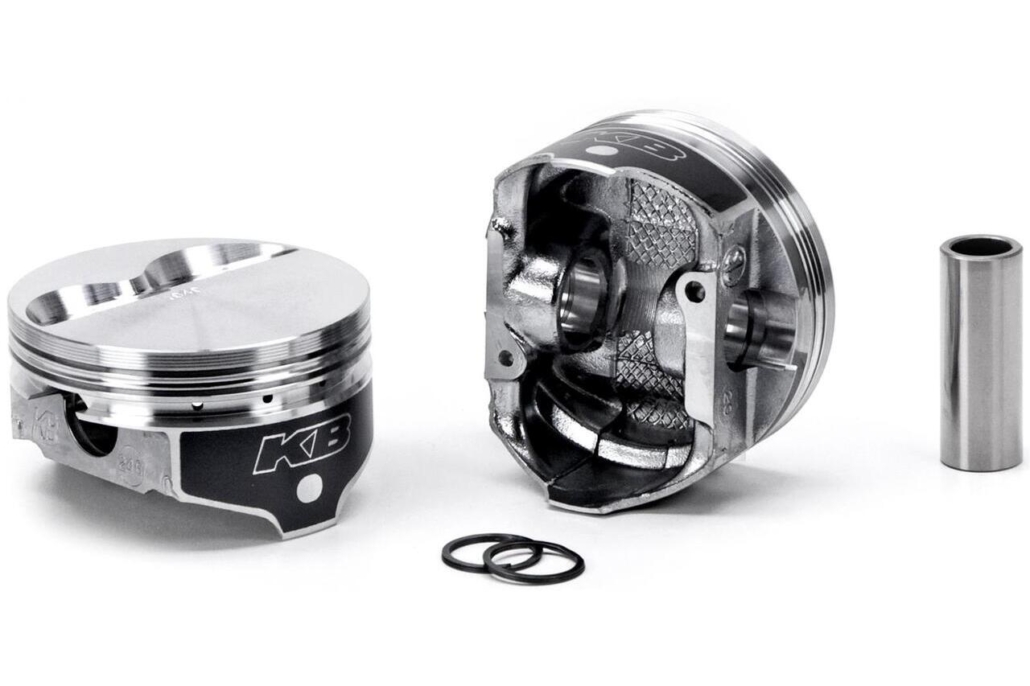

• Pistons – KB Hypereutectic Pistons Set 6.5cc suit 347 Windsor Stroker Crank 3.400″ Stroke 5.400″ Rod
• Piston Set: 8 x Piston & Pins
• Std Bore Size: 4.000″
• Size: 0.75mm / .030″
• Head Type: Flat Top with 2 Valve Reliefs (6.5cc)
• Con Rod Length: 5.400″
• Stroke: 3.400″
• Piston Type: Hypereutectic 390
• Comp Height: 1.090″
• Pin Size: .927″ x 2.160″
• Pin Type: Press & Full Floating
• Weight: 429/107 Grams
• Skirt Coating: No
• Piston to Bore: See Label on Box
• Top Ring Width: 1/16″
• 2nd Ring Width: 1/16″
• Oil Ring Width: 3/16″
• Ring Set: 43M5505 or 43M5523
• Rings – Engine Pro Moly Piston Rings Set 1/16″ 3/16″ suit Icon and KB Pistons
• Top Ring Type: Ductile Moly
• Std Bore Size: 4.000″
• Size / Over Size: 030
• Top Ring Width: 1/16″ (0.063″)
• 2nd Ring Width: 1/16″ (0.063″)
• Oil Ring Width: 3/16″ (0.1875″)

Manufacturer Part Number: 103023402+SIR5400FB+8KB246-030+43M5523-030
