Windsor SBF 347 Pro Street Forged Stroker Kit – Boosted

Description

Windsor SBF 347 Pro Street Forged Stroker Kit – Boosted. Full rotating assembly in kit form including Crank, Rods, Pistons & Rings.

T.I. Performance have designed these Windsor stroker kits from our range of high quality engine component suppliers. With options from Forged and Cast I Beam or H Beam rods, and Forged or Cast pistons, we have an option for your Windsor stroker build. For stroker kits or forged rotating parts for other engine combinations, please contact us.

Suits the following engines:

• Ford 289 Windsor 4730cc V8 OHV 16V Carb Lead
• Ford 302 Windsor 4944cc V8 OHV 16V Carb Lead
• Ford 5.0L Windsor EFI 302ci 4944cc V8 OHV 16V ULP

Compression Ratio approx. 9.0:1 (with 64cc chambers).

Specifications:

• Crankshaft – Eagle Forged 347 Windsor 3.4″ Stroker Crank suit EB ED EF EL AU Falcon 5L Windsor V8
• 3.400″ Stroke
• Forged 4340 steel with multi-stage heat treatment
• Non-twist forging
• .125” radiuses require narrowed bearings
• Nitrided for superior wear protection
• Forged cranks designed for internal balance without heavy metal
• 2.123″ Rod Journal
• 1750 bobweight

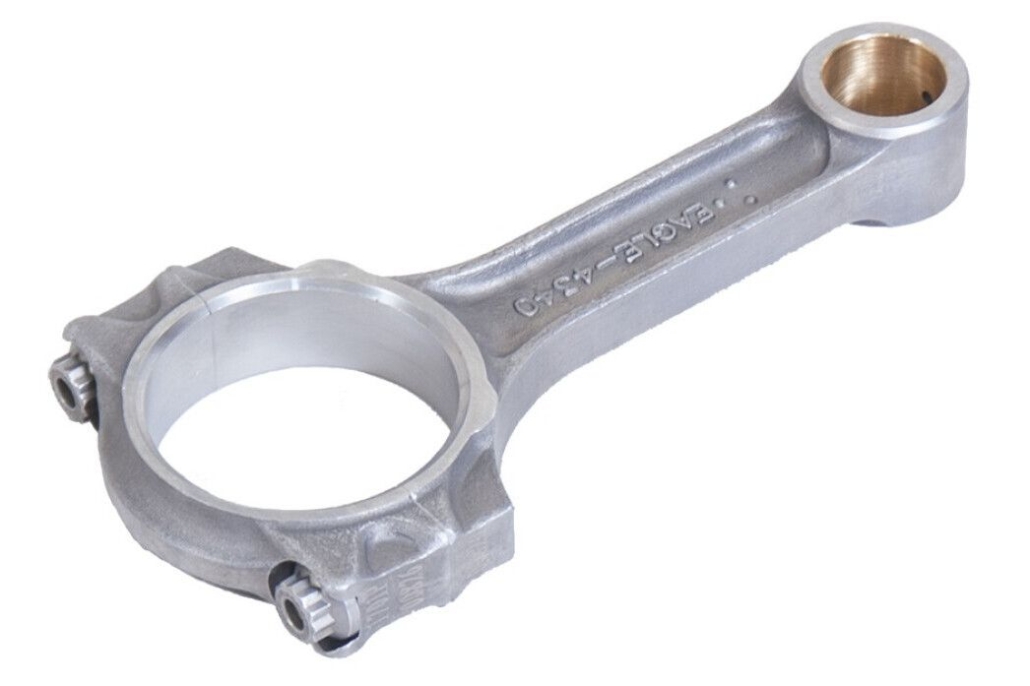

• Rods – Eagle Pro Street Forged 4340 I Beam 5.4″ Conrod Set suit 331/347 Windsor Stroker Crank
• 7/16″ ARP 8740 bolts (ARP 2000 available)
• Weight 550g matched to +/- 2g

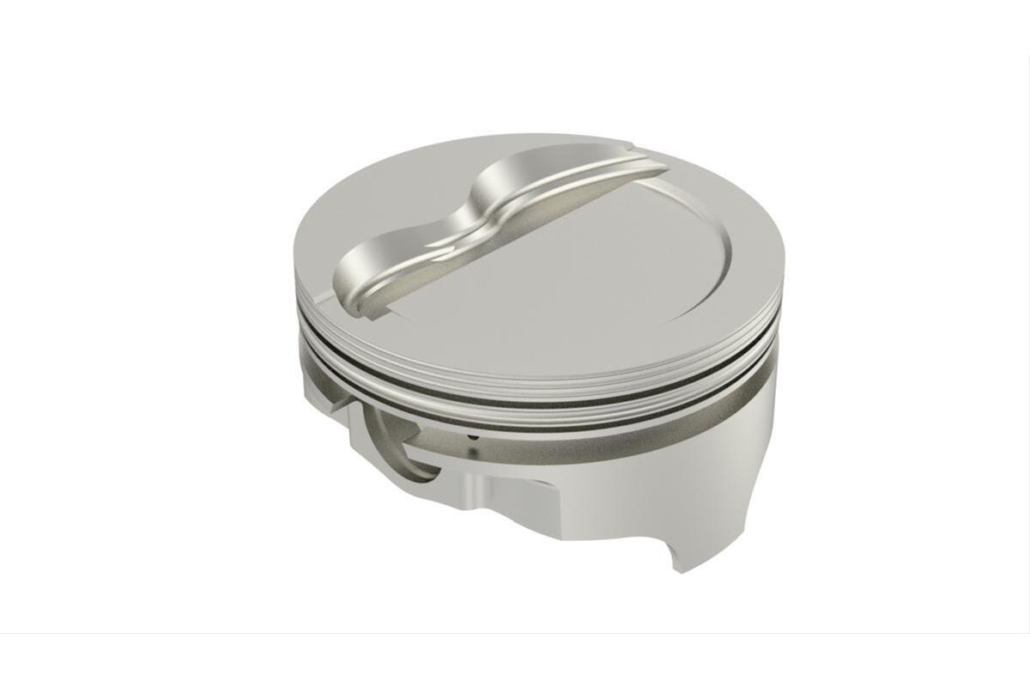

• Pistons – Icon Dished Forged Pistons Set 16.5cc suit 347 Windsor Stroker Crank 3.400″ Stroke 5.400″ Rod
• Piston Set: 8 x Piston & Pins
• Std Bore Size: 4.000″
• Size: 0.75mm / .030″
• Head Type: D Shaped Step-Dish 2 Valve Reliefs (16.5cc)
• Con Rod Length: 5.400″
• Stroke: 3.400″
• Piston Type: Forged 2618
• Comp Height: 1.090″
• Pin Size: .927″ x 2.750″
• Pin Type: Press & Full Floating
• Weight: 385/132 Grams
• Skirt Coating: No
• Piston to Bore: See Label on Box
• Top Ring Width: 1/16″
• 2nd Ring Width: 1/16″
• Oil Ring Width: 3/16″
• Ring Set: 43M5505 or 43M5523
• Rings – Engine Pro Moly Piston Rings Set 1/16″ 3/16″ suit Icon and KB Pistons
• Top Ring Type: Ductile Moly
• Std Bore Size: 4.000″
• Size / Over Size: 030
• Top Ring Width: 1/16″ (0.063″)
• 2nd Ring Width: 1/16″ (0.063″)
• Oil Ring Width: 3/16″ (0.1875″)

Manufacturer Part Number: 430234025400+FSI5400FB+8IC730-030+43M5523-030
