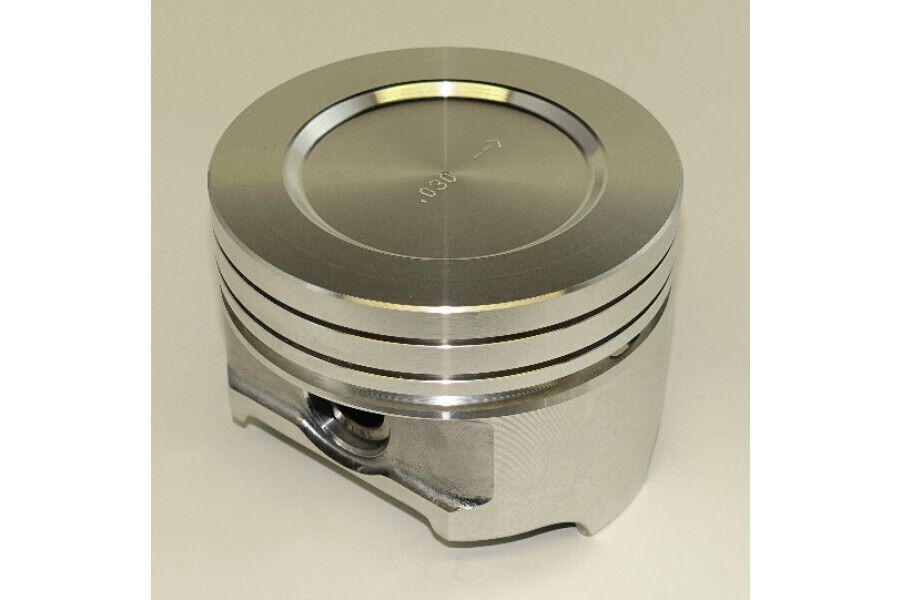

Silvolite Dish Top Piston & Pin Set suit Holden 304 5.0L V8

Description

Silvolite Dish Top Piston & Pin Set suit Holden 304 5.0L V8. Available in STD, 1.50, 1.00, 0.75, 0.50 sizes. We ship STD unless specified at checkout.

Specifications:

• Piston Set: 8 x Piston & Pins
• Size: Std
• Std Bore Size: 4.000″
• Head Type: Dish Top (10.6cc)
• Piston Type: Cast Hypereutectic
• Length: 2.930″
• Comp Height: 1.719″ – .118″
• Pin Size: .9272″ x 2.747″
• Pin Type: Press Fit
• Skirt Coating: No
• Piston to Bore: See Label on Box
• Top Ring Width: 1.50mm
• 2nd Ring Width: 1.50mm
• Oil Ring Width: 4.00mm
• Ring Set: 2M5210
• Replaces 8KRY4901

Suits the following engines:

• Holden 5.0L 304 4987cc V8 OHV 16V EFI ULP

Manufacturer Part Number: 8P1147-STD
