Description

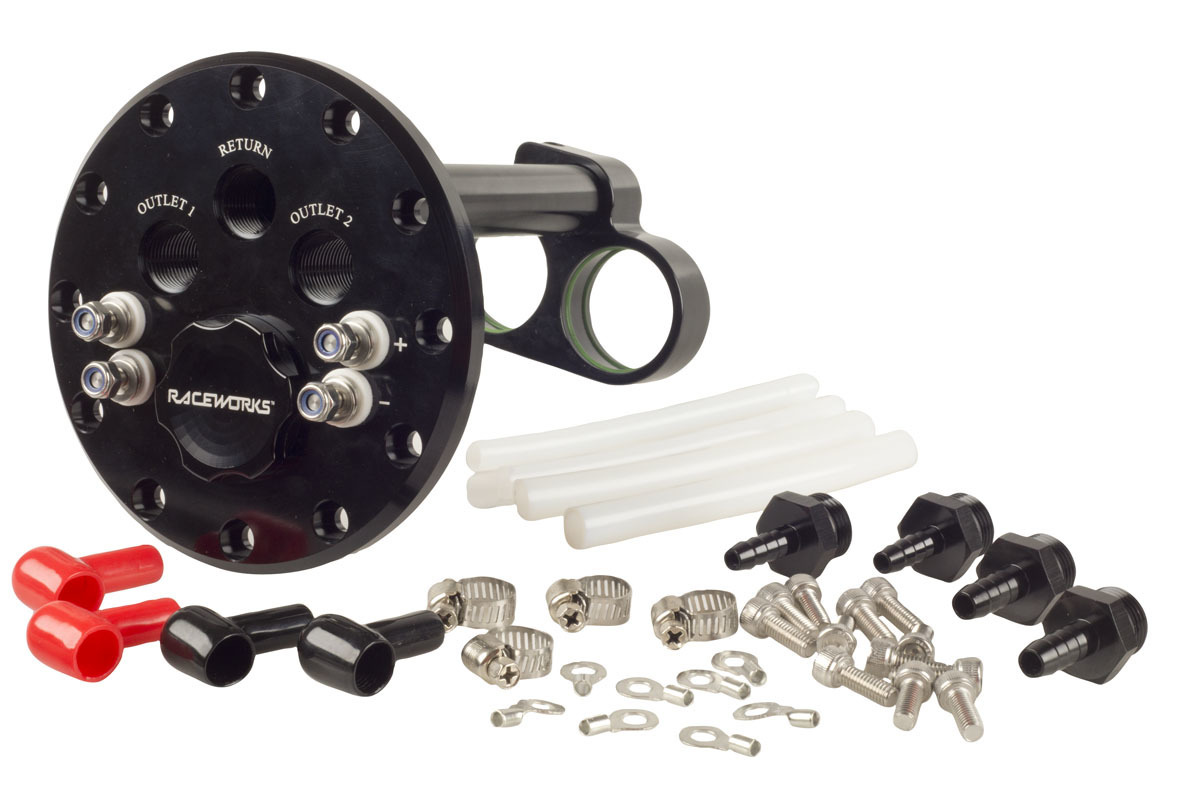

Raceworks Fuel Cell Single/Twin Pump Hanger Suits 39-40mm Pumps. 12 bolt 4.75″ B.C. pattern suits most fuel cells. Adjustable pump height.
Anodized black, this alloy dual fuel pump hanger can be fitted with one or two pumps, and has dual stainless electrical terminals allowing the pumps to be staged separately. E85 ready with teflon seals and viton o-rings. AN -8 O-Ring Ports. O-ring seal to tank / mounting ring.
These hangers are ideal for retrofitting an EFI fuel pump into older steel or plastic tank carby vehicles. See the linked items for steel or alloy weld on rings for mounting, fuel pumps, fittings and hose. Adjustable height – suits tank depth of 180mm to 280mm or deeper with longer hose. 41mm filler cap. O-Ring in hanger base, use the fuel cell mounting ring without o-ring.
This model suits 39-40mm pumps from Walbro / TI Automotive such as the GSS34x, GSS35x, 460, 525 etc.
Raceworks fuel pump brackets have been designed to attractively mount and insulate a variety of fuel pumps. The range includes brackets for single or twin-mount configuration of 39mm and 38mm pumps, engineered from precision alloy, and hardcoat anodised to enhance your fuel system installation.
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: ALY-131BK
Also Known As: PFEFCA003
dave (verified owner) –
Works well, great design.
