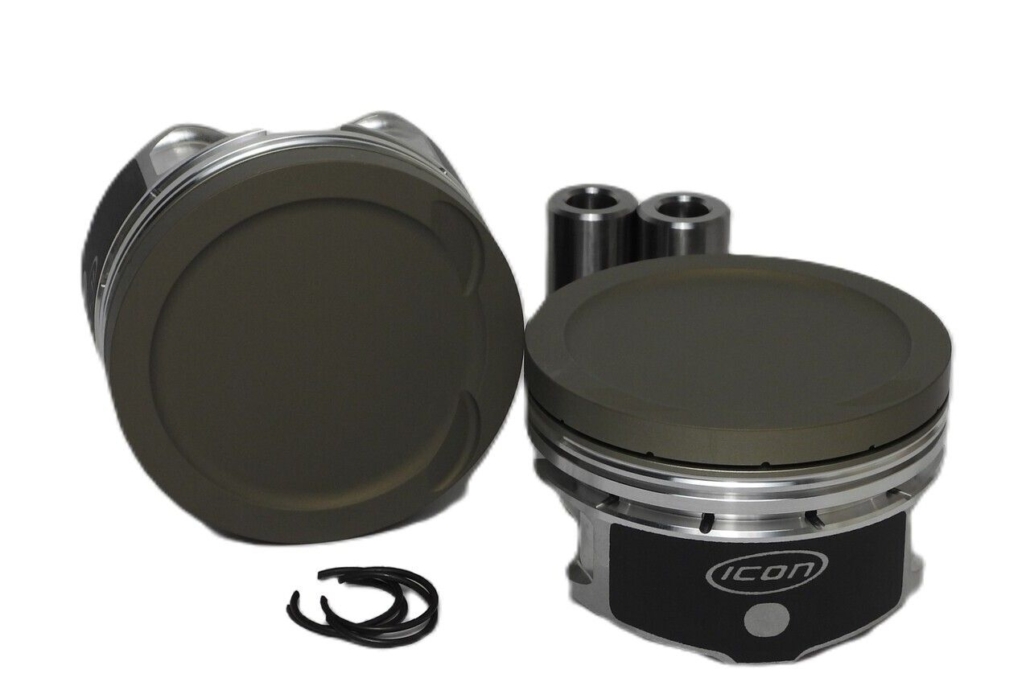

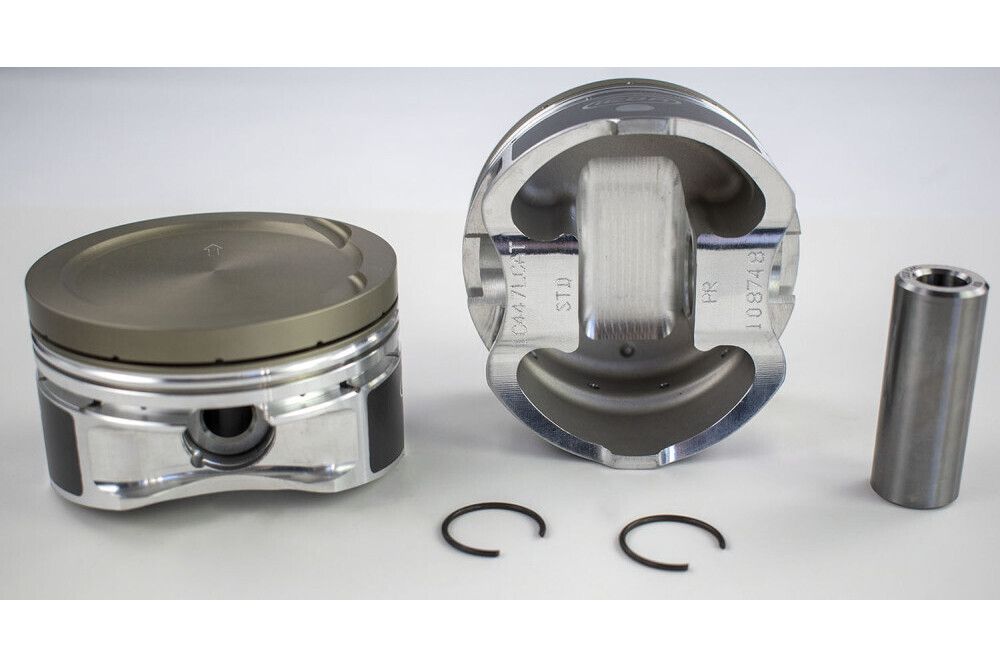

Icon Forged Piston & Ring Set suit Barra 4L

Description

Icon Forged Piston & Ring Set suit Barra 4L. Available in STD 0.25 0.30 sizes. We ship STD unless specified at checkout.

This Piston & Ring set is a great upgrade for any SBE Turbo Barra build. These 2618 forged alloy pistons have a hard anodised crown & top ring grooove, along with an ultraWearM42 skirt coating to help reduce friction. Compression Ratio approx. 9.0:1.

Specifications:

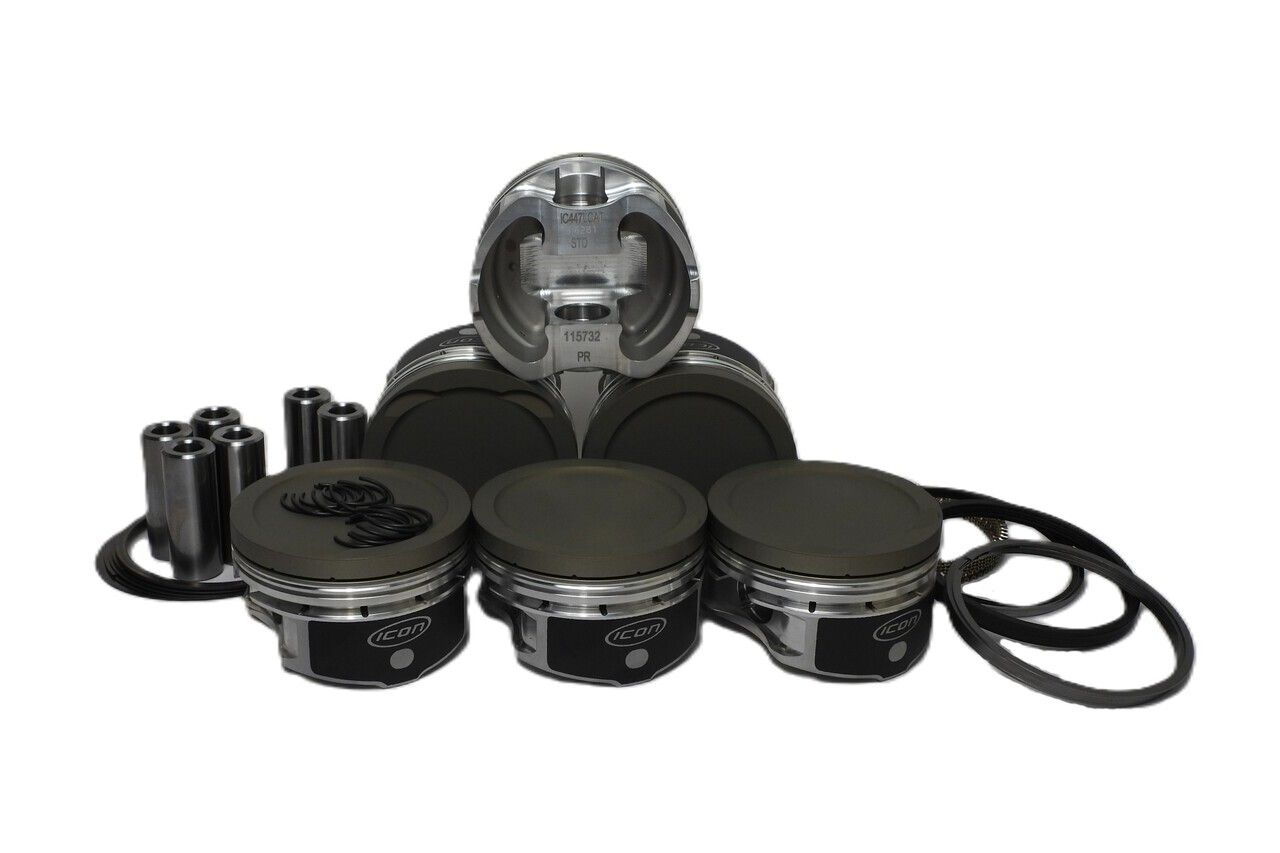

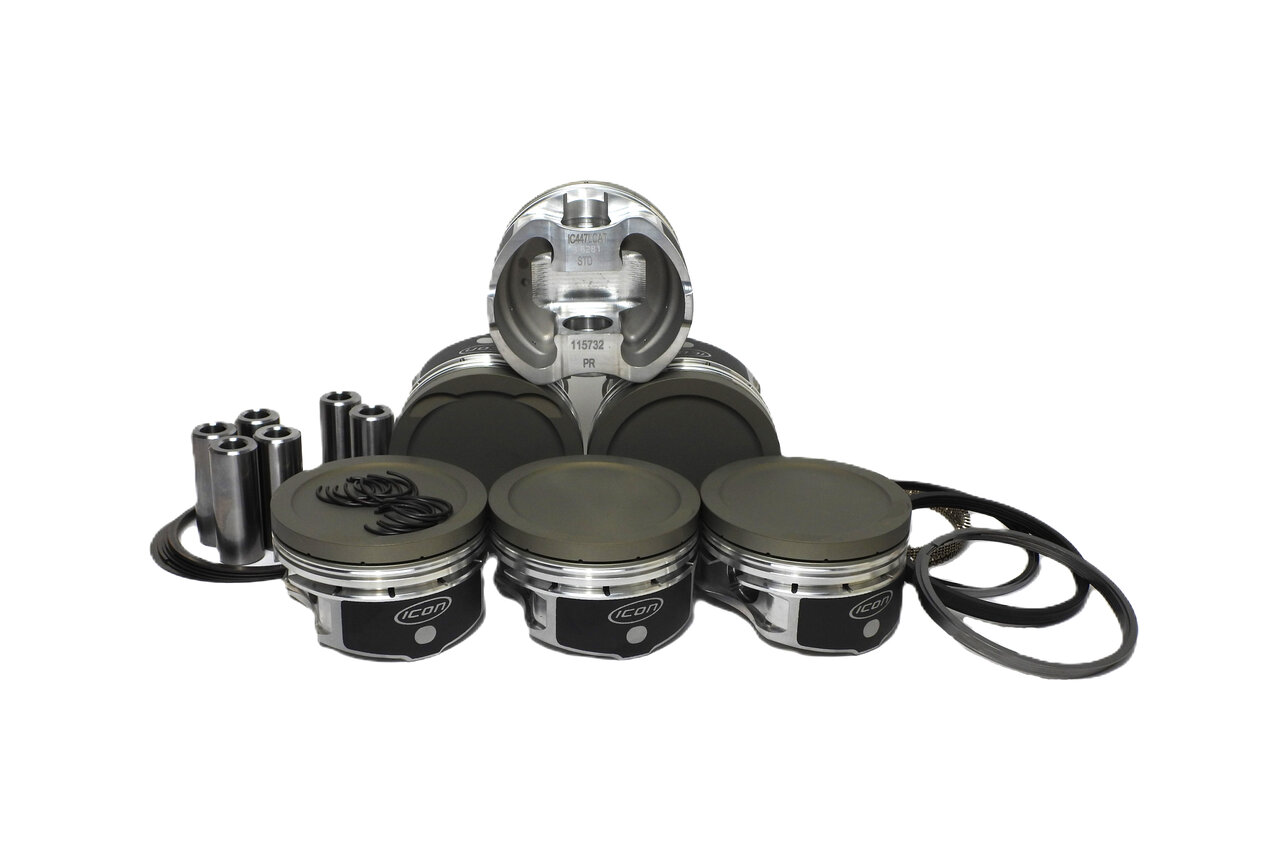

• Piston Set: 6 x Piston, Rings & Pins
• Std Bore Size: 92.26mm
• Size: 0.25mm / .010″
• Head Type: Dish Top (-8.9cc)
• Con Rod Length: 153.9mm
• Stroke: 99.3mm
• Piston Type: Forged 2618
• Comp Height: 30.86mm
• Pin Size: 22.00mm
• Pin Type: Full Floating
• Weight
• Skirt Coating: Yes – UltraWearM42
• Piston to Bore: See Label on Box
• Top Ring Width: 1.00mm
• 2nd Ring Width: 1.50mm
• Oil Ring Width: 3.00mm
• Ring Set: Rings Included (3632KP.25MM)
• Hard Anodized Crown & Top Ring Grooove

Suits the following engines:

• Ford 4.0 Barra 240T 245T 6 Cyl DOHC 24V MPFI Turbo
• Ford 4.0 Barra 270T 6 Cyl DOHC 24V MPFI Turbo ULP

Manufacturer Part Number: 6IC447CAK-STD
