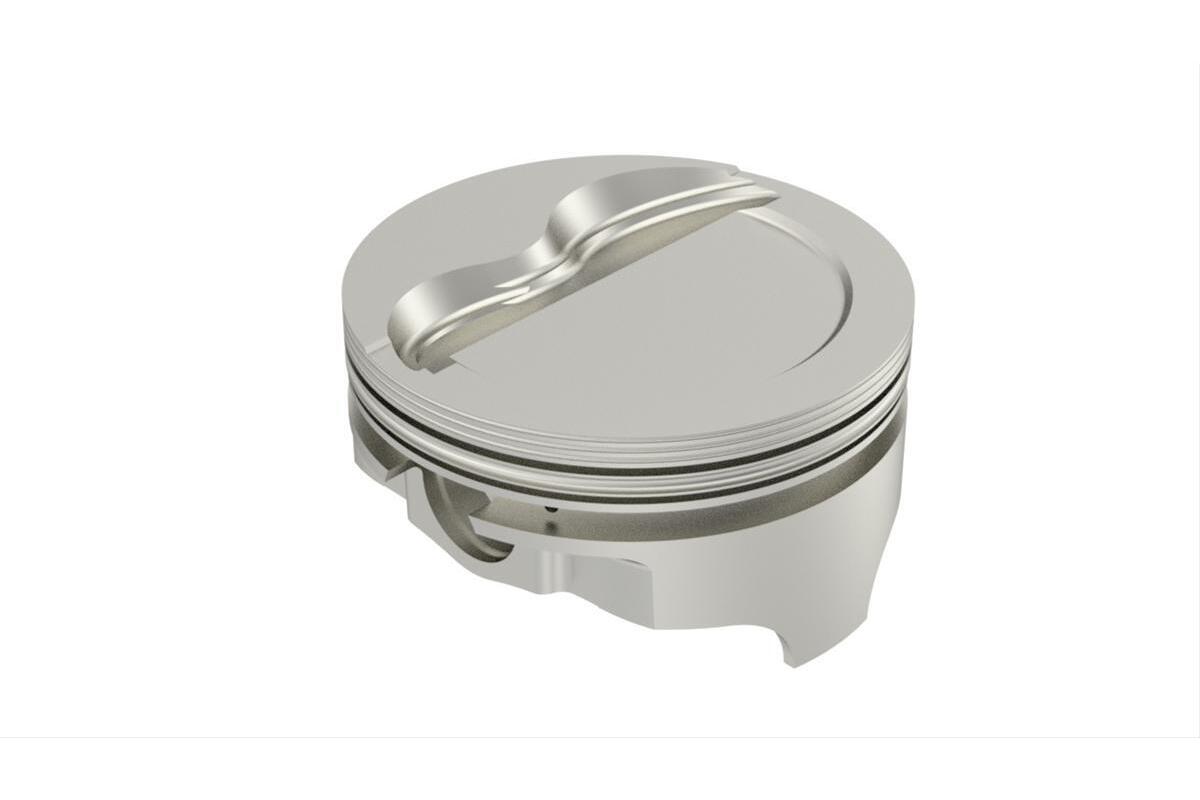

Icon Dished Forged Pistons Set 16.5cc suit 347 Windsor Stroker Crank 3.400″ Stroke 5.400″ Rod. Available in 030 040 sizes. We ship STD unless specified at checkout.
Compression Ratio approx. 9.0:1 (with 64cc chambers).
Icon Premium Forged Pistons are crafted from 2618 alloy, designed for high-performance applications like high compression, boosted, and nitrous builds. Featuring CNC-machined valve reliefs, accumulator grooves, and robust skirt designs, Icon Pistons offer exceptional durability, superior ring seal, and thermal performance under extreme cylinder pressures.
Specifications:
- Piston Set: 8 x Piston & Pins
- Std Bore Size: 4.000″
- Size: 0.75mm / .030″
- Head Type: D Shaped Step-Dish 2 Valve Reliefs (16.5cc)
- Con Rod Length: 5.400″
- Stroke: 3.400″
- Piston Type: Forged 2618
- Comp Height: 1.090″
- Pin Size: .927″ x 2.750″
- Pin Type: Press & Full Floating
- Weight: 385/132 Grams
- Skirt Coating: No
- Piston to Bore: See Label on Box
- Top Ring Width: 1/16″
- 2nd Ring Width: 1/16″
- Oil Ring Width: 3/16″
- Ring Set: 43M5505 or 43M5523
Manufacturer Part Number: 8IC730-030
