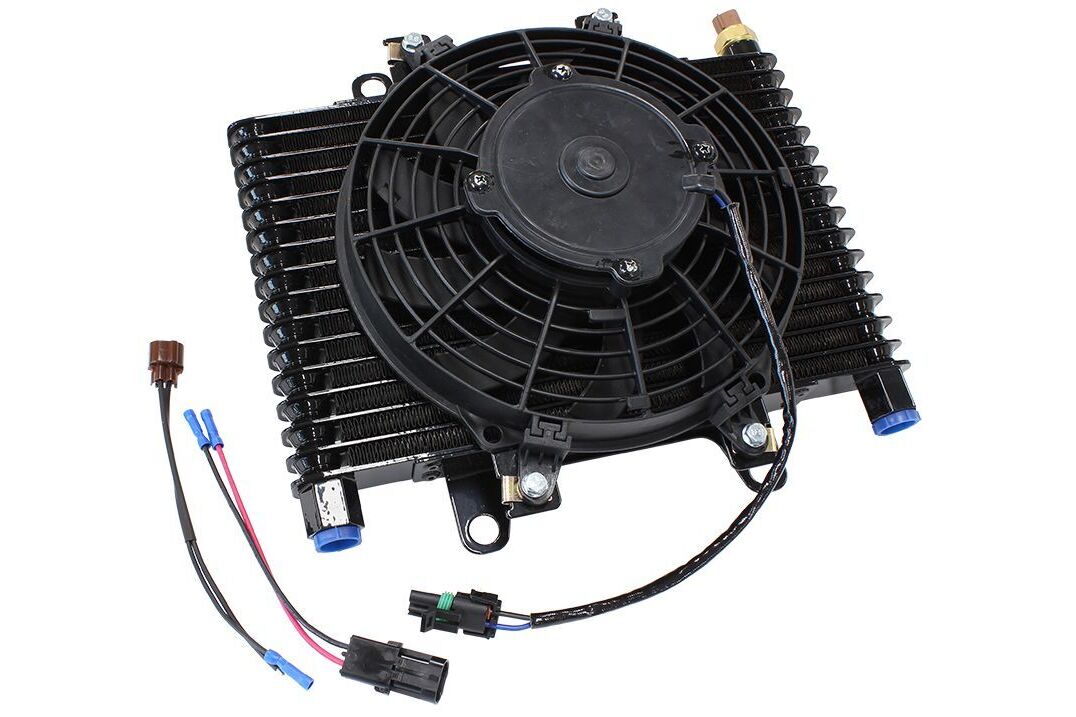

Aeroflow 342 x 228 x 32mm Oil and Transmission Cooler with Fan

Description

Aeroflow 342 x 228 x 32mm Oil and Transmission Cooler with Fan.

Aeroflow Competition Oil Coolers are engineered for high-performance cooling across engine oil, transmission, and power steering systems. Featuring a durable fin and plate design paired with a powerful electric fan, they deliver efficient heat transfer in demanding street or motorsport environments.

Specifications:

• Fin and plate design maximises cooling surface area
• 12V 9” electric fan flows 500CFM with just a 6 AMP draw
• Integrated thermal switch (M18 x 1.50mm) triggers fan at 175°F (79.5°C)
• Compatible with engine oil, transmission, and power steering fluids
• Pressure tested to over 200psi
• -10 ORB female fittings ensure secure, leak-free installation
• Built-in mounting points; optional rubber mounts (AF72-4001) sold separately
• Includes thermostat wiring and electric fan wiring
• Cooler dimensions: 13.5” (342mm) x 9” (228mm)
• Overall Length:342mm (13.5″)
• Overall Height: 228mm Thickness: 32mm
• Fan Thickness: 67mm
• Centre to Centre of Mounting Holes: 153mm
• Centre to Centre of Oil Cooler -10ORB Ports: 305mm
• Centre to Centre of Fan Mounts: 113mm

Manufacturer Part Number: AF72-6001
