Aeroflow 330 x 193 x 51mm 25 row Oil Cooler with Fan & Shroud

Description

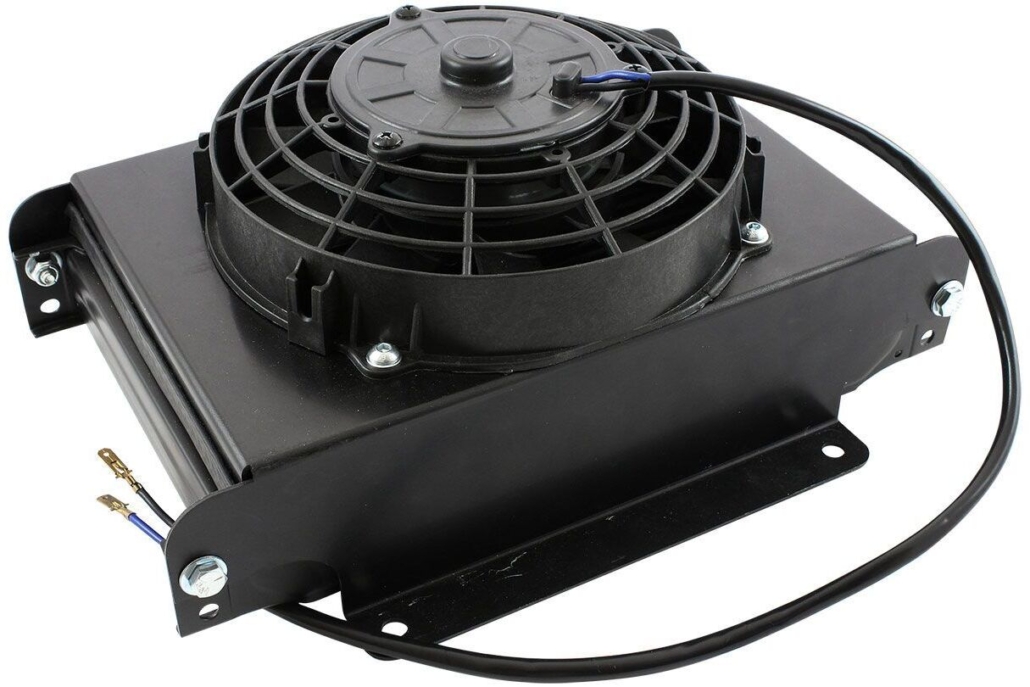

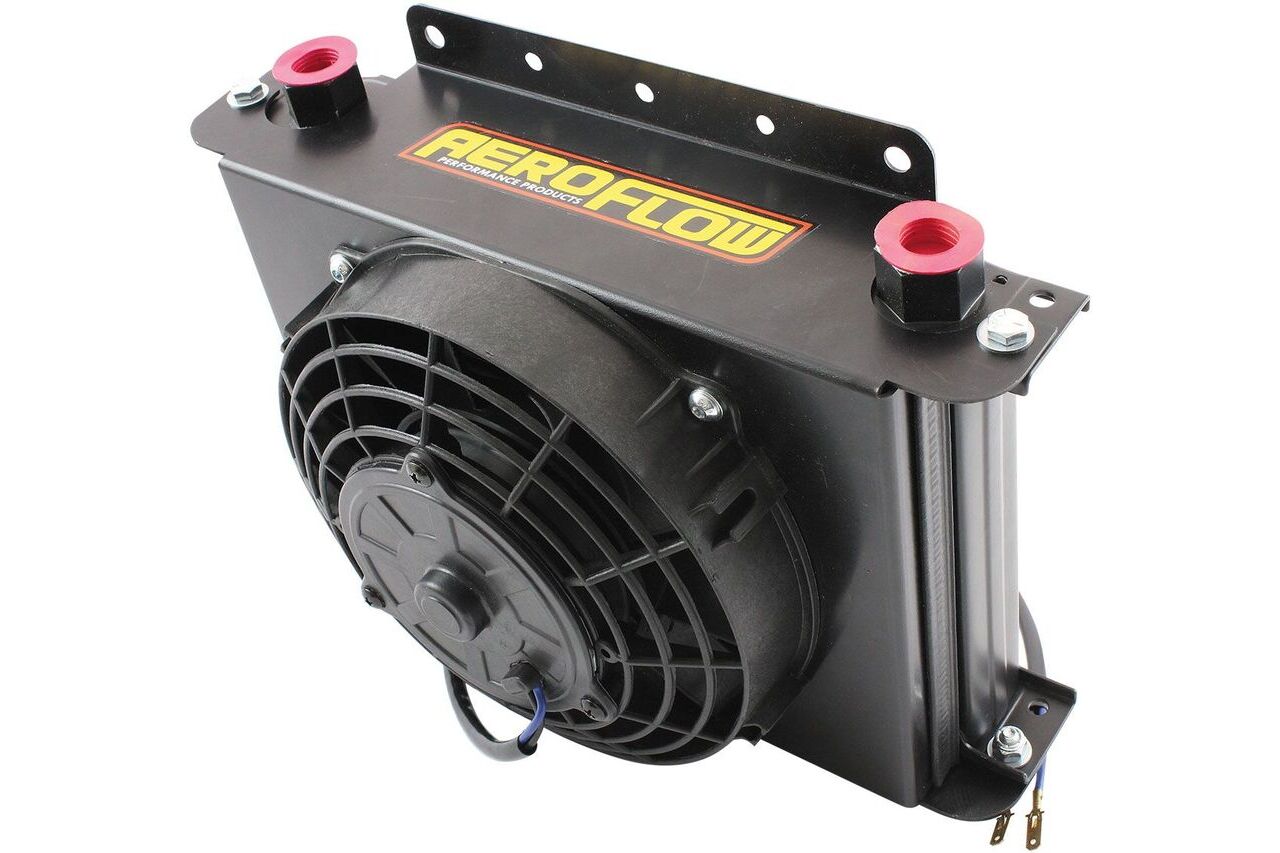

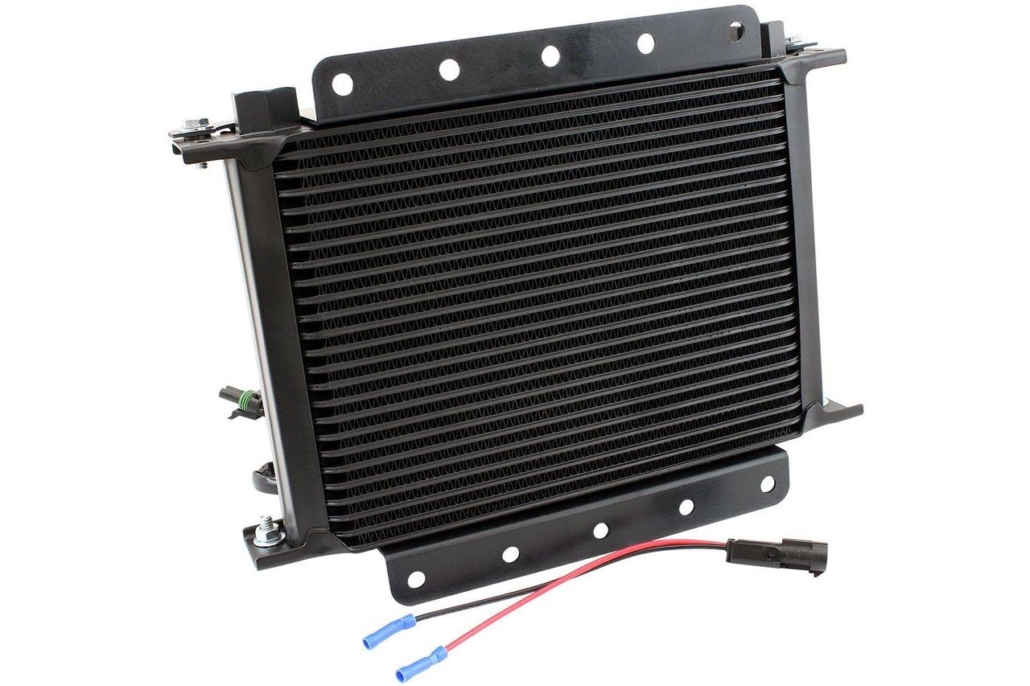

Aeroflow 330 x 193 x 51mm 25 row Oil Cooler with Fan & Shroud.

Aeroflow Stack Plate Oil Coolers with electric fan and shroud are built for serious cooling in tough conditions. Fully brazed construction ensures maximum durability, while the 7″ electric fan and sealed aluminium shroud maximise airflow and thermal efficiency without the need for custom brackets. Ideal for engine, transmission, or hydraulic systems across street, towing, or race applications.

Specifications:

• Stack plate design with fully brazed seams for high vibration resistance
• Integrated 7” electric fan with sealed aluminium shroud for direct airflow
• Suitable for engine oil, transmission, or hydraulic cooling
• -10 ORB female threads for secure, leak-free connections
• BTU Rating: 45,000 BTU/hour
• Max working pressure: 10 Bar (145 PSI)
• Burst pressure: 25 Bar (362 PSI)
• Oil Cooler Core: 25 rows, 330mm (L) x 193mm (H) x 51mm (D)
• Overall Dimensions: 255mm (H) x 150mm (D)
• Electric Fan Height: 68mm

Manufacturer Part Number: AF72-4125
