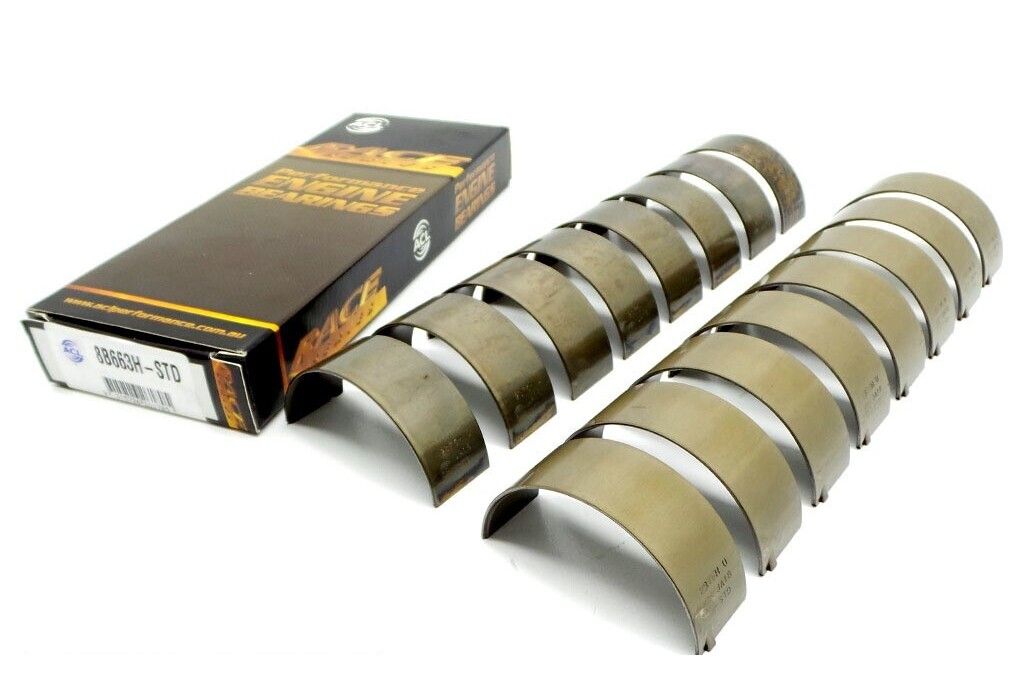

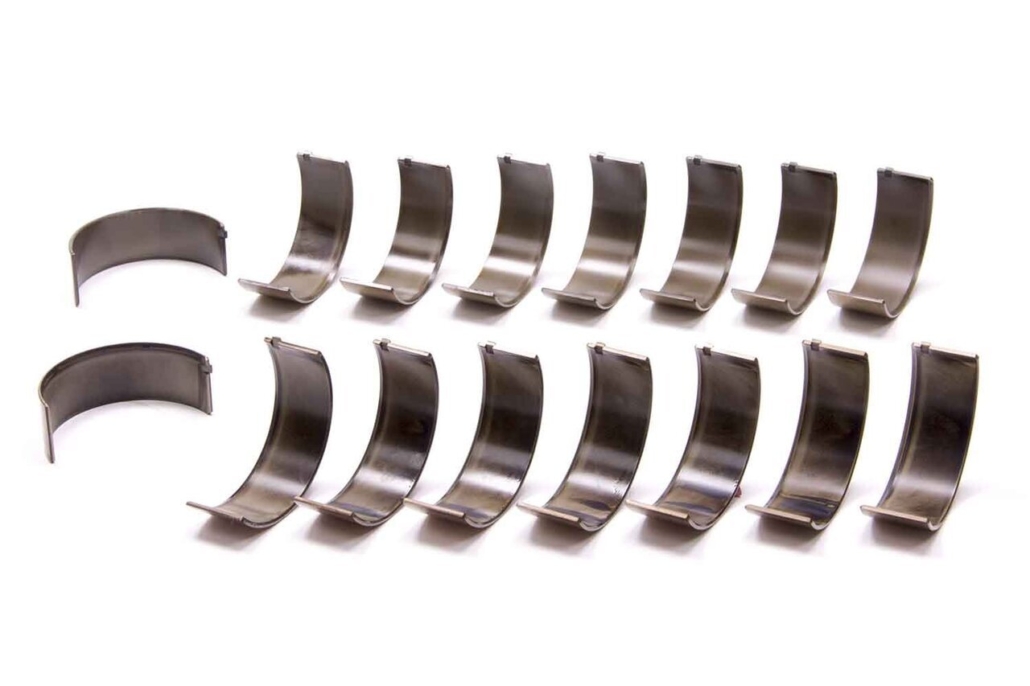

ACL Race Conrod End Bearings Set suit Holden LS1 LS2 LS3 L76 L98 V8

Description

ACL Race Conrod End Bearings Set suit Holden LS1 LS2 LS3 L76 L98 V8. Available in STD, 020, 011, 010, 009, 001 sizes. We ship STD unless specified at checkout.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Material: Race Series (Tri-Metal)
• Position: All
• Std Shaft Diam: 2.0990″/2.1000″ (53.315mm/53.340mm)
• Maximum Wall: 0.0619″ (1.572mm)
• Housing Bore: 2.2247″/2.2252″ (56.507mm/56.520mm)
• Max Length: 0.8370″ (21.250mm)

Suits the following engines:

• Holden 5.7 LS1 GenIII C4B 5668cc V8 OHV 16V EFI
• Holden 6.0 LS2 GenIV 5967cc V8 OHV 16V EFI ULP
• Holden 6.2L LS3 6162cc 317 325kw V8 OHV 16V
• Chevrolet 262 V8 4297cc V8 OHV 16V Carb Lead
• Chevrolet 302 4944cc V8 OHV 16V Carb Lead
• Chevrolet 305 5004cc V8 OHV 16V Carb Lead
• Chevrolet 307 5027cc V8 OHV 16V Carb Lead
• Chevrolet 327 5359cc V8 OHV 16V Carb Lead
• Chevrolet 350 5736cc V8 OHV 16V Carb Lead
• Chevrolet 400 6579cc V8 OHV 16V Carb Lead
• Chevrolet 6.0 L76 L77 Gen IV 260kw V8 OHV 16V
• Chevrolet 6.0 L98 GenIV 270kw V8 OHV 16V EFI
• Chevrolet RCWG 350 Vortec LM1 5734cc V8 OHV 16V
• Chevrolet LS LM7 L59 LM4 L33 5328cc 5.3L V8 OHV 16

Manufacturer Part Number: 8B663H-STD
