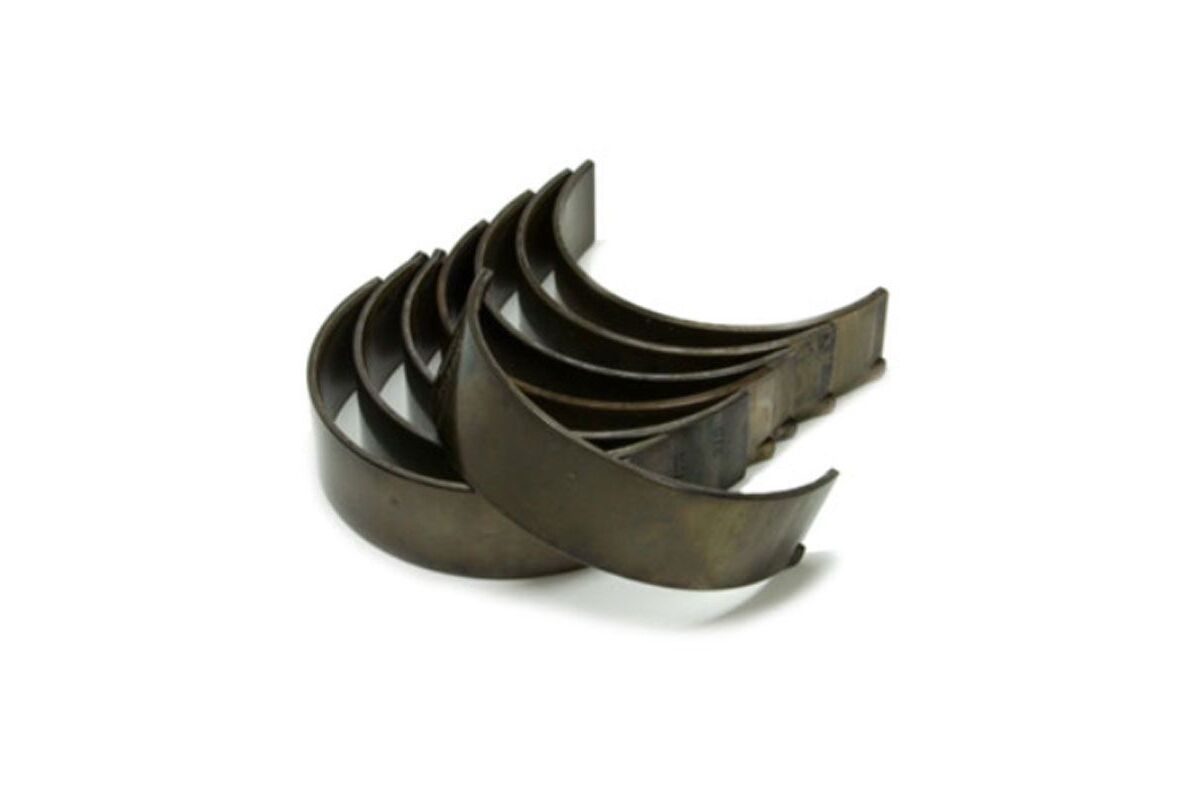

ACL Race Conrod Big End Bearings Set Extra Oil Clearance suit Holden 253 308 304 5.0L

Description

ACL Race Conrod Big End Bearings Set Extra Oil Clearance suit Holden 253 308 304 5.0L.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Material: Race Series (Tri-Metal)
• Position: All
• Std Shaft Diam: 2.1240″/2.1250″ (53.950mm/53.975mm)
• Oil Clearance: TBA
• Maximum Wall: 0.0614″ (1.559mm)
• Housing Bore: 2.2497″/2.2504″ (57.142mm/57.160mm)
• Max Length: 0.7780″ (19.750mm)

Suits the following engines:

• Holden 253 4.2L Red 4143cc V8 OHV 16V Carb Lead
• Holden 308 Red 5048cc V8 OHV 16V Carb Lead
• Holden 5.0L 304 4987cc V8 OHV 16V EFI ULP
• Holden 5.7 HSV 5736cc V8 OHV 16V EFI ULP
• Holden 308 Blue Black 5042cc V8 OHV 16V Carb Lead
• Holden 253 4.2L Blue 4148cc V8 OHV 16V Carb
• Holden 355 Stroker 5820cc V8 OHV 16V Carb Lead

Manufacturer Part Number: 8B2356HX-STD
