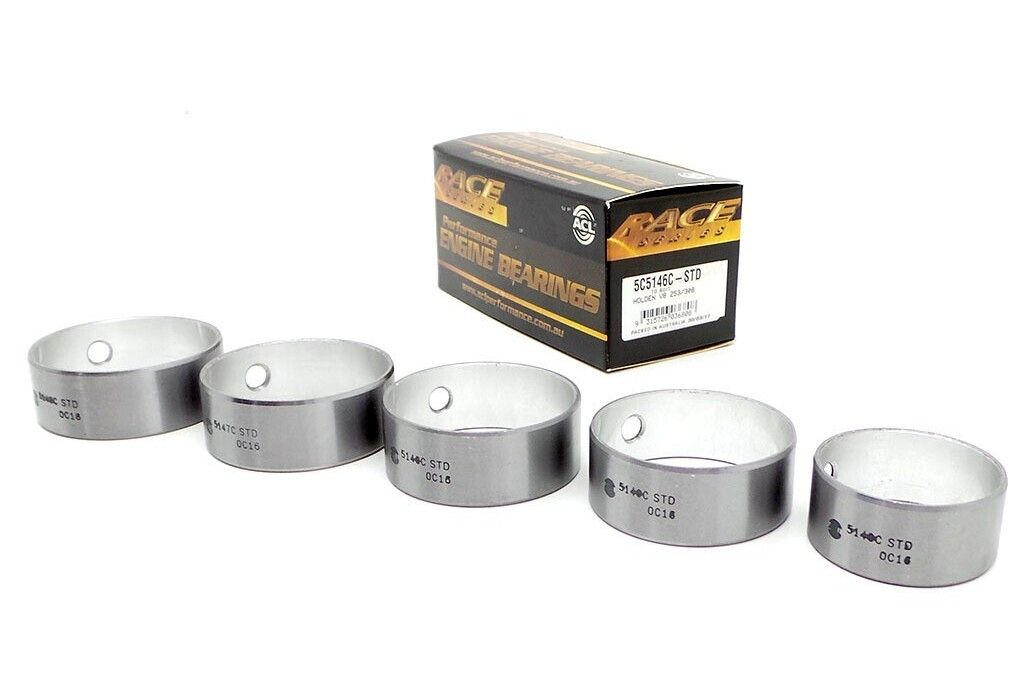

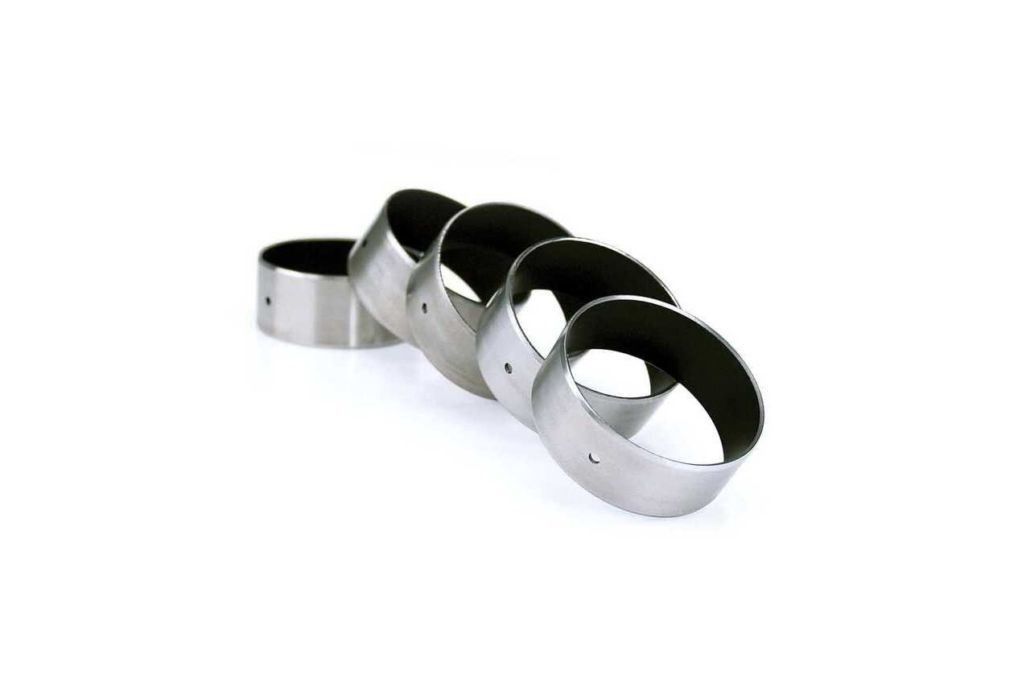

ACL Race Camshaft Bearing Set suit Holden 253 308 304 5.0L

Description

ACL Race Camshaft Bearing Set suit Holden 253 308 304 5.0L. Available in STD 002 sizes. We ship STD unless specified at checkout.

Founded in Tasmania, Australia in 1922, ACL is a globally recognised manufacturer specialising in high-performance engine bearings and components. Known for precision and durability, ACL Bearings are widely used in motorsports and high-performance applications, especially within engines that require reliable support under intense loads. View the full catalogue here

Specifications:

• Camshaft Bearing Set
• Brand: ACL Race Series
• Manufacturer: ACL
• Camshaft Bearing (c): 5149C
• Manufacturer: ACL
• Min Std Shaft Size: 1.8682in / 47.452mm
• Max Std Shaft Size: 1.8692in / 47.478mm
• Min Std Tunnel Size: 1.9990in / 50.775mm
• Max Std Tunnel Size: 2.0010in / 50.825mm
• Max Wall At Crown: 0.0645in / 1.638mm
• Max Overall Length: 0.7898in / 20.06mm
• Min Vertical Oil Clearance: 0.0008in / 0.021mm
• Max Vertical Oil Clearance: 0.0048in / 0.121mm
• Material: F830
• Camshaft Bearing (c): 5146C
• Manufacturer: ACL
• Min Std Shaft Size: 1.8882in / 47.96mm
• Max Std Shaft Size: 1.8892in / 47.986mm
• Min Std Tunnel Size: 2.0290in / 51.537mm
• Max Std Tunnel Size: 2.0310in / 51.587mm
• Max Wall At Crown: 0.0695in / 1.765mm
• Max Overall Length: 0.7898in / 20.06mm
• Min Vertical Oil Clearance: 0.0008in / 0.021mm
• Max Vertical Oil Clearance: 0.0048in / 0.121mm
• Material: F830
• Camshaft Bearing (c): 5147C
• Manufacturer: ACL
• Min Std Shaft Size: 1.8882in / 47.96mm
• Max Std Shaft Size: 1.8892in / 47.986mm
• Min Std Tunnel Size: 2.0190in / 51.283mm
• Max Std Tunnel Size: 2.0210in / 51.333mm
• Max Wall At Crown: 0.0645in / 1.638mm
• Max Overall Length: 0.7898in / 20.06mm
• Min Vertical Oil Clearance: 0.0008in / 0.021mm
• Max Vertical Oil Clearance: 0.0048in / 0.121mm
• Material: F830
• Camshaft Bearing (c): 5148C
• Manufacturer: ACL
• Min Std Shaft Size: 1.8682in / 47.452mm
• Max Std Shaft Size: 1.8692in / 47.478mm
• Min Std Tunnel Size: 2.0090in / 51.029mm
• Max Std Tunnel Size: 2.0110in / 51.079mm
• Max Wall At Crown: 0.0695in / 1.765mm
• Max Overall Length: 0.7898in / 20.06mm
• Min Vertical Oil Clearance: 0.0008in / 0.021mm
• Max Vertical Oil Clearance: 0.0048in / 0.121mm
• Material: F830
• Camshaft Bearing (c): 5140C
• Manufacturer: ACL
• Min Std Shaft Size: 1.5790in / 40.107mm
• Max Std Shaft Size: 1.58in / 40.132mm
• Min Std Tunnel Size: 1.7098in / 43.429mm
• Max Std Tunnel Size: 1.7118in / 43.48mm
• Max Wall At Crown: 0.0645in / 1.638mm
• Max Overall Length: 0.7898in / 20.06mm
• Min Vertical Oil Clearance: 0.0008in / 0.021mm
• Max Vertical Oil Clearance: 0.0048in / 0.121mm
• Material: F830

Suits the following engines:

• Holden 253 4.2L Red 4143cc V8 OHV 16V Carb Lead
• Holden 308 Red 5048cc V8 OHV 16V Carb Lead
• Holden 355 Stroker 5820cc V8 OHV 16V Carb Lead
• Holden 5.0L 304 4987cc V8 OHV 16V EFI ULP
• Holden 5.7 HSV 5736cc V8 OHV 16V EFI ULP
• Holden 253 4.2L Blue 4148cc V8 OHV 16V Carb
• Holden 308 Blue Black 5042cc V8 OHV 16V Carb Lead

Manufacturer Part Number: 5C5146C-STD
