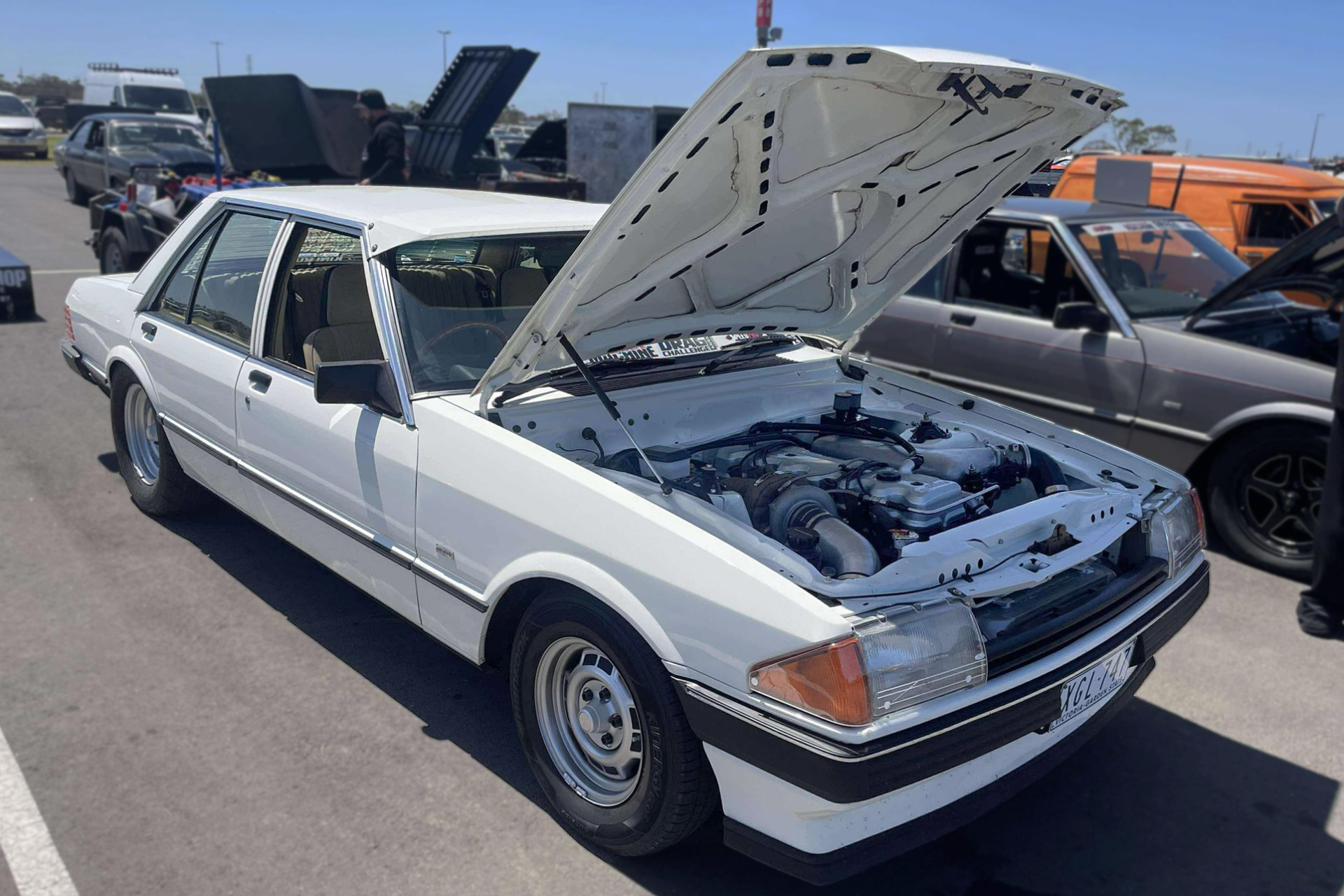

Nathan’s XE GL 747
It’s time! After putting up with the stock 250 Crossflow in his XE Falcon for many years, Nathan decided some upgrades were in order. And what better drivetrain to drop in than the battle tested turbo SOHC from his NF Fairlane!
Bringing across the parts was no easy task, but in a short 14 weeks Nathan and Michael went from a stock XE GL to fully stripped, then painted the underbody and engine bay, dropped in the engine and box and then rewired and plumbed the car from scratch to have it ready for Street Machine Drag Challenge 2024.
This build runs the trusty Haltech Elite 750 ECU and iC-7 Dash from the NF Fairlane with a brand new Premium harness, along with a 6Boost X-Series SOHC Turbo manifold and Raceworks fuel system.
See below for a breakdown of the parts used in this build by vehicle subsystem.
Engine
-
Crow Cams EA EB ED EF AU Falcon 4L Vernier Cam Gear Timing Set CS6EA-VS$324 inc. GST - Product on sale
Crow Cams EA EB ED EF EL Falcon 4L Stage 4 Camshaft 2221514Original price was: $579.$569Current price is: $569. inc. GST -
Permaseal AU Falcon MLS Head Gasket suit all 4L SOHC 6 Cylinder$157 inc. GST -
ACL EA EB ED EF EL AU BA BF FG Falcon 4L Race Series Conrod Big End Bearings$85 inc. GST -
Hastings EA EB ED EF EL Falcon 4L Moly Piston Rings$134 inc. GST -
ACL EA EB ED EF EL Falcon 4L Race Series Main Bearings$151 inc. GST
ECU & Electrical
-
Deutsch DT 12-Way Connector Kit$44 inc. GST -
LS1 Ignition Coil$62 inc. GST -
Raceworks Battery Mount Suit Optima 34/D34/34M Black$196 inc. GST -
Connector Plug Set suit LS1 Ignition Coil$21 inc. GST -
Haltech Elite 750 ECU HT-150600$1,696 inc. GST - Product on sale
Haltech Elite 750 Premium Universal Wire-in Harness 2.5m (8′)Original price was: $540.$524Current price is: $524. inc. GST - Product on sale
Plug and Pins Only – AMP 34 Pin 4 Row 3 Keyway Superseal ConnectorOriginal price was: $82.$80Current price is: $80. inc. GST -
Haltech Firewall Rubber Wiring Grommet 51mm (2″) OD 28mm (1 1/8″) ID$26 inc. GST -
Haltech Firewall Rubber Wiring Grommet 51mm (2″) OD 21mm (13/16″) ID$26 inc. GST - Product on sale
Haltech iC-7 OBD-II Colour Display DashOriginal price was: $1,695.$1,644Current price is: $1,644. inc. GST -
Haltech WB1 Bosch – Single Channel CAN O2 Wideband Controller Kit 1.2M (4ft)$536 inc. GST -
Raceworks Red 250A Surface Mount Power Post 3/8″ UNC$13 inc. GST -
Optima 34 Red Top Starting AGM Battery$426 inc. GST -
Icon Ignition Leads suit AU2/AU3 Falcon 4L Intech 6 Cylinder$65 inc. GST -
Linear Position Sensor – 1/2″ – 100mm Travel Between Mounting Holes (Closed) 217mm$170 inc. GST -
Delco 3/8″ NPT Air Temp Sensor$25 inc. GST
Intake & Boost
- Product on sale
XF EA-AU BA BF FG Falcon 4L Barra SOHC Intake Manifold PlenumOriginal price was: $899.$849Current price is: $849. inc. GST -
Raceworks Spark Plug Heat Shield Boot (4pk )$45 inc. GST -
Raceworks 3″ / 76mm 30deg Aluminium Tube Bend$37 inc. GST -
4″ Turbo Guard Protector Screen$84 inc. GST -
6Boost T4 Turbo Manifold suit X-Series SOHC – External Gate 60mm$1,400 inc. GST
Cooling
-
Raceworks Coolant Overflow / Recovery / Purge Tank 1L – Black$163 inc. GST -
Maradyne 14″ Thermo Fan Champion Series 12v – 160w$230 inc. GST
Fuel & Fluid System
-
Walbro 460 lph Fuel Pump F90000267 w/ Fitting Kit$199 inc. GST -
Raceworks Twin Pump Surge Tank 2.8L ALY-083BK$419 inc. GST -
Raceworks Billet Pierburg / Walbro Fuel Pump Bracket – Black$50 inc. GST -
Bosch Motorsport 1500cc / 1650cc 148lb Fuel Injector Short$213 inc. GST -
Raceworks AN-8 90 degree Swivel Female to AN Female$35 inc. GST -
Raceworks 1/2″ / 12.7mm Cushioned P Clip – 5pk – Black$18 inc. GST -
Raceworks AN-8 200 Series Teflon Hose End$21 inc. GST -
Raceworks AN-12 45 degree 200 Series Teflon Hose End$60 inc. GST -
Raceworks AN-8 90 degree 200 Series Teflon Hose End$36 inc. GST -
Raceworks AN-6 90 degree 400 Series Push Lock Hose End$31 inc. GST -
Raceworks AN-8 90 degree Female Swivel to 1/2″ Barb$29 inc. GST -
Raceworks AN-10 Male Reducer to AN-8$13 inc. GST -
Raceworks AN-8 Male Flare to AN-10 O-Ring Boss$16 inc. GST -
Raceworks AN-8 Male Flare to AN-8 O-Ring Boss$11 inc. GST -
Raceworks 1/8″ NPT Aluminium Weld On Fitting$7 inc. GST -
Raceworks AN-8 Aluminium Dry Break Quick Release Fitting with AN-8 body$159 inc. GST -
Raceworks AN-6 400 Series Push Lock Hose – 5m$102 inc. GST -
Raceworks AN-8 90 degree Female Swivel to 3/8″ Barb$31 inc. GST -
Raceworks AN-8 240 Series Black Nylon Braided Teflon Hose – 10m$433 inc. GST -
Raceworks AN-8 240 Series Black Nylon Braided Teflon Hose – 5m$222 inc. GST -
Raceworks AN-12 240 Series Black Nylon Braided Teflon Hose – 1m$75 inc. GST -
Raceworks Injector Extensions – Short – Full Length 14mm-14mm – 6 Pack$58 inc. GST -
Raceworks Black Catch Can With Drain Tap 2L$227 inc. GST -
Pierburg Fuel Pump 250 lph Lift Pump 7.21088.62.0 EFP-089$124 inc. GST -
Raceworks AN-8 Stainless Steel Hard Line 7m$146 inc. GST -
Raceworks 40 Micron Billet Inline Fuel Filter with Integrated Mount AN-8$214 inc. GST
