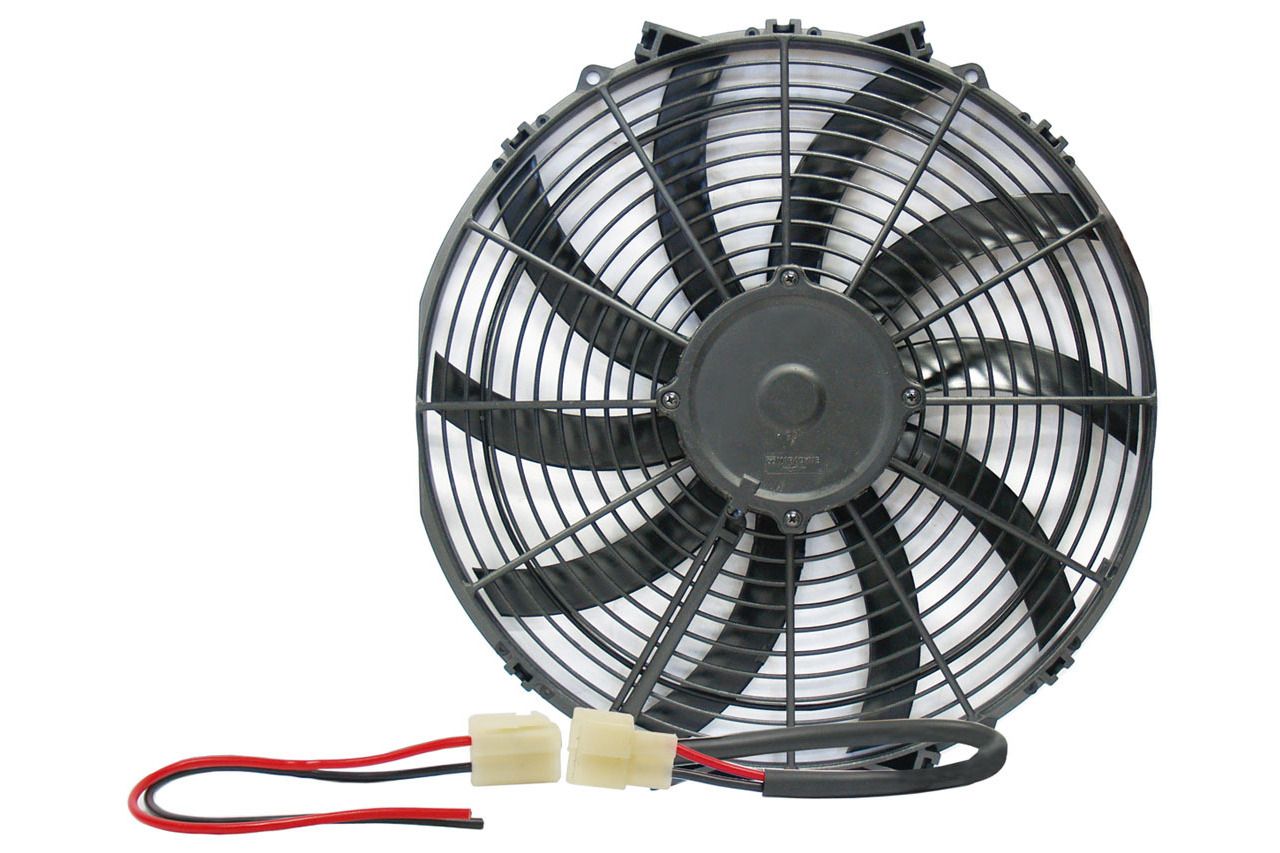

Maradyne 14″ Thermo Fan Champion Series 12v – 160w. 14 in., low profile, reversible S blade fan with 160 watt motor.
MARADYNE® design only the highest quality components into their fan assemblies. All plastic components are moulded from engineering grade glass-filled nylon resin. All motors are designed for long life, durability and harsh environments. These motors perform not only on the race track, but also in extreme off-road conditions.
- Lowest profile high performance reversibles on the market
- Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
- Quiet, reversible S-blade design works as a puller or pusher fan (ships as a puller)
- All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
- Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
- Model: M146K
- Motor: 160w
- Current Draw: 10.1A

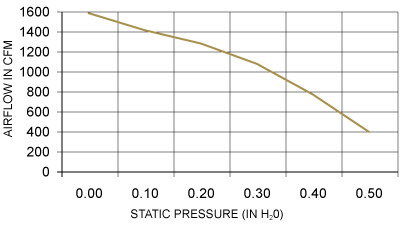

- CFM @ 0 in. Static: 1,555

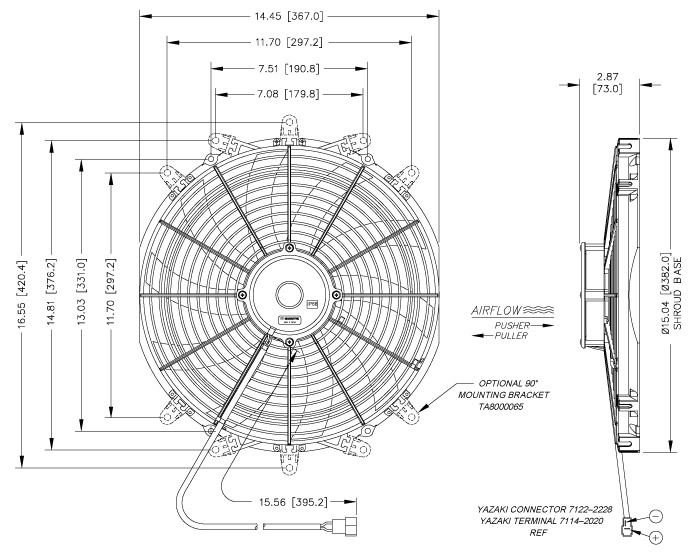

- Depth: 2.87 in.
Full spec sheet: m146k_data.pdf
Manufacturer Part Number: M146K
