Description

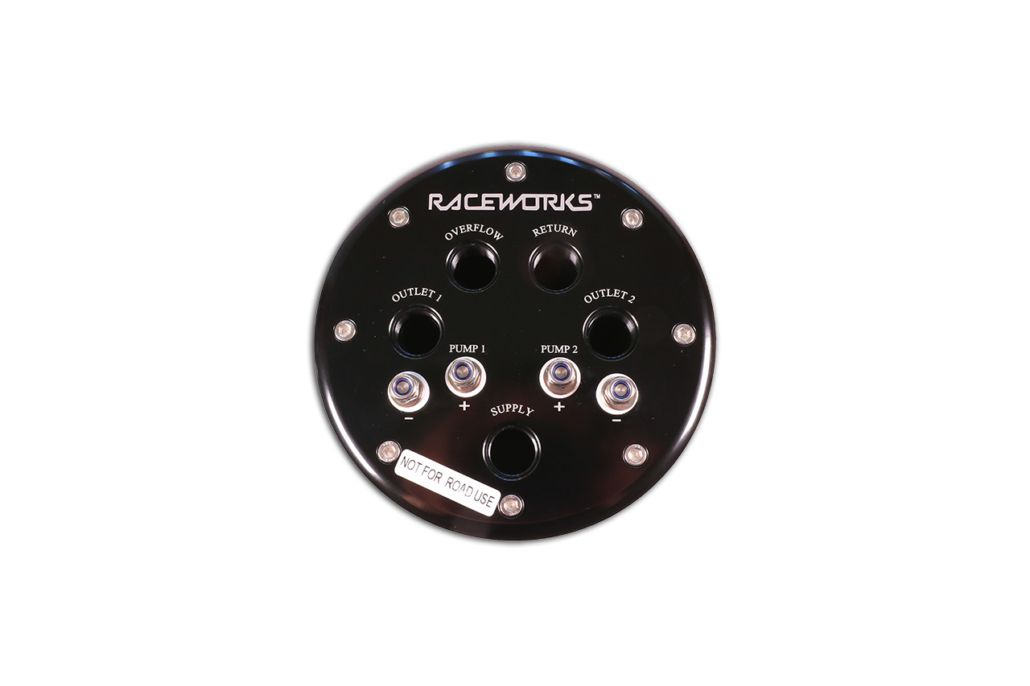

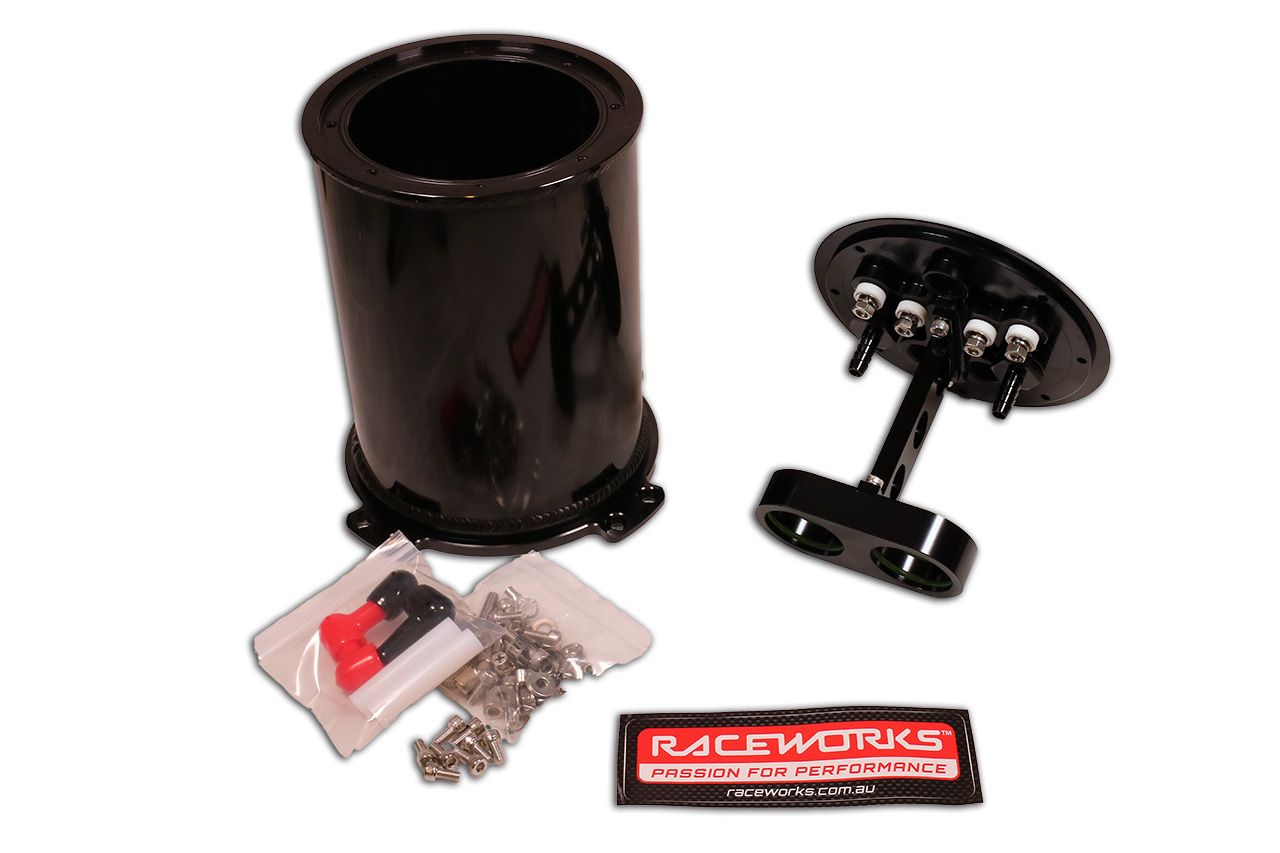

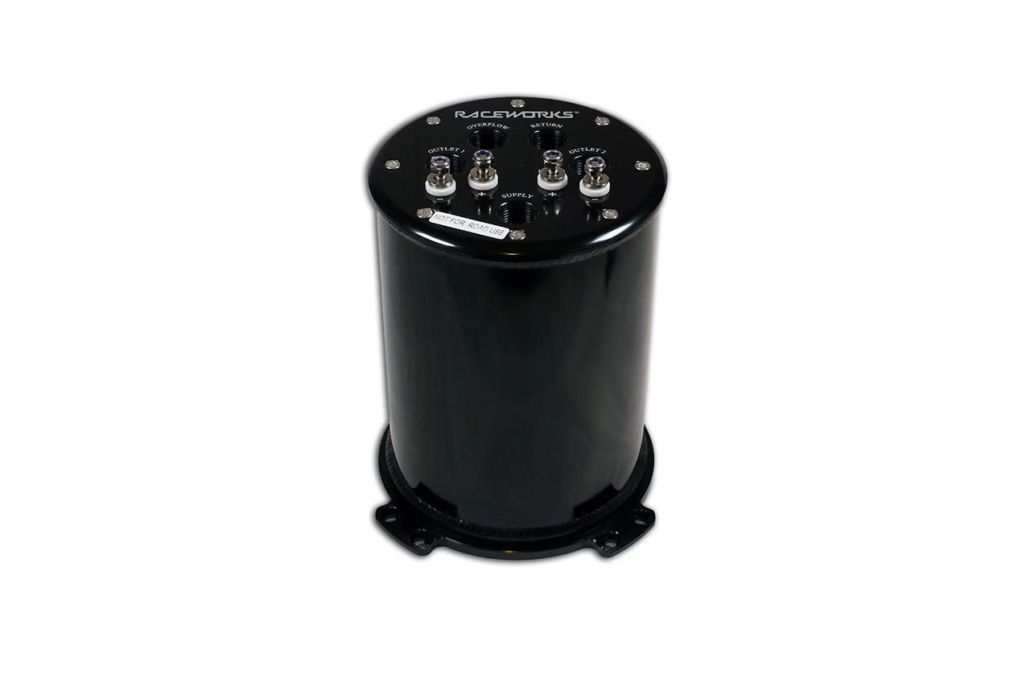

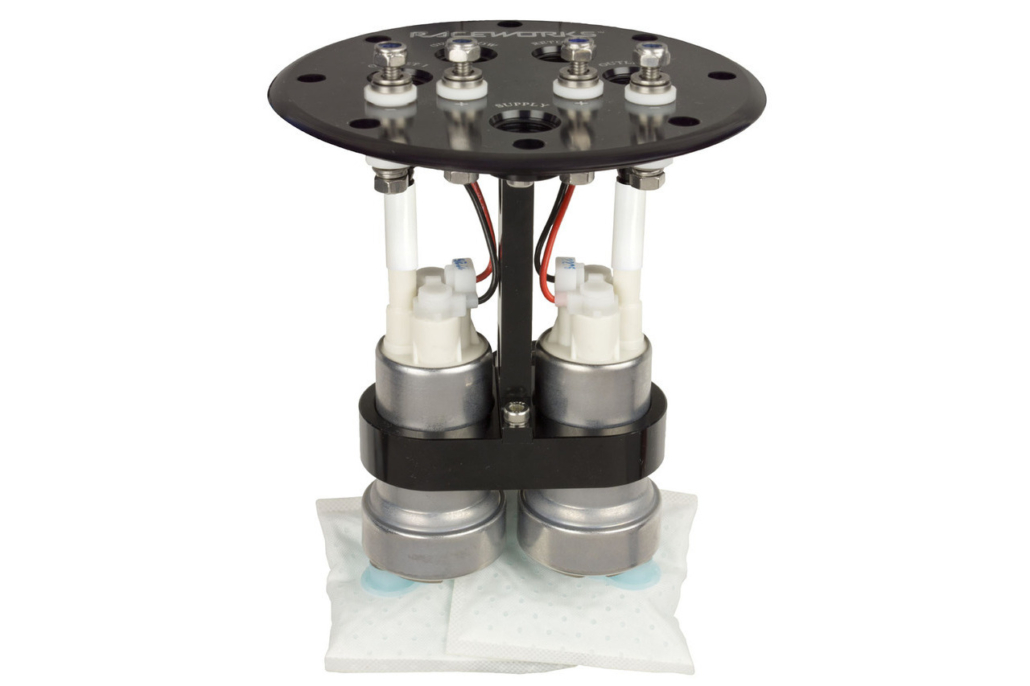

Raceworks 2.8 litre twin pump surge tank. This surge tank runs dual in tank pumps for a neat, quiet installation. Anodised black, this alloy surge tank can be fitted with one or two pumps, and has dual stainless electrical terminals allowing the pumps to be staged separately.
Specifications:
- E85 ready with Teflon seals, Viton O-Rings, and Teflon in-tank hose
- AN-8 O-Ring Ports, Suits up to 150 degree fittings.
- 2.8L Capacity when used with a single pump, or 2.6L capacity when used with twin pumps
- Height 225mm, Width 195mm, Depth 195mm
- Suits 39-40mm pumps
- For Single outlet when using twin pumps, use RWF-937-08BK log.
See our other listings for Fuel Pumps, AN fittings and E85 rated hose to plumb in your surge tank. We also have surge tank kits ready to go which include this tank and Twin Walbro 255, Twin Walbro 460 or Twin Walbro 525s.
Fuel Pump Compatibility List:
- EFP-500
- Walbro GSS340
- Walbro GSS341
- Walbro GSS342
- Walbro 400 F90000262
- Walbro 460 F90000267
- Walbro 460 HP F90000274
- Walbro 525
- Walbro 540
Manufacturer Part Number: ALY-083BK
