EA-FG Falcon External Gate Turbo Conversion Kit suit SOHC, Intech & Barra

Description

T.I. Performance have designed a new high performance external wastegate turbo kit for the SOHC, Intech & Barra platforms. Suits EA EB ED EF EL AU BA BF FG Falcon 4L. With a 6Boost external gate exhaust manifold, GTX3584 style turbocharger, and a comprehensive kit of fittings, we have hand selected these components based on their proven results.

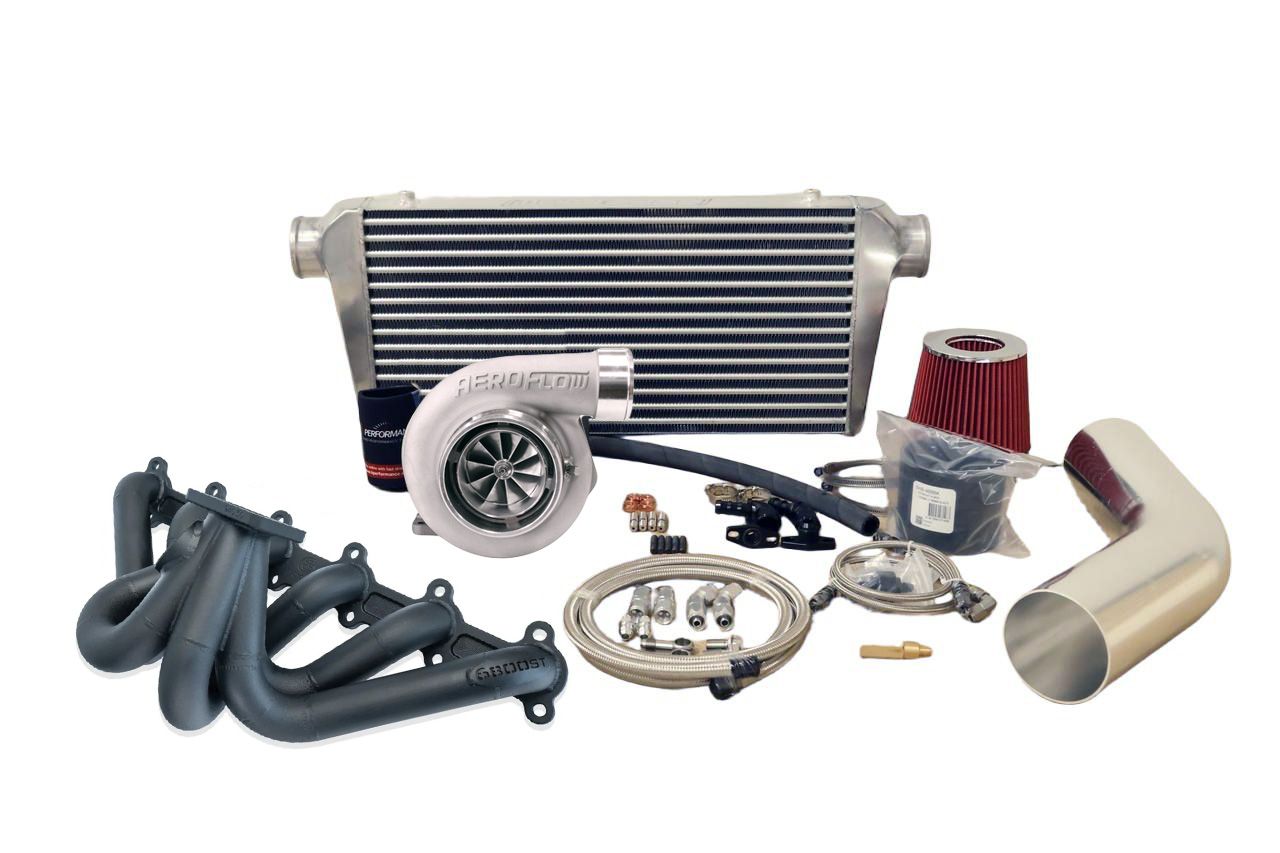

This turbo kit includes:

• 6Boost External Gate Turbo Exhaust Manifold with 50mm External Gate
• 6762 GTX3584 Style Ceramic Ball Bearing External Wastegate Turbocharger with CNC milled compressor wheel and V-Band rear housing
• Turbosmart GenV Progate 50mm 14psi wastegate
• Oil Supply Kit (including oil tee, braided lines, all adapters)
• Oil Drain Kit (including hose, clamps, flanges)
• Coolant Line Kit (including stainless AN-6 line & banjo fittings)
• Turbo Gaskets
• Turbo stud kit
• Dump pipe stud kit
• 4″ Pod Reusable Filter
• 4″ Turbo Intake Piping, Silicone Joiner & Clamps
• Aeroflow 600x300x76 or 450x300x76 Intercooler

We also have V-Band clamps available to fabricate your own dump, just contact us to order.

This GTX copy turbocharger is capable of power levels up to 900hp and will be limited by your boost ambition (and conrods!).

See our other items or contact us to select fuel system, heat management and engine management parts for your budget and power goals.

Frequently Asked Questions

What additional parts do i need for an external gate EA-FG Falcon Turbo Conversion?

To get this turbo kit running you will need to add a few parts, depending on your power goals and budget. We suggest the following at a minimum:

• 3″ intercooler piping (contact us for a kit to suit)
• 3″ silicone joiners and clamps
• Boost controller such or boost tee
• Boost gauge
• BOV such as this Turbosmart Kompact 34mm Dual Port
• Fuel system to support boost, pick from the following options:
  • EA-BF E85 – Walbro 460 Fuel Pump & Bosch 980cc Injectors
  • EA-BF 98 – Walbro 255 Fuel Pump & Bosch 440cc Injectors
  • FG NA plastic manifold 98 – FG NA 4 Bar Fuel Reg & FG NA 627cc Injectors (drop in)
  • FG NA plastic manifold E85 – FG NA 4 Bar Fuel Reg & Bosch 980cc Extended Nose Injectors w/ Raceworks short -> 3/4 length extensions (drop in)
  • FG Turbo cast manifold 98/E85 – FG Turbo 4 Bar Reg & Bosch 980cc 3/4 Injectors
  • Surge tank (if racing)
• Valve springs to handle the boost
• Tuning solution such as our Full House DIY Tuning Kit or Haltech Elite 750 for EA-AU, or our Tactrix OpenPort 2.0 cable for BA-FG Falcon with PCMTec
• Wideband O2 sensor to monitor your Air Fuel Ratio
• Some heat management to avoid melting brake boosters and wiring (eg. GT35 turbo beanie / some heat wrap / heat shield / plug boots / heat sleeve), and optionally, a decent exhaust system, surge tank, camshaft(s) to suit boost, etc.

Do I need a full turbo conversion for my Falcon?

If a full conversion kit with turbocharger, exhaust manifold and more seem a bit too much, simply contact us with more info on what you are trying to achieve with your ride and we can assist which parts will best suit your particular fuel type, engine, power goal and budget.

Contact us to build the right setup for your car today.
