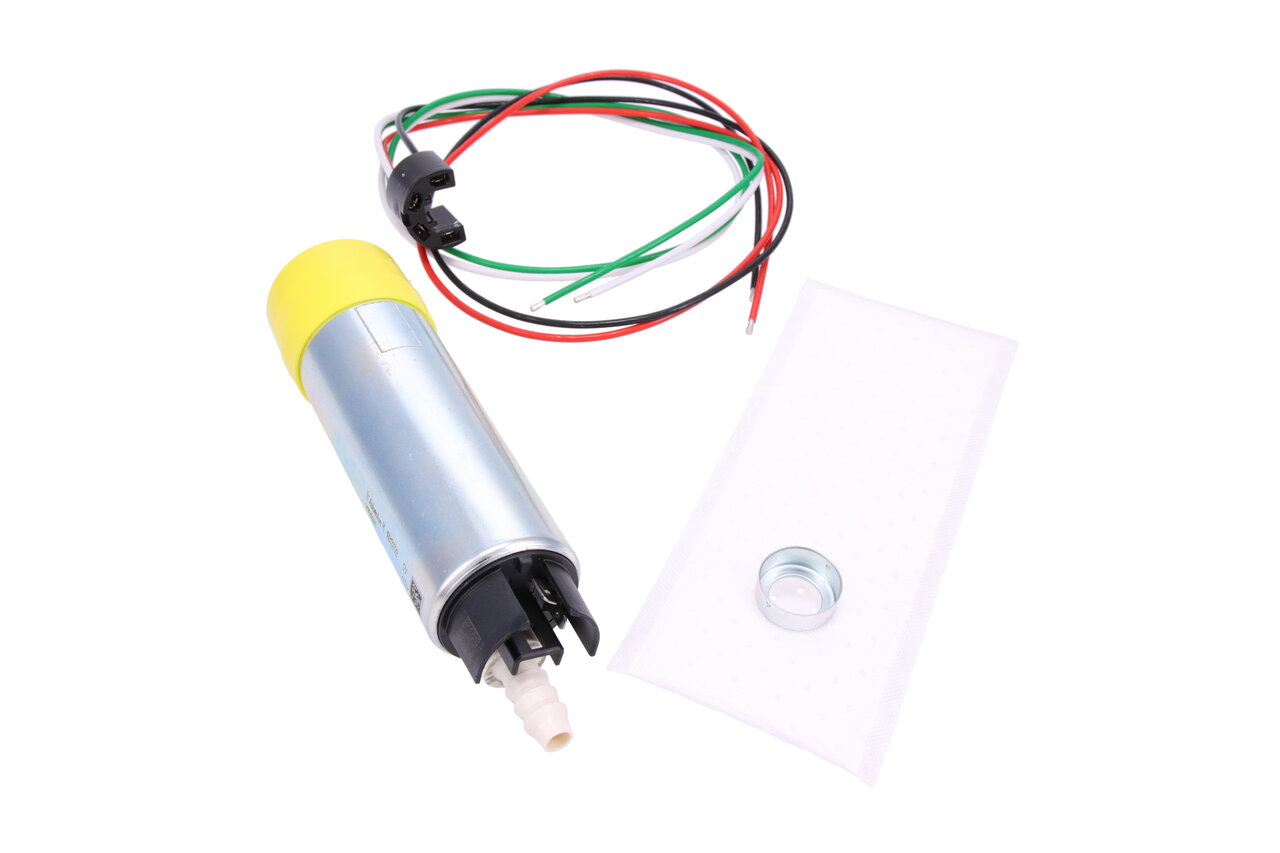

TI Automotive BKS1002 Brushless Fuel Pump

Description

TI Automotive BKS1000 / BKS1001 Brushless In-Tank E85 Fuel Pump

Outflowing all brushed pumps such as the Walbro 460 or 525, this monster of a fuel pump is capable of 570lph fuel flow and 1000hp on a single pump! Super popular in modern high power builds, this pump is E85 safe and warranted for use in E85. Capable of operating at up to 130psi system pressure. To be used with an aftermarket controller, like the BPC100, these represent a new approach to fueling high power racing engines. By providing enough fuel for 2000+ hp on ethanol at pressures as high as 150 psi from a single pump, the E5LM eliminates the need for multiple pump setups in many high horsepower applications.

Specifications:

• Flow rate: 570lph at 3 bar (520lph at 4 bar)
• Fittings: 9mm (3/8″) Barb (compression lock AN adapters available)
• Pressure rating: Up to 130psi
• Current Draw: 16A at 4 Bar
• Diameter: 39mm
• Height: 140mm (155mm including barb)
• Check valve: No

Walbro Part Number: BKS1002
