Description

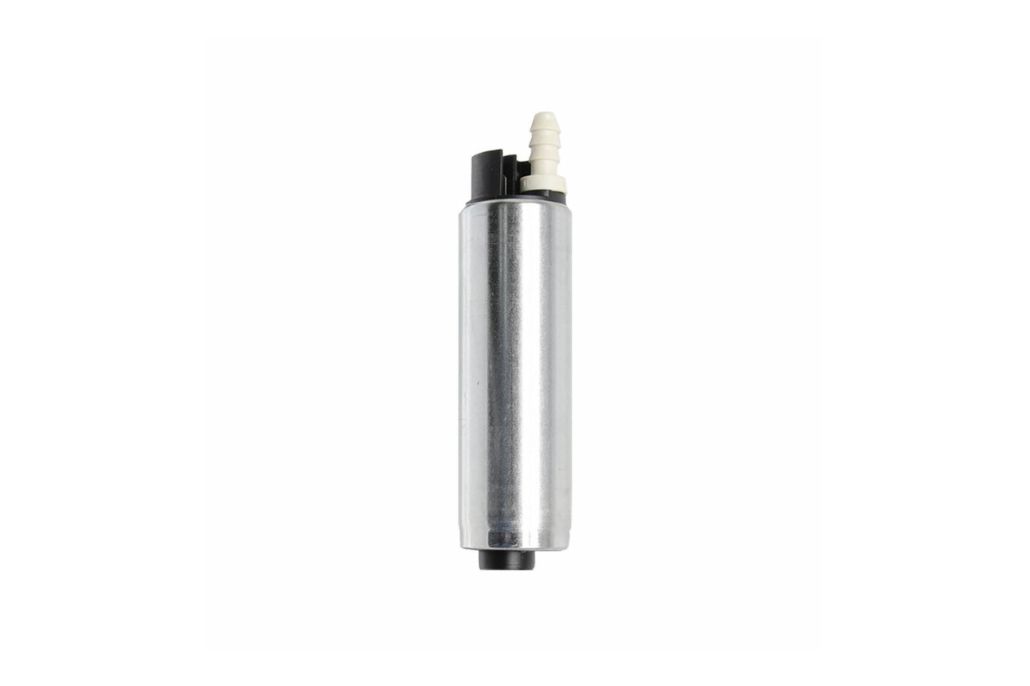

TI Automotive BKS1000 / BKS1001 Brushless In-Tank E85 Fuel Pump. Genuine local stock with warranty.
The BKS1001 is a next generation high pressure E5LM brushless PWM in-tank fuel pump kit. Supplied with PWM controller, this pump can vary its speed via PWM input from most common ECUs (eg. Haltech, Motec, Link etc), preventing issues with fuel heating or return back pressure, and allowing the pump to run at low speed at idle and ramp up when your engine needs more fuel just like a mechanical fuel pump. If you don’t have a spare PWM output the controller can also be triggered to run at half speed or full speed by a switched input.

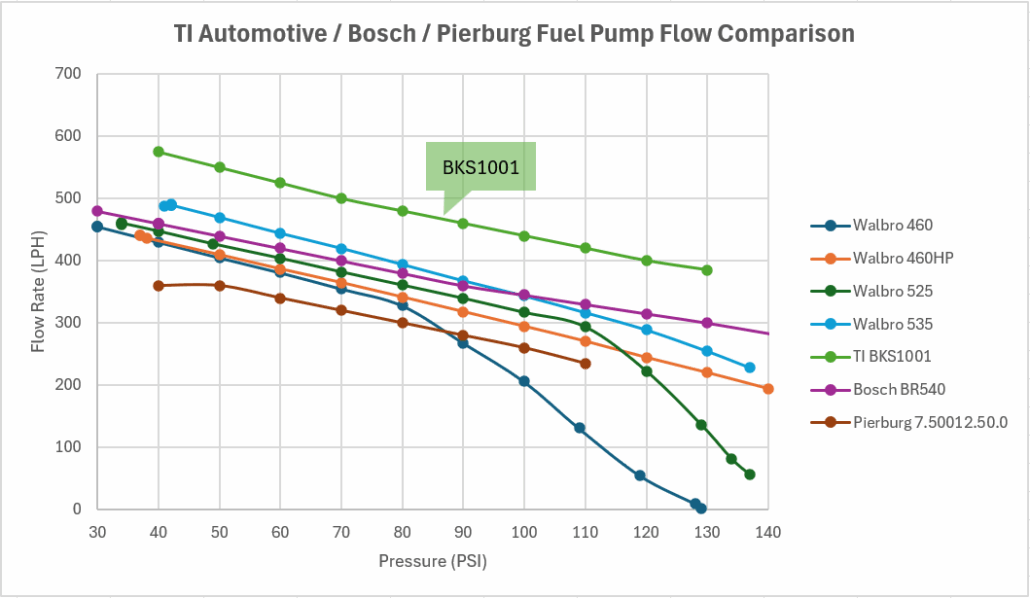

Outflowing all brushed pumps such as the Walbro 460 or 525, this monster of a fuel pump is capable of 570lph fuel flow and 1000hp on a single pump! Super popular in all modern high power builds due to its ultra low amp draw, this pump is E85 safe and warranted for use in E85. Capable of operating at up to 130psi system pressure so ideal for high boost applications with high base fuel pressure to maximise injector atomisation.
Specifications:
- Flow rate: 570lph at 3 bar (520lph at 4 bar)
- Fittings: 9mm (3/8″) Barb (compression lock AN adapters available)
- Pressure rating: Up to 130psi
- Current Draw: 16A at 4 Bar
- Diameter: 39mm
- Height: 140mm (155mm including barb)
- Check valve: No
- Includes: 30 Micron Inlet Filter, PWM Controller, Instructions.
Walbro Part Number: BKS1001
