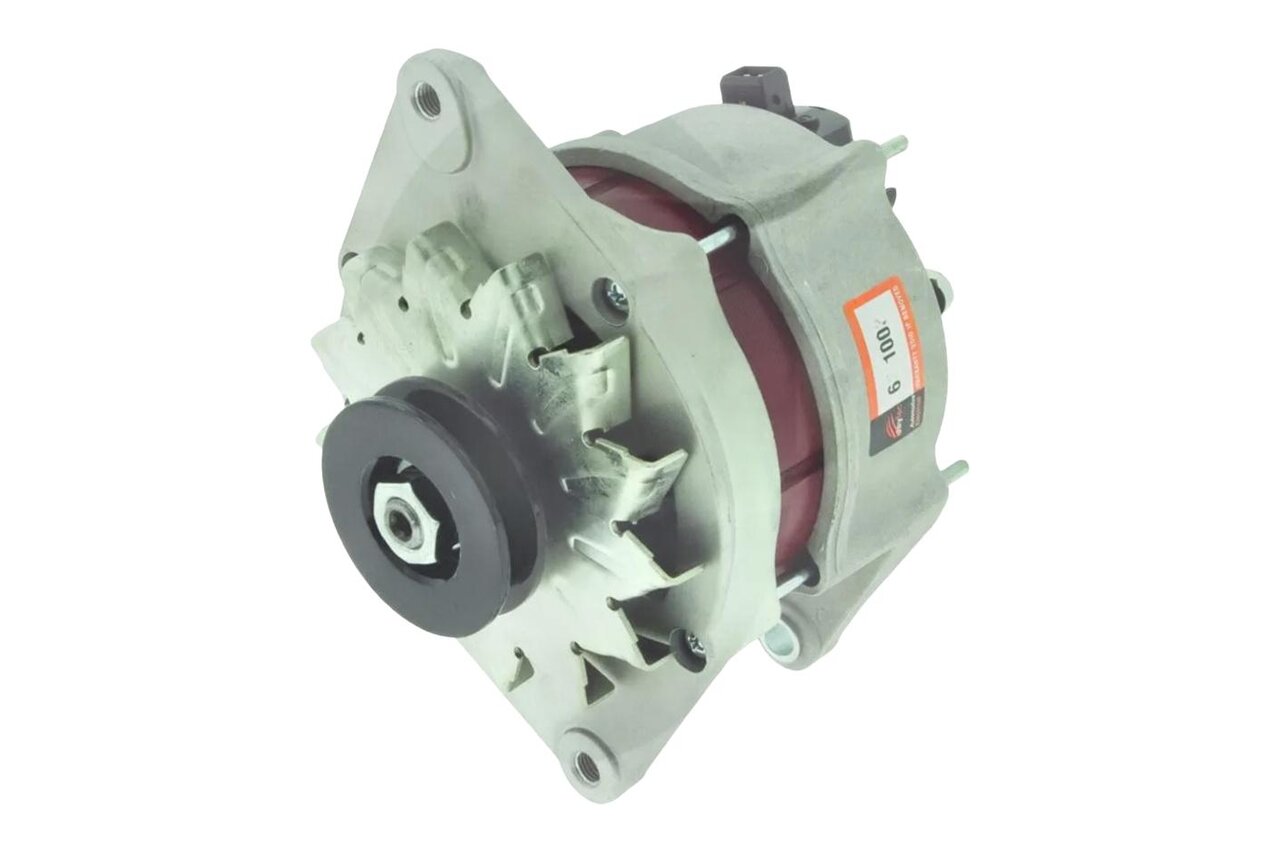

Jaylec Alternator suit EA Falcon, NA Fairlane 85A SOHC 3.9L

Description

Jaylec Alternator suit EA Falcon, NA Fairlane 85A SOHC 3.9L.

Jaylec is an Australian automotive aftermarket brand launched in 2006 and backed by CoolDrive. Jaylec specialises in alternators, starter motors, and rotating electrical components designed to meet or exceed OEM specifications, making them suitable for performance, street, 4WD, and motorsport. Jaylec offers strong warranty coverage, including up to 3 years for passenger vehicles, 2 years for 4WD and light commercial, and 1 year for heavy-duty or specialist use.

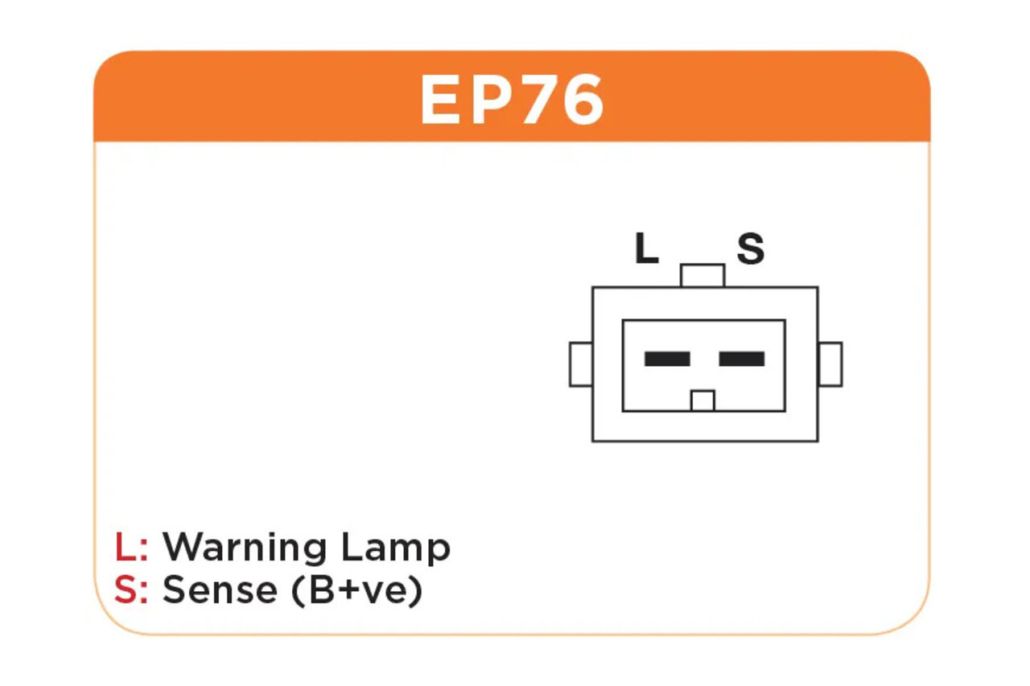

For connector see EP76.

Specifications:

• Voltage: 12V
• Amperage: 85A
• Mount Leg ID: 68mm
• C-C Mounts: 187mm
• Hole ID Top: M10
• Hole ID Bottom: 10mm, M10
• Shaft Size: 17mm
• Pulley Type: Single “A”:
• Pulley Grooves: 1
• Pulley Diameter: 70mm
• Regulator Type: Internal
• Connections Plug #: EP76
• Terminals: B+, L, S
• Excitation: External
• Ground: Negative
• Weight (Kg): 6.0kg

Manufacturer Part Number: 65-1003
