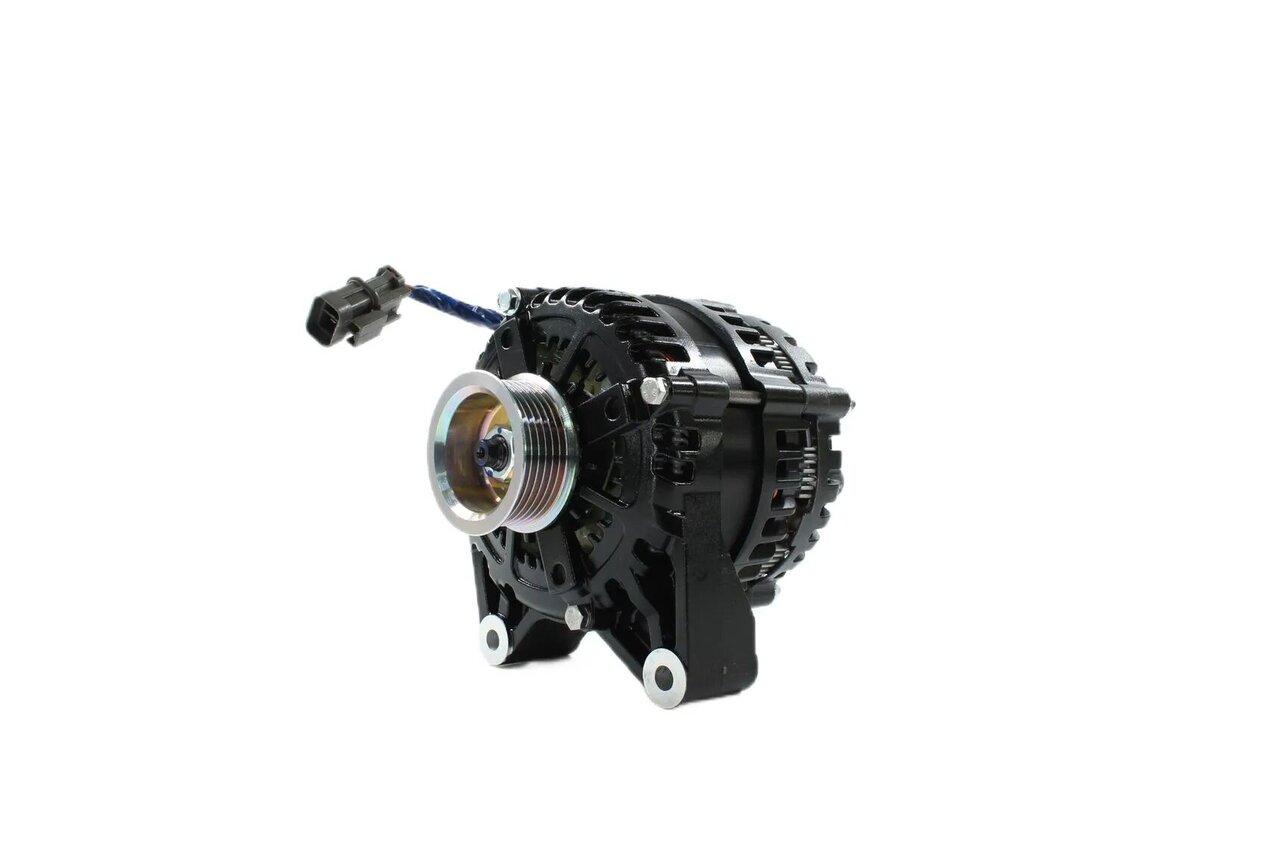

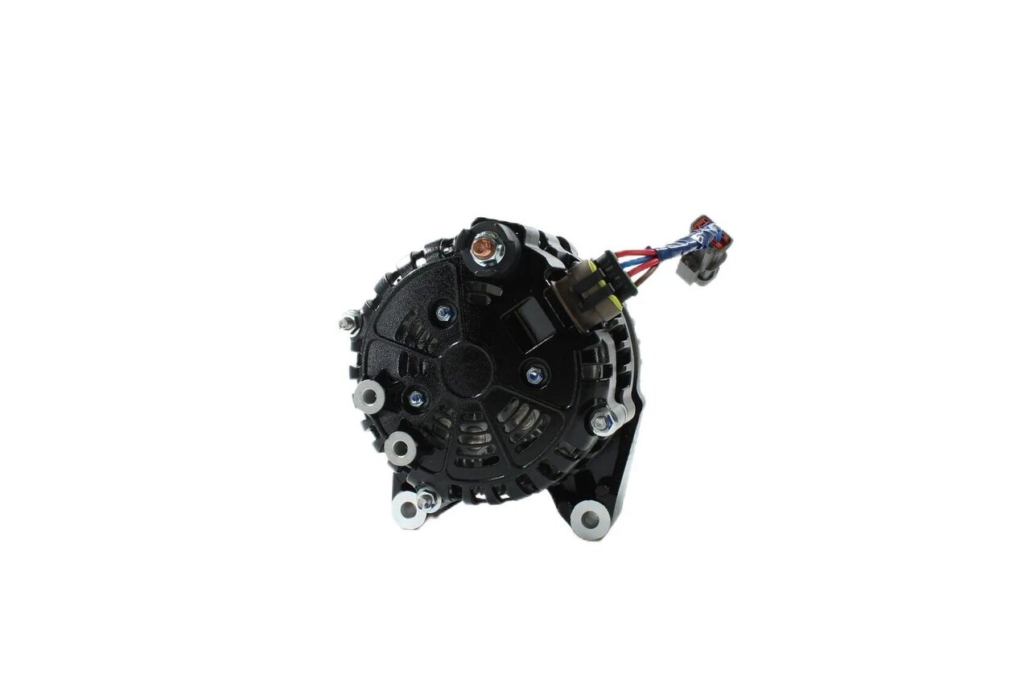

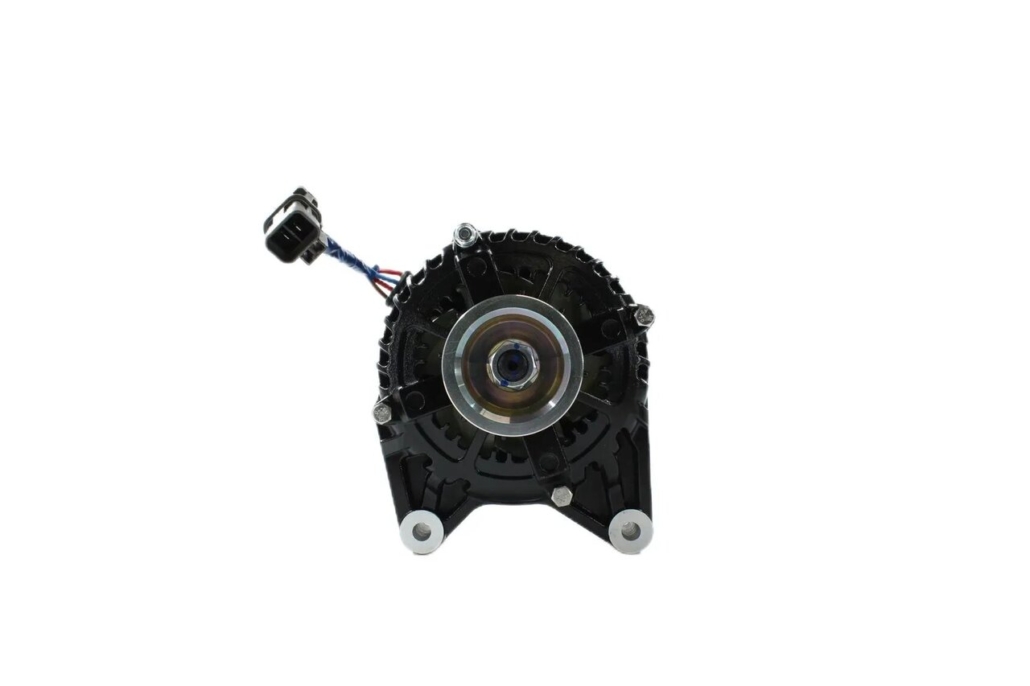

Jaylec Alternator Black Series 240A suit AU Falcon 4L Intech, BA Falcon Barra 4L 2 Pin

Description

Jaylec Alternator Black Series 240A suit AU Falcon 4L Intech, BA Falcon Barra 4L 2 Pin.

The Black Series Alternators are designed for performance vehicles requiring increased electrical output beyond OE capabilities. Offering higher amperage at lower cut in speeds, they are ideal for vehicles running high demand electrical systems.

Developed through a precise design and testing process, each alternator features efficient internal cooling and high quality bearings which ensure long term reliability. Built as a direct replacement, Black Series alternators are engineered to meet or exceed OE performance in demanding street and motorsport applications. Jaylec products are backed by a 3-year/25,000km warranty, providing peace of mind for both mechanics and vehicle owners.

This alternator is fitted with OE stator, rotor, regulator and rectifier. Please note a battery positive wiring upgrade is needed for this alternator.
For connector see EP39.
To fit this alternator to AU Series 1, use CPS-071 to reterminate your engine loom.

Specifications:

• Voltage: 12V
• Amperage: 240A
• Mount Leg ID: 45mm
• C-C Mounts: 110mm
• Hole ID Top: 9mm
• Hole ID Bottom: 9mm
• Shaft Size: 17mm
• Pulley Type: 6PV, FIXED
• Pulley Belt Width:
• Pulley Grooves: 6
• Pulley Diameter: 54mm
• Regulator Type: INTERNAL
• Series:
• Connections Plug #: EP39
• Terminals: B+, L, S
• Excitation: EXTERNAL
• Ground: NEGATIVE
• Weight (Kg): 9.0KG

Vehicles:

• AU Falcon 4L Intech Series II, III
• BA Falcon 4L Barra

Manufacturer Part Number: BKS-240BA
