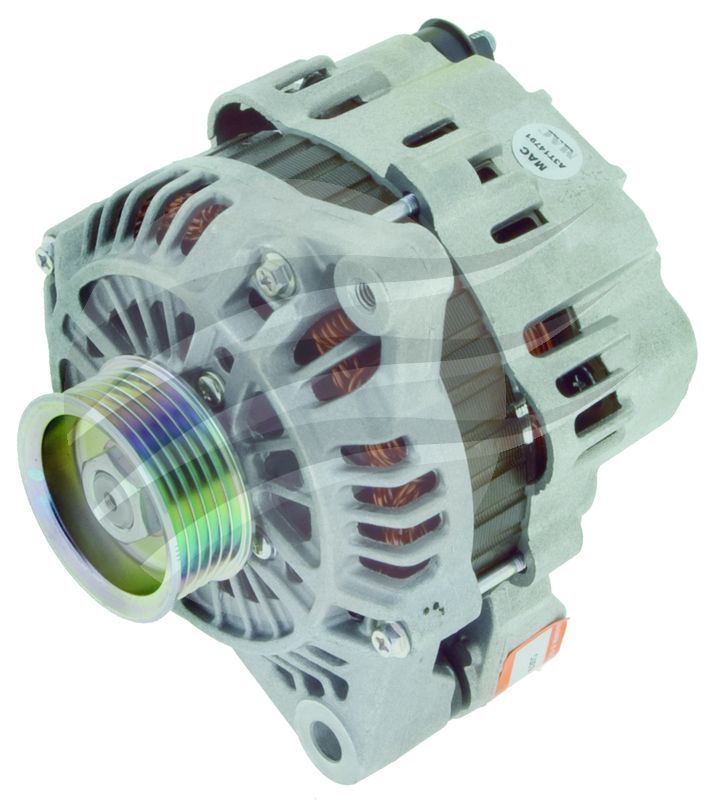

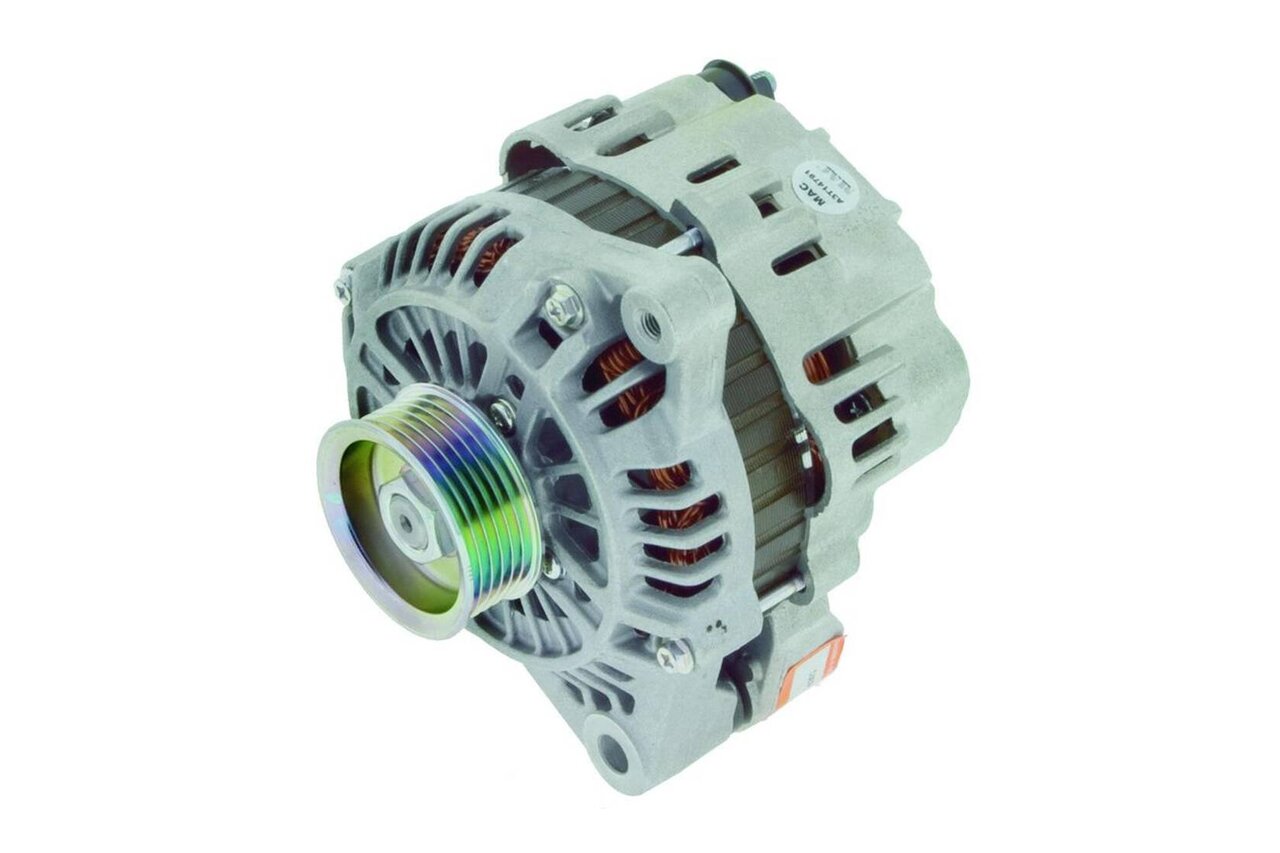

Jaylec Alternator suit EB ED EF EL XH Falcon Windsor 5L V8 110A (2 Pin)

Description

Jaylec Alternator suit EB ED EF EL XH Falcon Windsor 5L V8 110A (2 Pin).

Jaylec is an Australian automotive aftermarket brand launched in 2006 and backed by CoolDrive Auto Parts. Jaylec specialises in alternators, starter motors, and rotating electrical components designed to meet or exceed OEM specifications, making them suitable for performance, street, 4WD, and motorsport applications. Products are quality tested for reliability and consistent electrical output under demanding conditions. Jaylec offers strong warranty coverage, including up to 3 years for passenger vehicles, 2 years for 4WD and light commercial, and 1 year for heavy-duty or specialist use.

Specifications:

• Voltage: 12V
• Amperage: 110A
• Mount Leg ID: 76mm
• C-C Mounts: 153mm
• Hole ID Top: M8
• Hole ID Bottom: 11mm
• Shaft Size: 17mm
• Pulley Type: 6PV, FIXED
• Pulley Belt Width:
• Pulley Grooves: 6
• Pulley Diameter: 63
• Regulator Type: INTERNAL
• Series:
• Connections Plug #:
• Terminals: B+,
• Excitation: EXTERNAL
• Ground: NEGATIVE

Manufacturer Part Number: 65-6355
