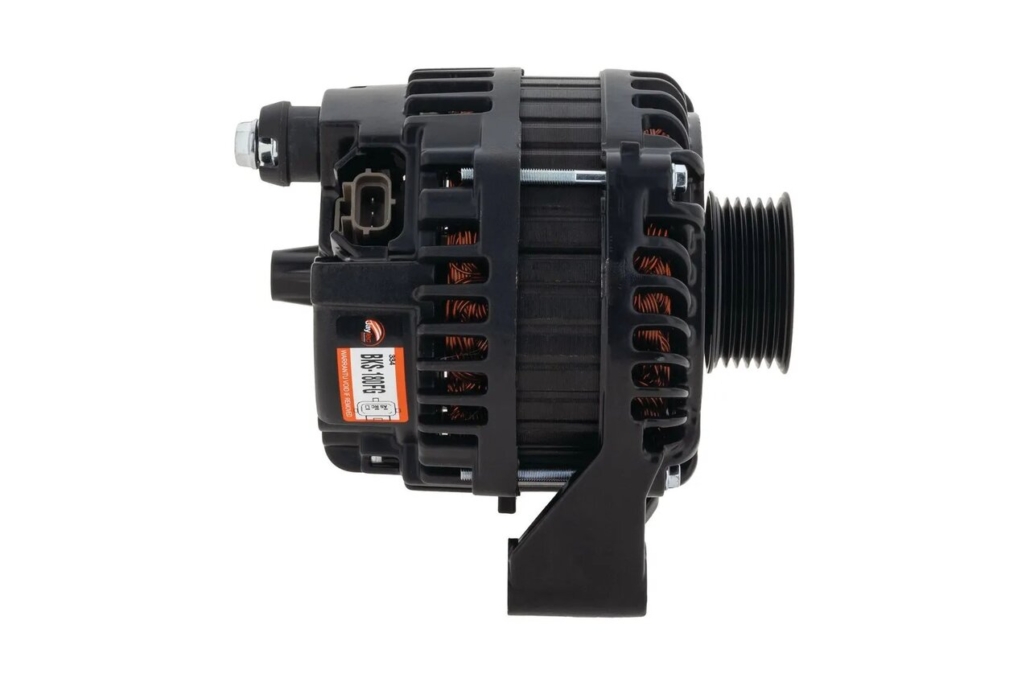

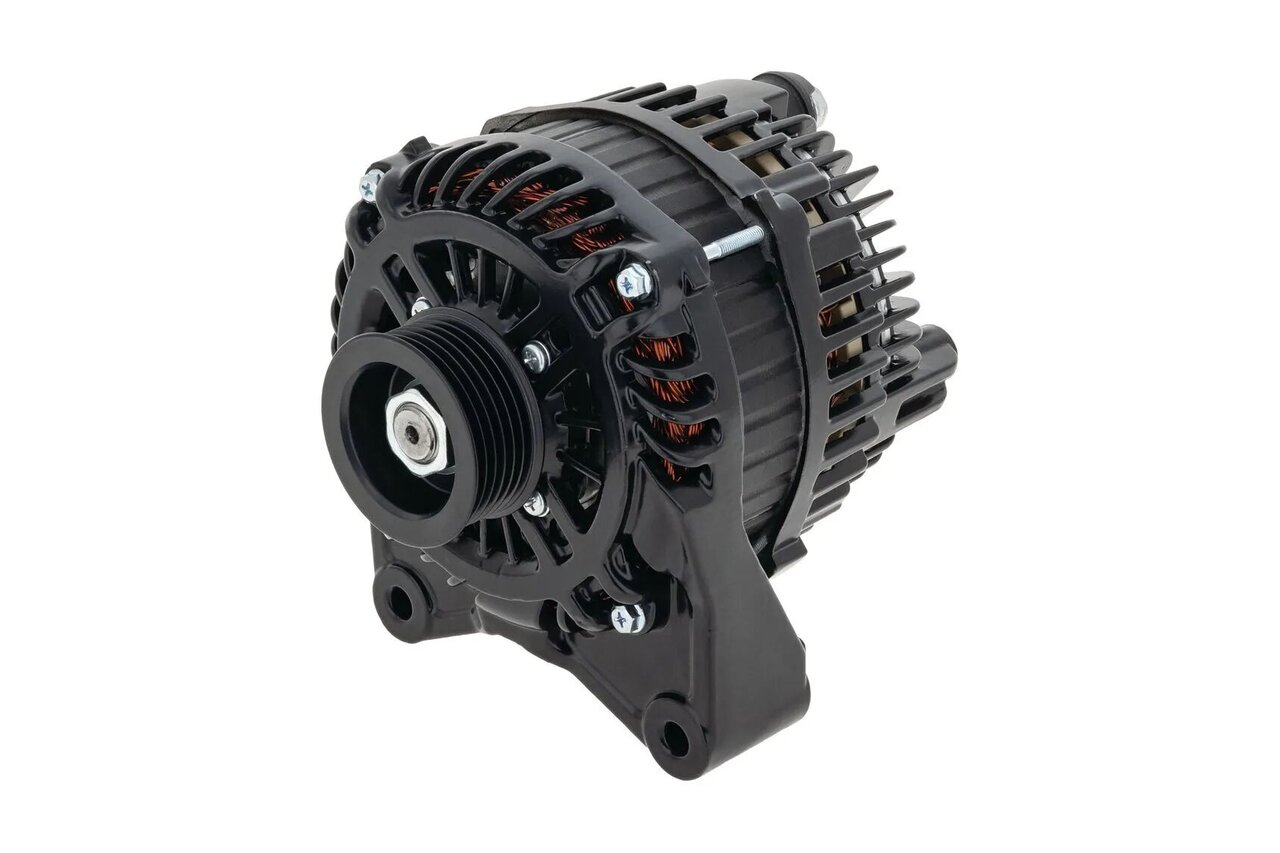

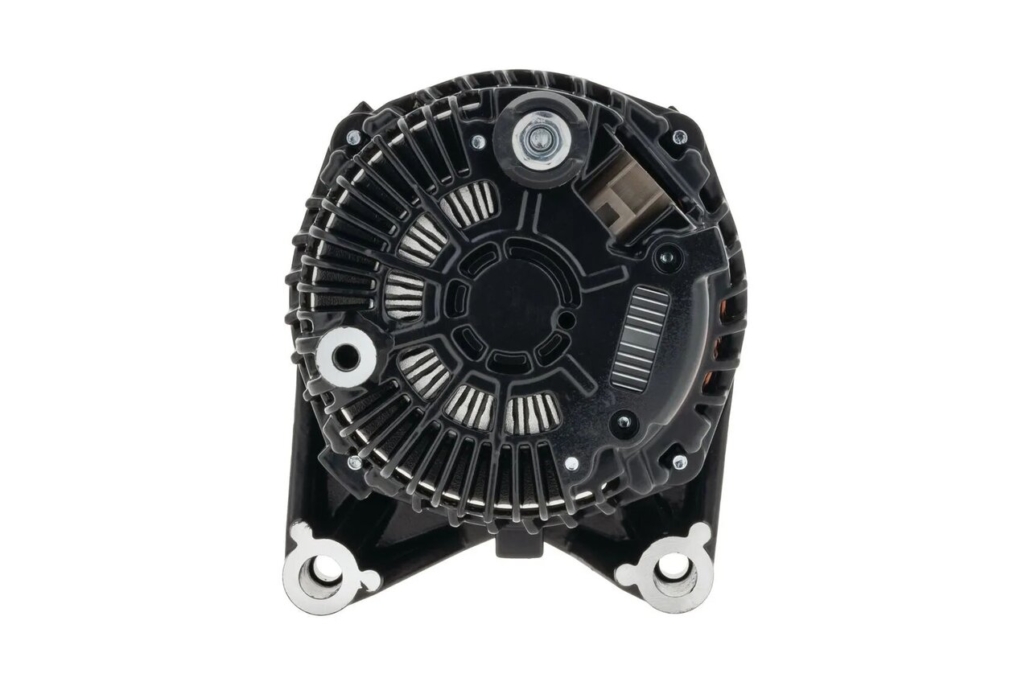

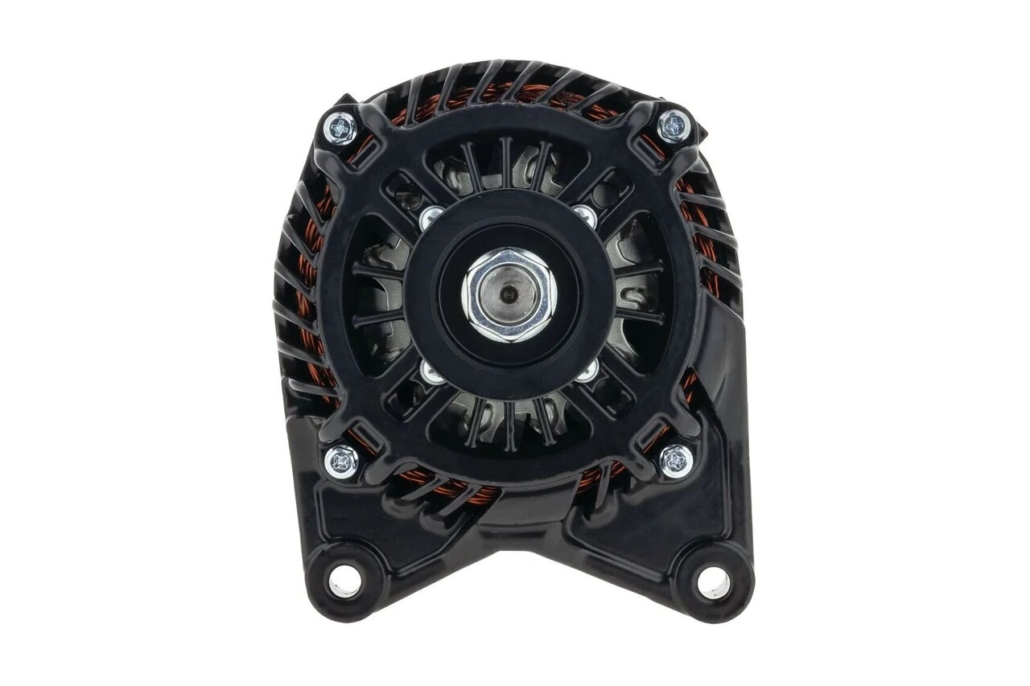

Jaylec Alternator Black Series 180A suit BF FG FG X Falcon, SY SZ Territory Barra 4L

Description

Jaylec Alternator Black Series 180A suit BF FG FG X Falcon, SY SZ Territory Barra 4L 180A.

The Black Series Alternators are designed for performance vehicles requiring increased electrical output beyond OE capabilities. Offering higher amperage at lower cut in speeds, they are ideal for vehicles running high demand electrical systems.

Developed through a precise design and testing process, each alternator features efficient internal cooling and high quality bearings which ensure long term reliability. Built as a direct replacement, Black Series alternators are engineered to meet or exceed OE performance in demanding street and motorsport applications. Jaylec products are backed by a 3-year/25,000km warranty, providing peace of mind for both mechanics and vehicle owners.

For connector see CPS-037.

Specifications:

• Voltage: 12V
• Amperage: 180A
• Mount Leg ID: 45mm
• C-C Mounts: 110mm
• Hole ID Top: 9mm
• Hole ID Bottom: 9mm
• Shaft Size: 17mm
• Pulley Type: 6PV, FIXED
• Pulley Belt Width:
• Pulley Grooves: 6
• Pulley Diameter: 54mm
• Regulator Type: Internal
• Connections Plug #: EP131
• Terminals: B+, AS, RC, LI
• Excitation: External
• Ground: Negative
• Weight (Kg): 8.0kg
• Manufacturer Type:

Vehicles:

• BF FG Falcon and SX SZ Territory with 3 wire alternator plug.

Manufacturer Part Number: BKS-180FG
