AU Falcon 6 Cylinder and V8 EEC ECU Pinouts
Here at T.I. Performance we have loads of parts to suit the AU Falcon. We also aim to share plenty of useful information about these vehicles. Here are the PCM pinouts for the AU Falcon V8 and 6 Cylinder.

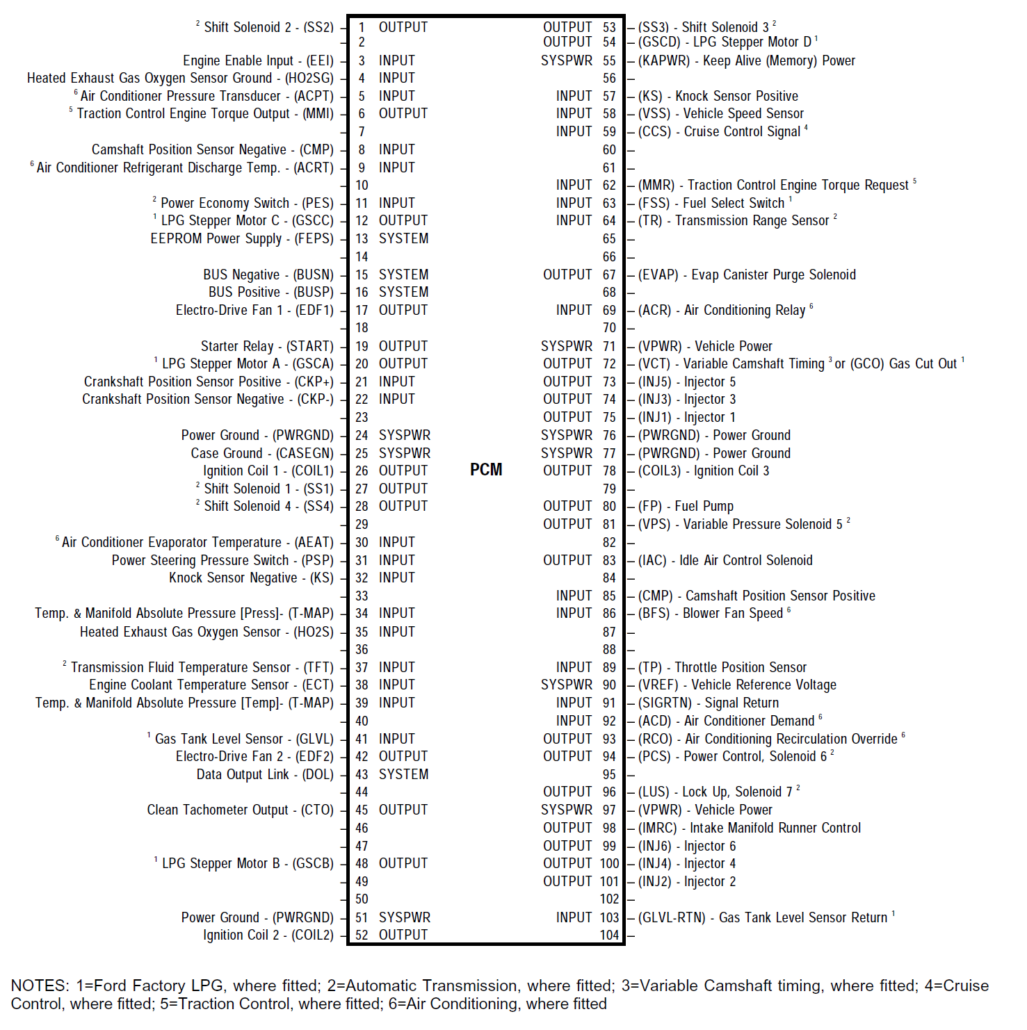

Intech 6 Cylinder

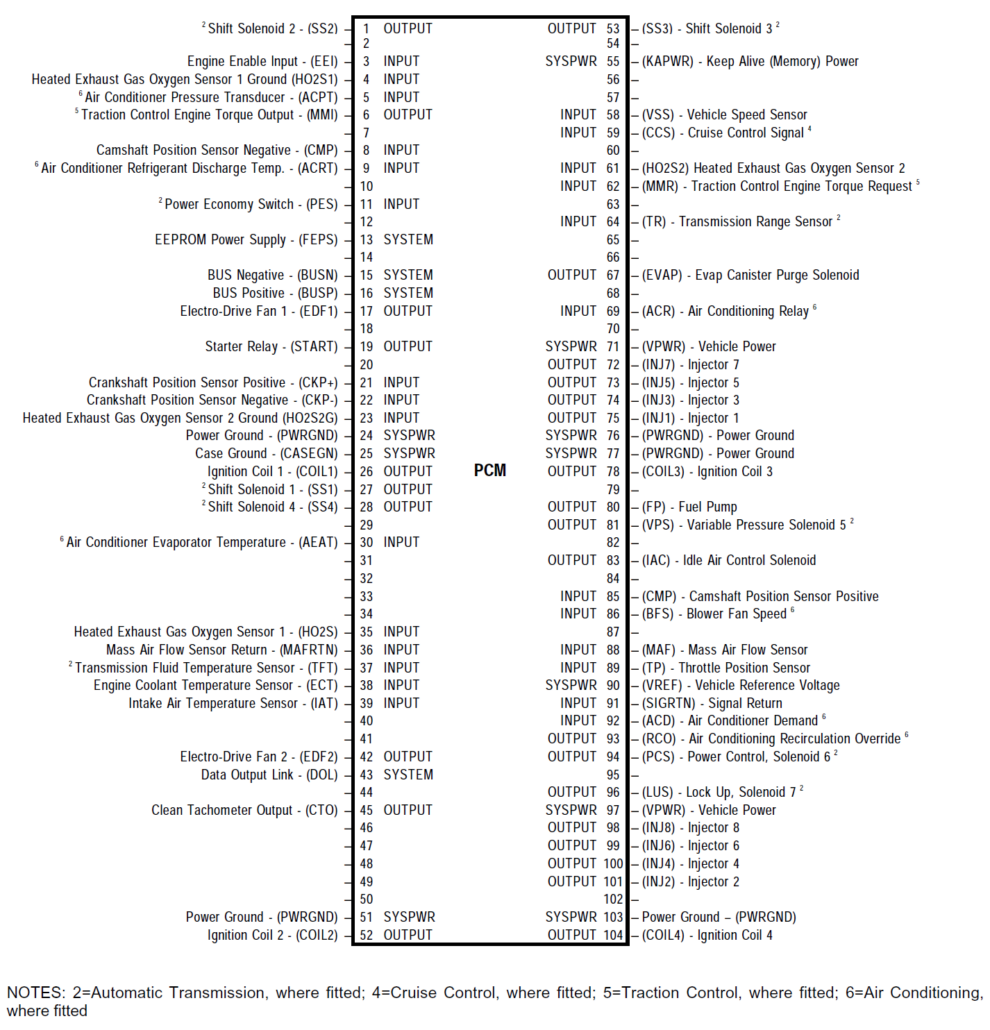

Windsor V8
