Description

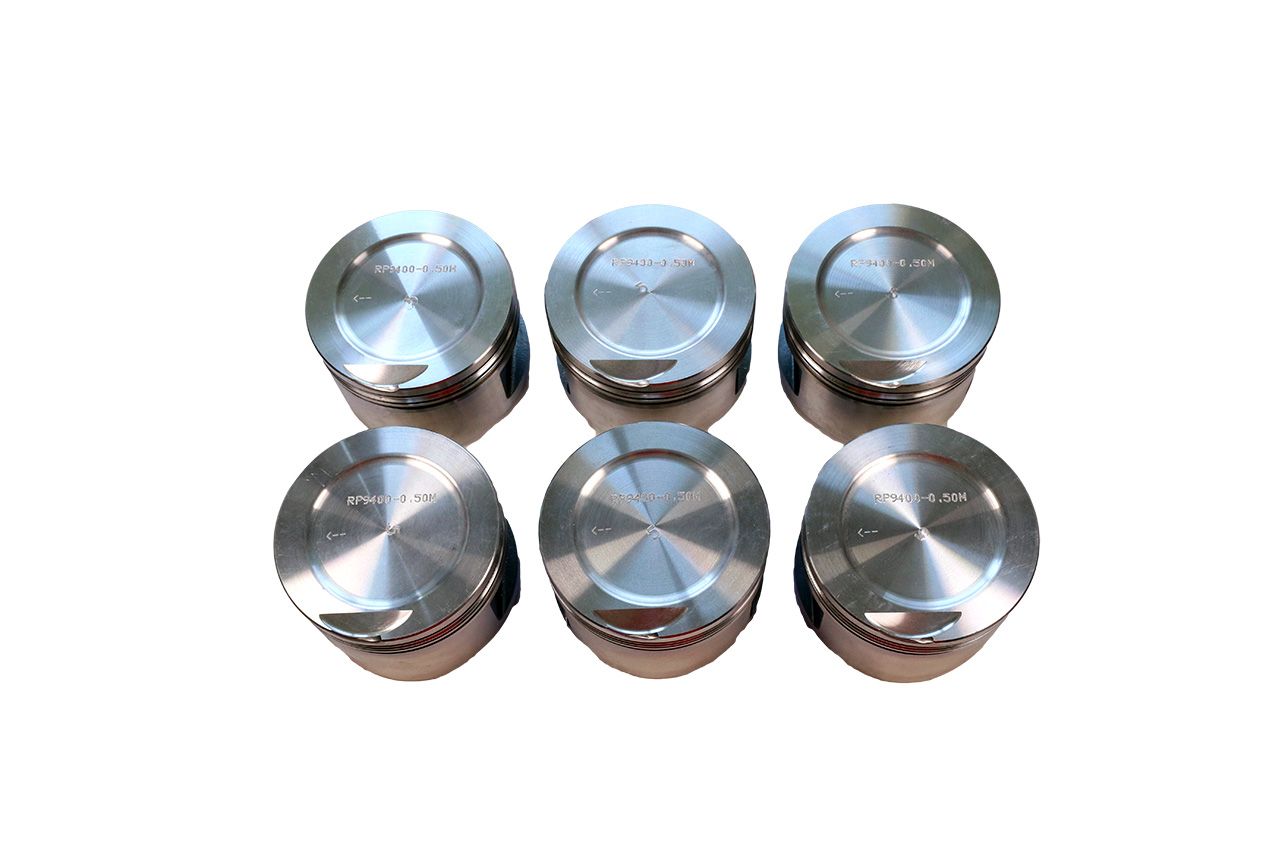

Silvolite Piston and Pin Set to suit AU Falcon 4L 6 Cylinder engine. These are a high quality piston made by the American company United Engine & Machine, who have been making aftermarket pistons since 1922.
Cast pistons with standard dish.
Available in 020 and 040 (0.50, 1.00) sizing.
Specifications:
- Piston Set: 6 x Piston & Pins
- Std Bore Size: 92.30mm
- Size: 0.50mm / .020″, 1.0mm / .929″
- Head Type: 9.3cc Dish Top with 1 Valve Relief
- Piston Type: Cast Hypereutectic
- Length: 53.59mm
- Comp Height: 30.68mm – 3.38mm
- Pin Size: 23.17mm x 65.98mm
- Pin Type: Press Fit
- Skirt Coating: Yes
- Top Ring Width: 1.20mm
- 2nd Ring Width: 1.50mm
- Oil Ring Width: 3.00mm
Manufacturer Part Number: 6P1133-0.50
