Silvolite Piston & Pin Set suit BA Falcon Barra 4L 6 Cyl

Description

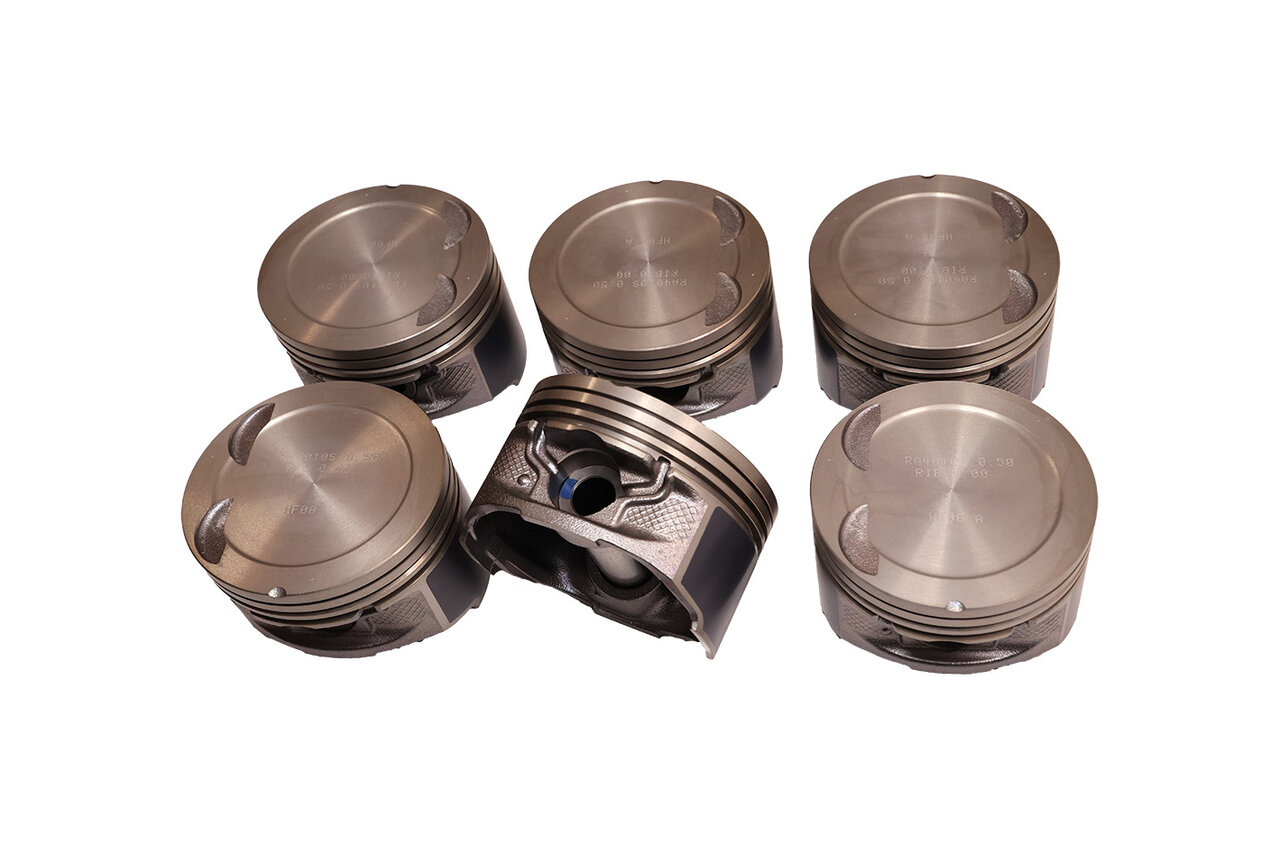

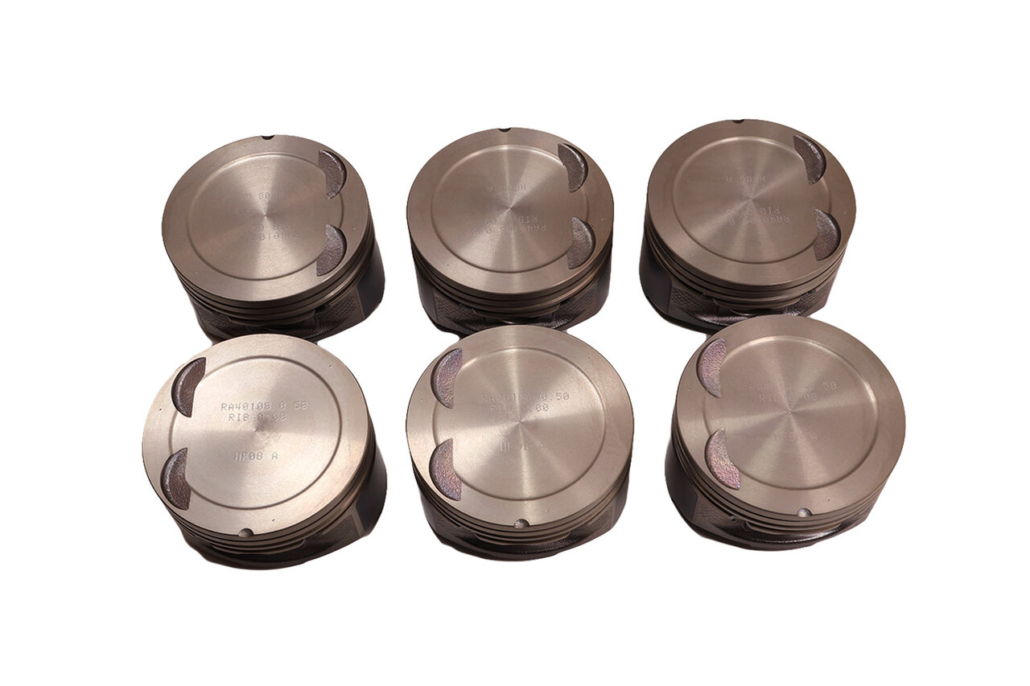

Silvolite Piston & Pin Set suit BA Falcon Barra 4L 6 Cyl. Available in STD, 1.50, 1.00 sizes. We ship STD unless specified at checkout.

Cast piston suits Ford BA Falcon Barra 4L 6 Cyl NA. 9.7:1 comp, suitable for low boost / NA rebuilds. Perfect to drop compression in BF/FG engines. Low friction skirt coating.

Specifications:

• Piston Set: 6 x Piston & Pins
• Std Bore Size: 92.30mm
• Size: Std
• Head Type: Dish Top with 2 Valve Relief
• Piston Type: Cast
• Length: 56.30mm
• Comp Height: 30.82mm – 0.50mm
• Pin Size: 23.17mm x TBA
• Pin Type: Press Fit
• Skirt Coating: Yes
• Piston to Bore: See Label on Box
• Top Ring Width: 1.20mm
• 2nd Ring Width: 1.50mm
• Oil Ring Width: 3.00mm
• Ring Set: 2C4931
• Replaces 6MKRY4010S

Suits the following engines:

• BA Falcon Barra 4L

Manufacturer Part Number: 6P1138-STD
