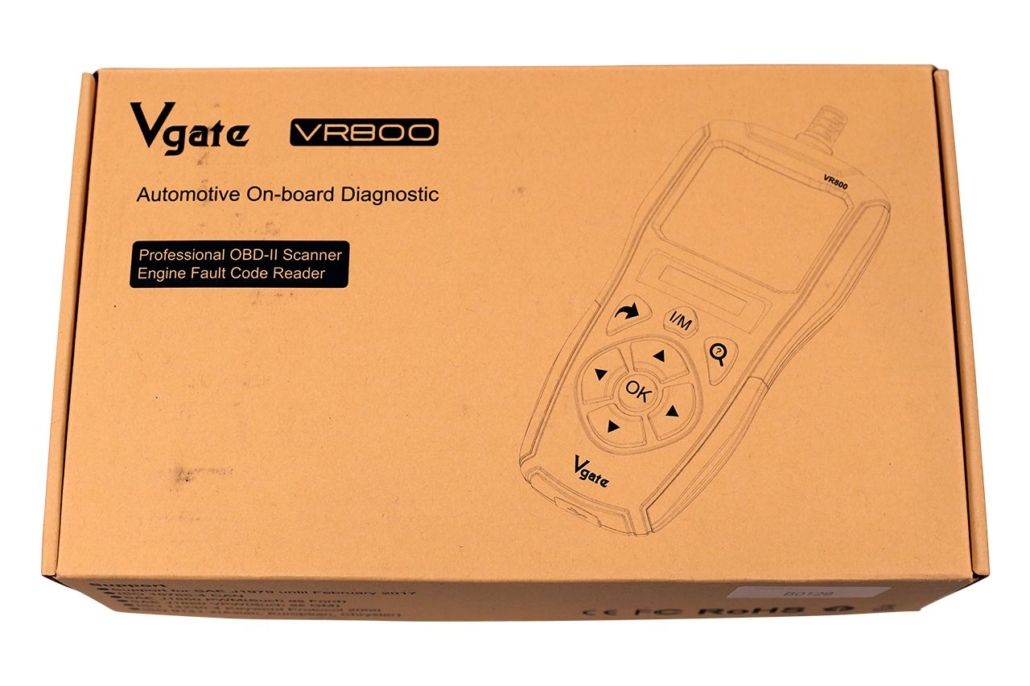

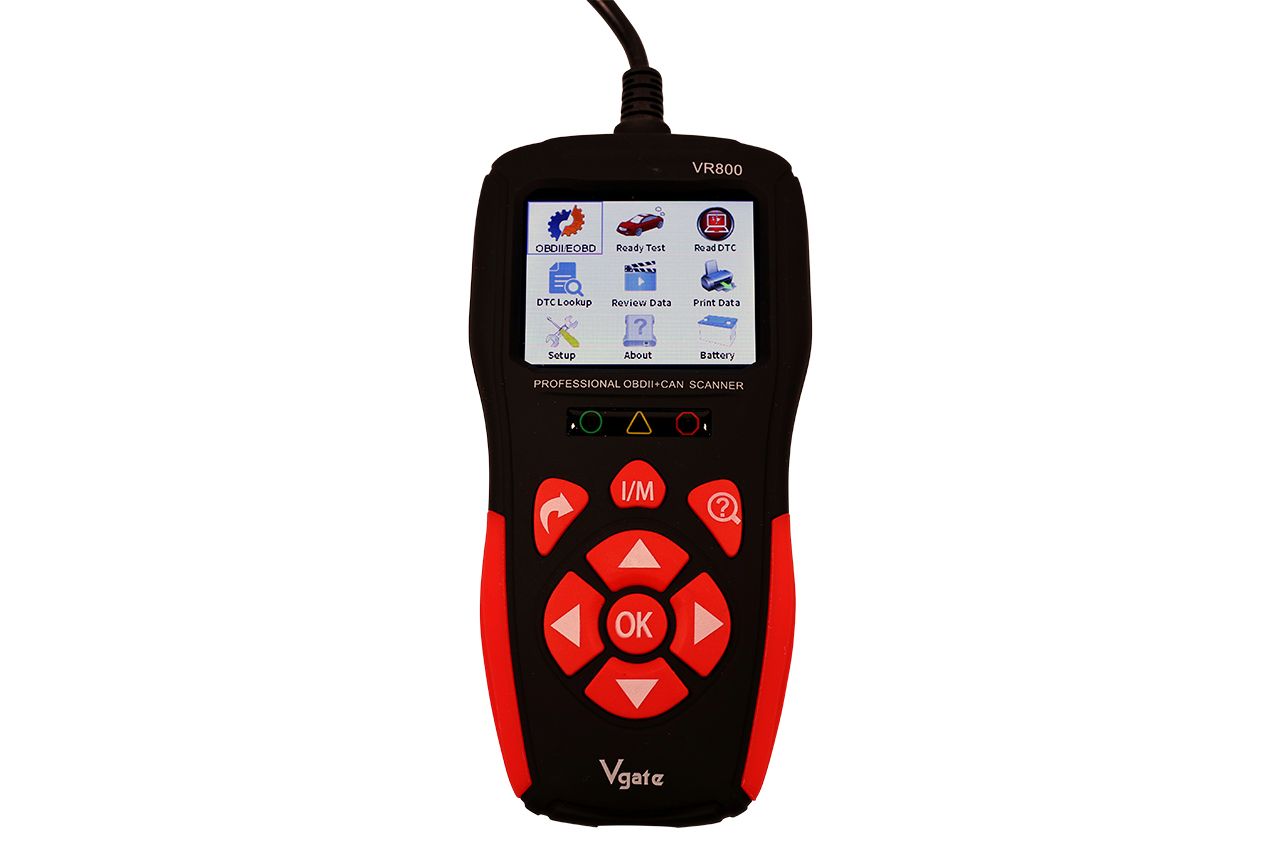

VGate VR800 Hand Held OBD2 Scan Tool / Code Reader with LCD Screen

Description

VGate VR800 Hand Held OBD2 Scan Tool / Code Reader / Scanner with LCD Screen. With this tool you can:

• Read and clear OBD2 DTC Fault Codes, clear Check Engine Light (CEL)
• Live data log engine status (eg. fuel trims, boost, ignition advance, etc)
• Monitor fuel economy, O2 and fuel trim
• View freeze frame data
• Measure battery health

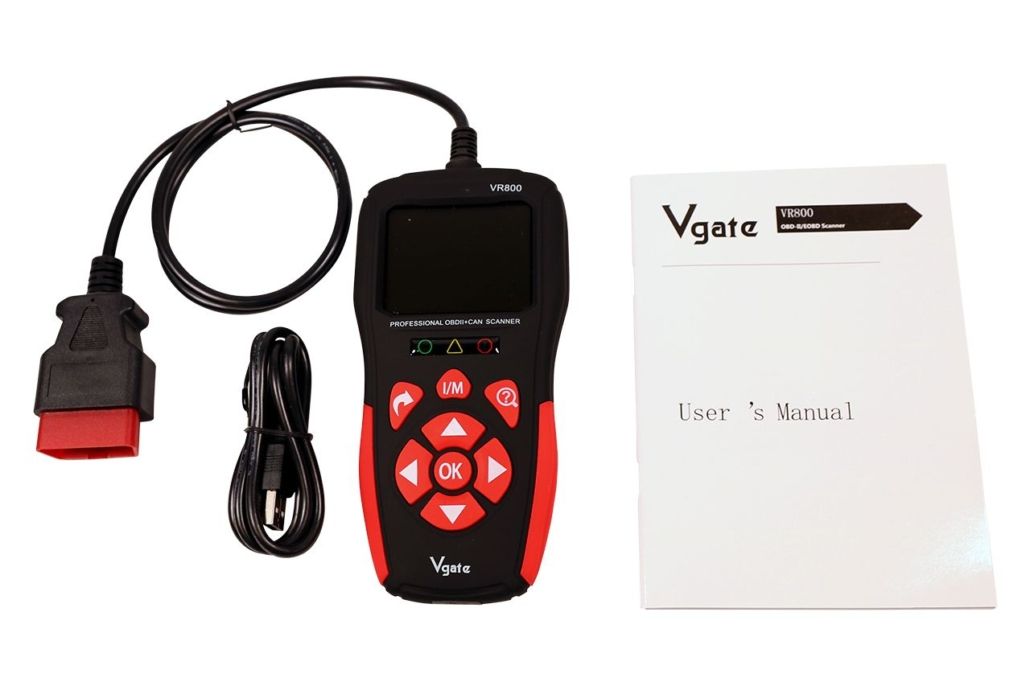

Includes scan tool, instruction manual and USB cable for optional PC link.

Specifications:

• Compliant with all OBD2 protocols, including
  • SAE J1850 PWM (41.6 Kbaud)
  • SAE J1850 VPW (10.4 Kbaud)
  • ISO9141-2 (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
  • ISO14230-4 KWP2000 (fast init, 10.4 Kbaud)
  • ISO15765-4 CAN (11bit ID, 500 Kbaud)
  • ISO15765-4 CAN (29bit ID, 500 Kbaud)
  • ISO15765-4 CAN (11bit ID, 250 Kbaud)
  • ISO15765-4 CAN (29bit ID, 250 Kbaud)
  • SAE J1979 protocol
• Supports multiple languages: English, French, German, Italian,Spanish, Russian, Polish, Portuguese.
• Supports data logging and connection to PC.
