Description

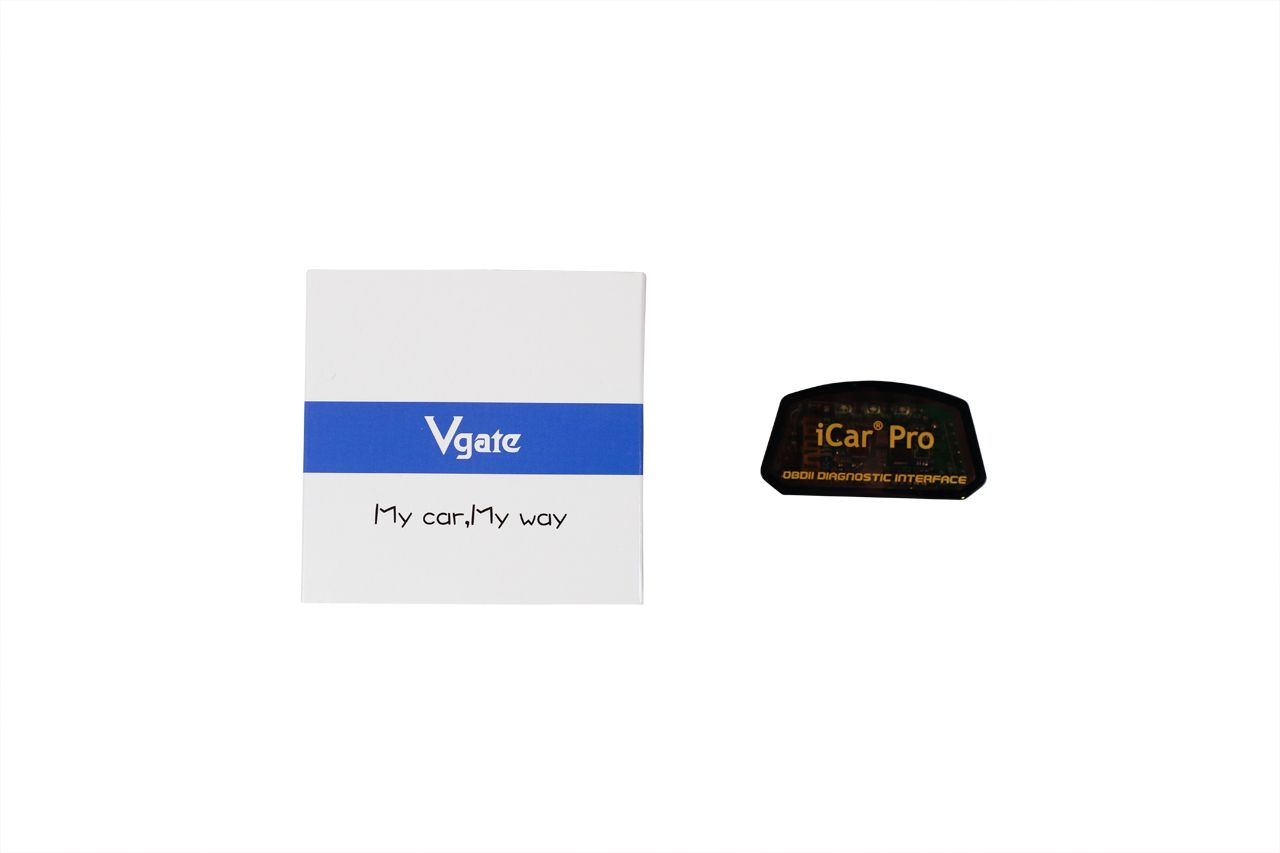

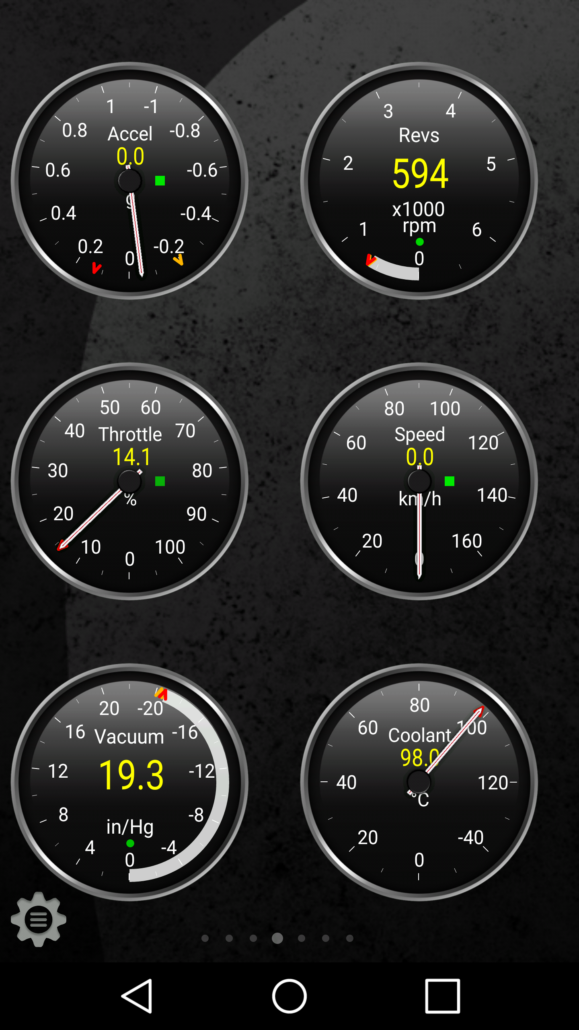

VGate iCar Pro BLE 4.0 OBD2 ELM327 Compatible Scan Tool / Code Reader / Scanner. Compatible with iOS, Android and PC, this BTLE 4.0 diagnostic tool allows you to read and clear DTC fault codes from any OBDII vehicle as as well as program modules including As Built data. It can also display PIDs to monitor your engine vitals such as Engine RPM, O2 sensor voltage, fuel trims, speed, boost level, ignition advance, and hundreds more.
Suitable for any OBD2 compliant vehicle including but not limited to AU Falcon, BA, BF, FG, FGX Falcon, VZ, VE, VF Commodore and thousands of others. Can be paired with your phone or your laptop. For EA-EL Falcon see our Diagnostic Code Reader.
Compatible Devices & Recommended OBD2 Apps:
- iOS (iPhone, iPad, iPad Pro, Macbook) – use OBD Car Doctor, OBD Fusion or Dash Command
- Android (all makes/models) – use Torque, Forscan and many more
- PC (all makes/models) – use supplied link, Forscan etc
- Recommended for Bimmercode – used for coding BMW modules and enabling features

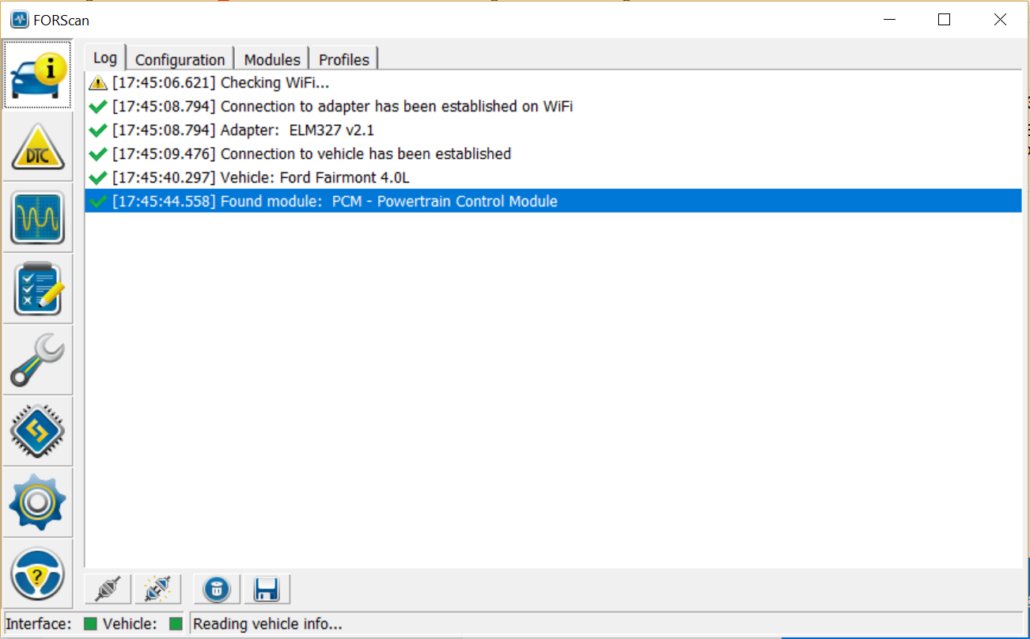

- Can be used to recode modules As-Built data (ABS, ICC) and do PATS resets on AU, BA, BF, FG Falcon using Forscan
Supported OBDII/OBD2 Protocols:
- ISO 15765-4 (CAN-B MS-CAN 125Kbps, used since 2003 in USA)
- ISO 15765-4 (CAN-C HS-CAN 500Kbps, 11bit ID, 29bit ID, used since 2003 in USA)
- ISO 14230-4 (KWP2000)
- ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
- SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
- SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008. Used by AU Falcon)
- SAE J1939 the Data link connector standard
Product Specifications:
- CPU: ARM 16bit MCU – ELM327 Version 1.4b compatible
- Transfer baud rate: 4800 / 9600 / 10400 / 38400 / 500K
- Input interface: OBDII male 16pin
- Output interface: BTLE 4.0
- LED Indicator: Power (red) / OBD (green) / Link (blue)
- Operating Voltage: 12V, including over voltage / short protection
- Nominal standby current: <3mA
- Net Weight: 31g
