VGate VLinker FS BT OBD2 Scan Tool / Code Reader suit Forscan iOS

Description

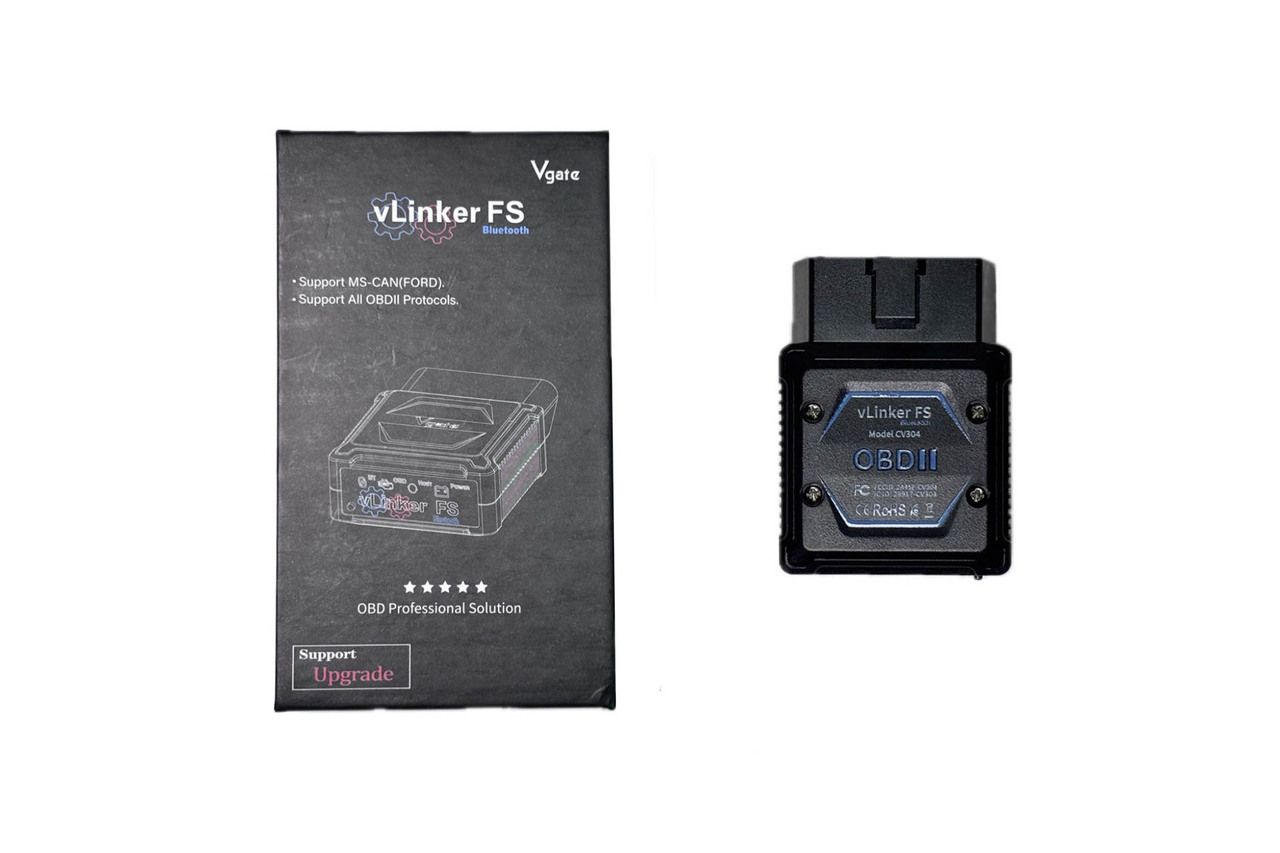

VGate VLinker FS BT is a BTLE 4.0 based OBD2 Scan Tool. Compatible with iOS, Android and PC, it’s designed for Forscan and recommended specifically by the Forscan team.

Features:

• Works with Apple iPhone, iPad, Android, PC (Apple MFI Certified)
• Supports HS Can and MS Can (auto-switching) and FEPS Programming
• Works with Forscan, ELMconfig, ELM FF2, FoCCCus, and many other software programs
• High speed transfer up to 3Mbps
• Supports OBD2 packets up to 4K
• 12 and 24V compatible
• Auto Sleep Mode
• For full instructions, see here.

This diagnostic tool allows you to read and clear DTC fault codes from any OBDII vehicle as as well as program modules including As Built data. It can also display PIDs to data log your engine vitals in real time such as Engine RPM, O2 sensor voltage, fuel trims, speed, boost level, ignition advance, and hundreds more.

Suitable for any OBD2 compliant vehicle including but not limited to AU Falcon, BA, BF, FG, FGX Falcon, VZ, VE, VF Commodore and thousands of others. Can be paired with your phone or your laptop. Works with Forscan for AU Falcon. For EA-EL Falcon see our Diagnostic Code Reader.

Compatible Devices & Recommended OBD2 Apps:

• iOS (iPhone, iPad, iPad Pro, Macbook) – use OBD Car Doctor, OBD Fusion or Dash Command
• Android (all makes/models) – use Torque, Forscan and many more
• PC (all makes/models) – use supplied link, Forscan, etc
• Can be used to recode modules As-Built data (ABS, ICC) and do PATS resets on AU, BA, BF, FG Falcon using Forscan
• Compatible with most OBD2 vehicles.

Supported OBDII/OBD2 Protocols:

• ISO 15765-4 (CAN-B MS-CAN 125Kbps, used since 2003 in USA)
• ISO 15765-4 (CAN-C HS-CAN 500Kbps, 11bit ID, 29bit ID, used since 2003 in USA)
• ISO 14230-4 (KWP2000 Fast & Slow)
• ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
• SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
• SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008. Used by AU Falcon)
• SAE J1939 the Data link connector standard
• ISO 11898 (Raw CAN)
• Medium Speed CAN (MS-CAN)
• ELM327 and ELM329 Compatible (including STN instruction)
