Description

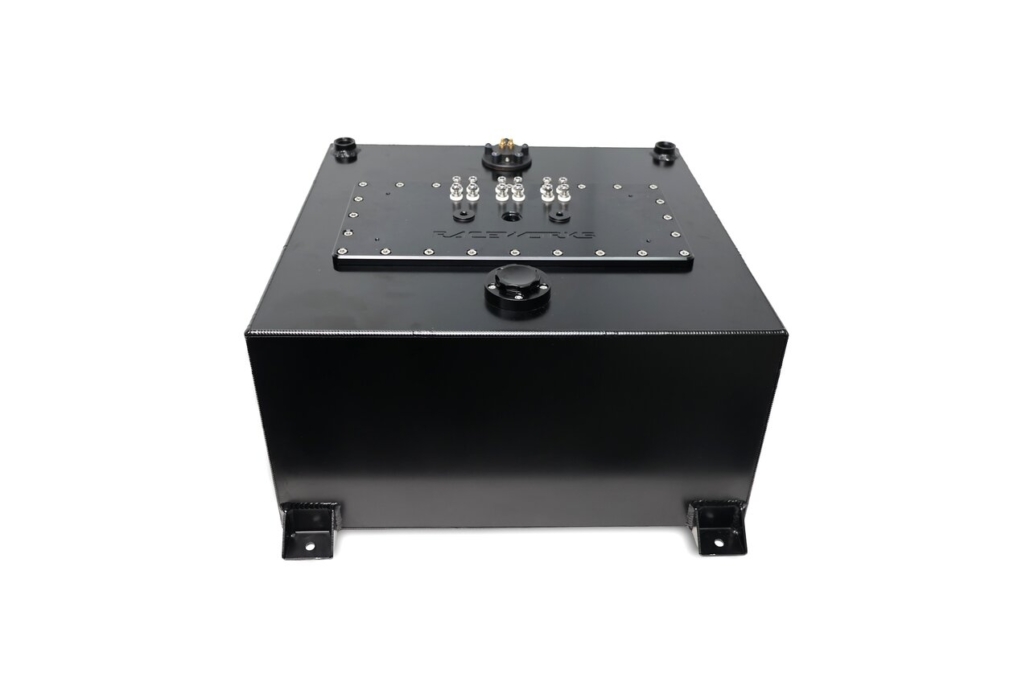

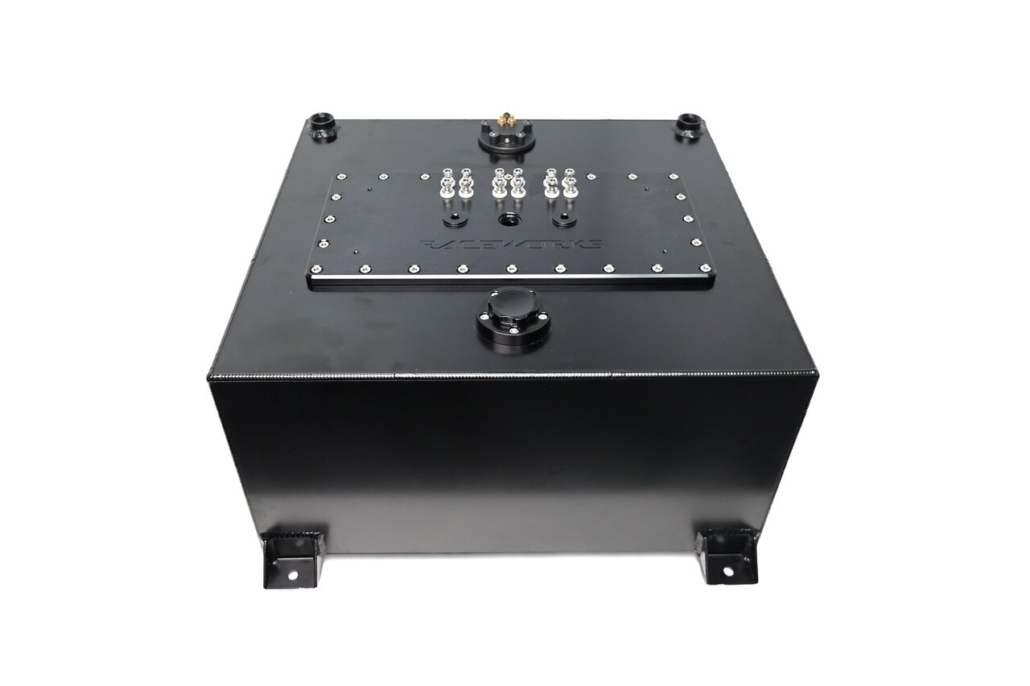

Raceworks Combination Fuel Cell Surge Tank 15 Gallon (57L). Combination Fuel Cell / Surge Tank with bolt in 3 pump hanger.
Raceworks Fuel Cells have been crafted to meet the most extreme racing and performance demands. All Raceworks fuel cells are seamlessly robot welded from 5052 aluminium. Reliable fuel delivery is your number one priority at the race track; the 5 Gallon Cell is Sumped and Foam Filled, while all the larger sizes are available as both Sumped or Flat Bottom and have Aluminium Internal Baffles to prevent fuel slosh and starvation during lateral loads. All cells contain a 0-90 Ohm Fuel Sender, which is E85 Safe, and are anodised in Black inside and out, making them durable and resistant to corrosion.
The Raceworks Combination Fuel Cell puts a large capacity 4.4L surge tank inside a 57L fuel cell to create a compact and servicable high performance fuel system in a single unit. This cell has been designed from the ground up for motorsport applications, and its simplicity means fewer components for a neater and more cost effective fuel system. The removable triple pump hanger panel allows for quick assembly of 1-2 internal lift pumps as well as 1-3 pressure pumps, and easy servicing. This cell has been designed as a direct bolt in replacement for all Raceworks ALY-272BK & ALY-273BK Fuel cells.
Features
- T6 Aluminium Fuel Cell with Inbuilt 4.4L Surge Tank

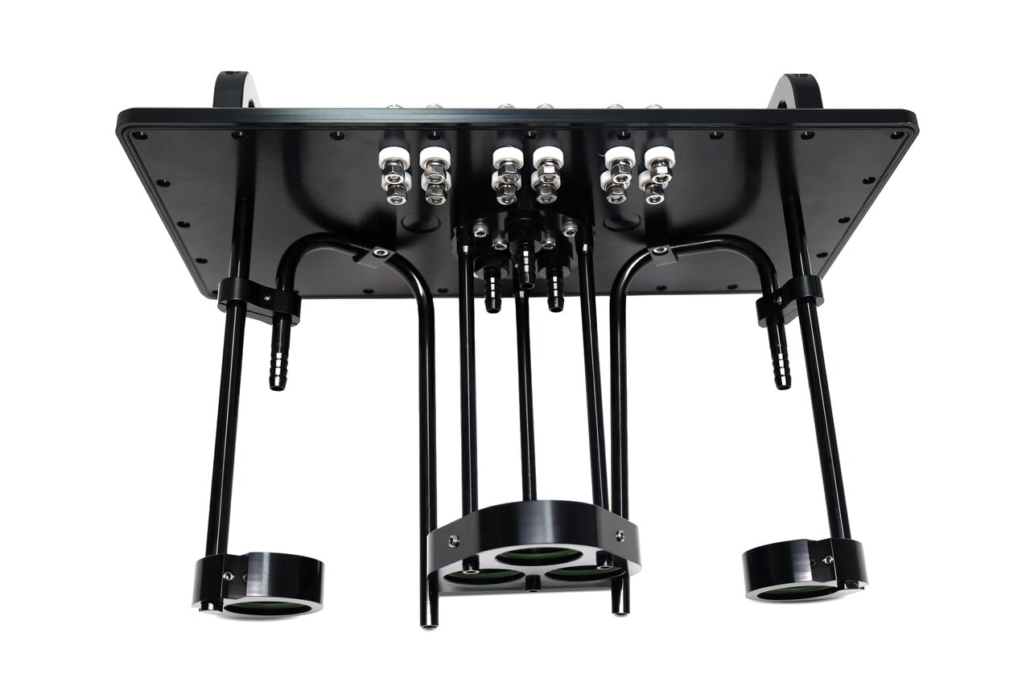

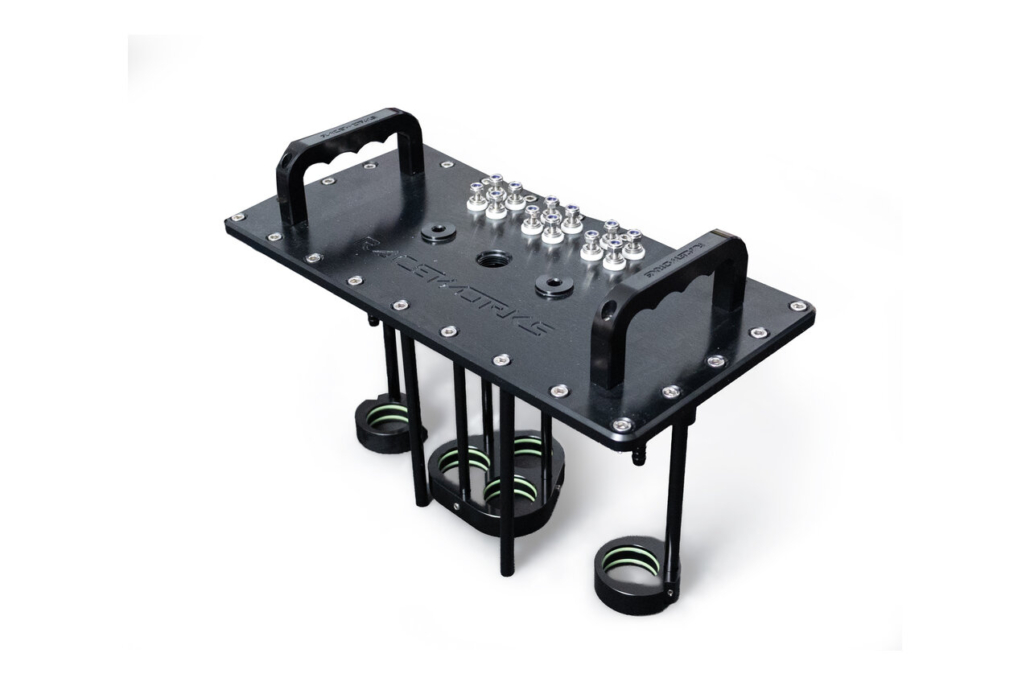

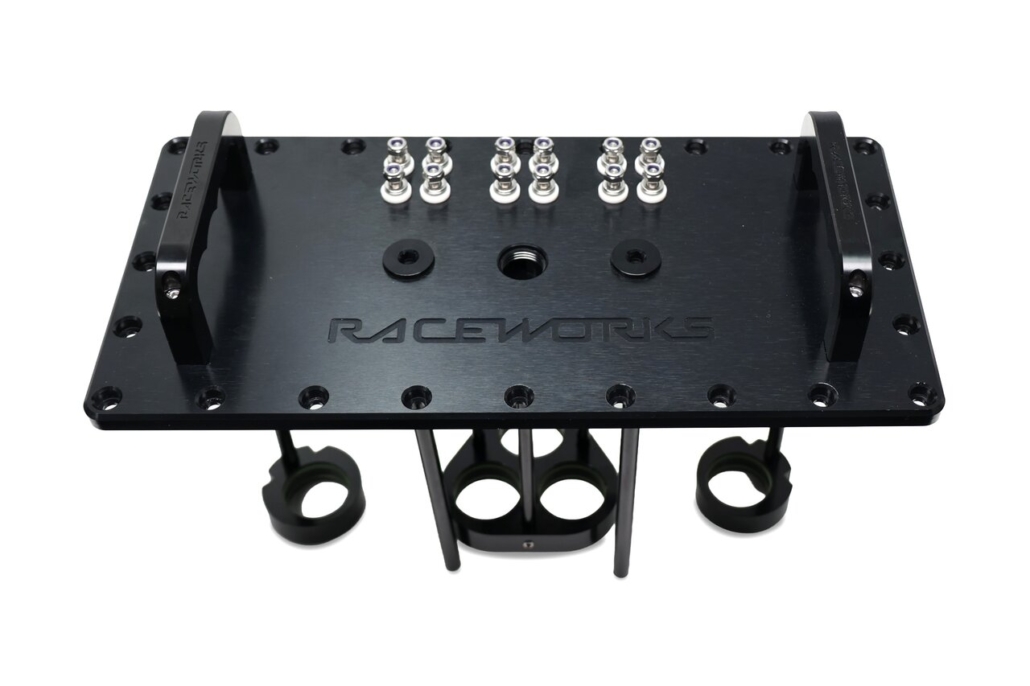

- Removable, bench rebuildable triple pump hanger capable of running 1-3 fuel pumps plus 1-2 Internal Lift Pumps
- 6x Sets of Stainless Steel electrical terminals for multiple configurations (eg. PWM Brushless Pumps, 2x Lift + 3x Staged Brushed, etc)
- AN-10 Vortex Flow O-Ring outlet for high flow performance

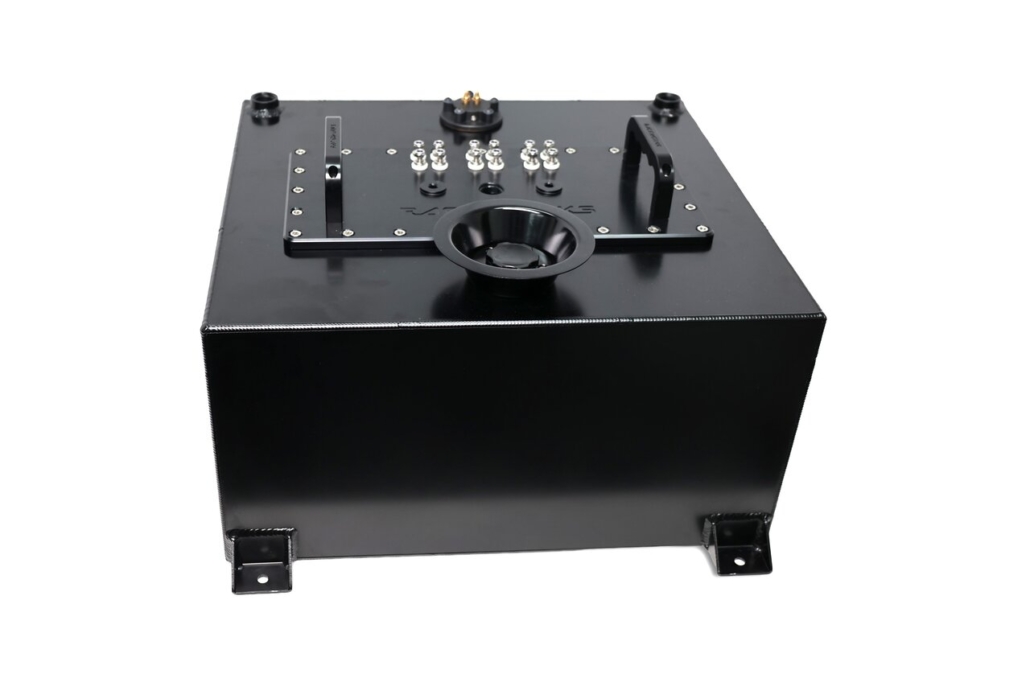

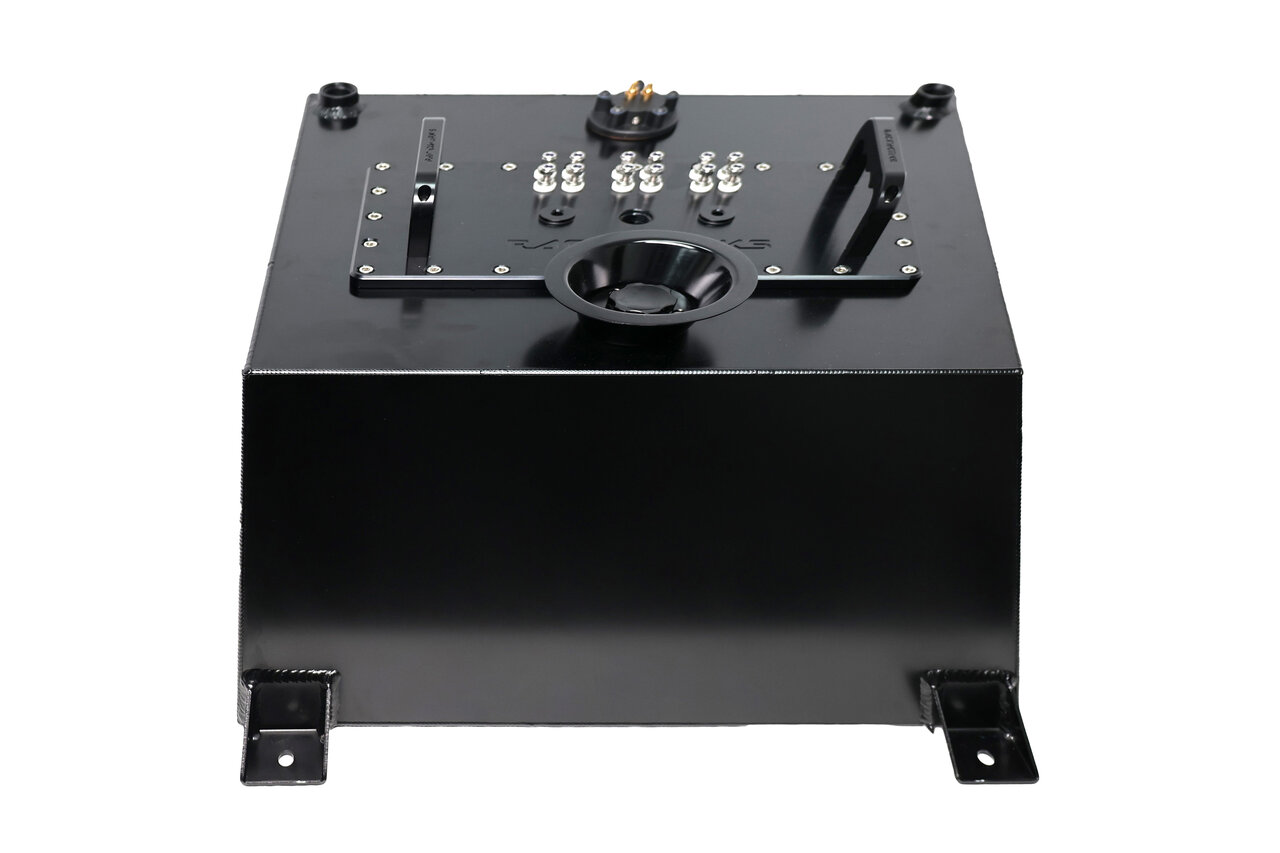

- Supplied with removable spill tray and hanger lifting handles (removable)
- Heavy Duty contruction with 6mm thickened side walls, 10mm CNC machined pump hanger
- Double annodised black finish for a motorsport look
- Baffling system allows for fuel to travel around the external tank area
- Filler is positioned between surge and main tank (so that it is able to fill up the surge)
Replacement O-Ring is RWM-030. Supplied with 2x Terminal Blanking Plugs FSA-521. We recommend the use of EFP-089 as a lift pump.
Specifications
- Model: ALY-249BK
- Volume: 57L (15gal) Total
- Surge Tank Volume: 4.4L
- High Pressure Pumps Supported: 1-3 38-40mm pumps (inc EFP-500, EFP-501, EFP-800, Walbro 460, Walbro 525, TI Automotive BKS1001)
- Feed & Return: AN-10 O-Ring Ports on hanger (+2x AN-10 O-Ring Ports on tank for venting)
- Lift Pumps: Dual
- Fuel Level Sender: 0-90 Ohms
- E85 Safe: Yes (Viton O-Rings)
- Dimensions (WxDxH): 510mm x 195mm x 260mm
- Full Spec Sheet: Raceworks ALY-249BK Combination Fuel Cell Flyer
All Raceworks products come with a 2 year warranty.
Raceworks Part Number: ALY-249BK
