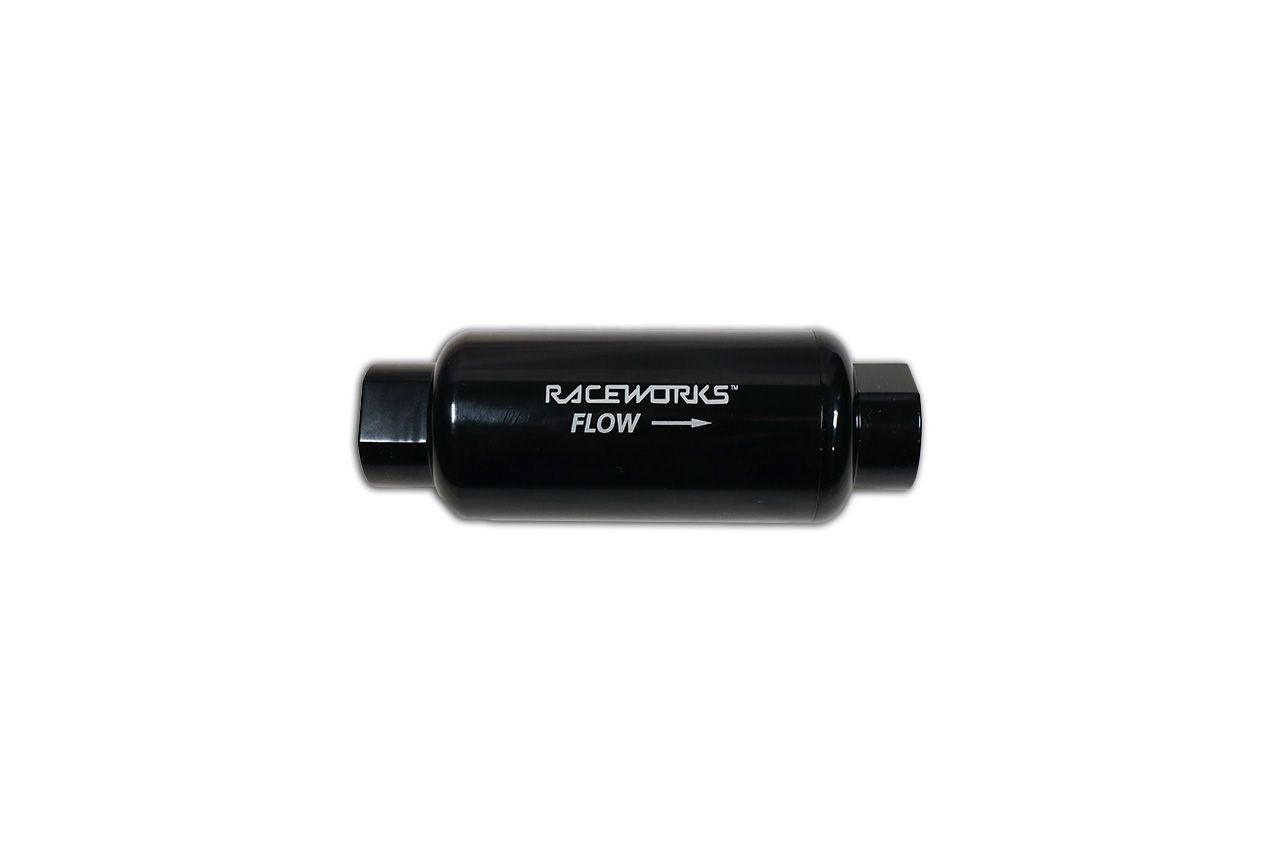

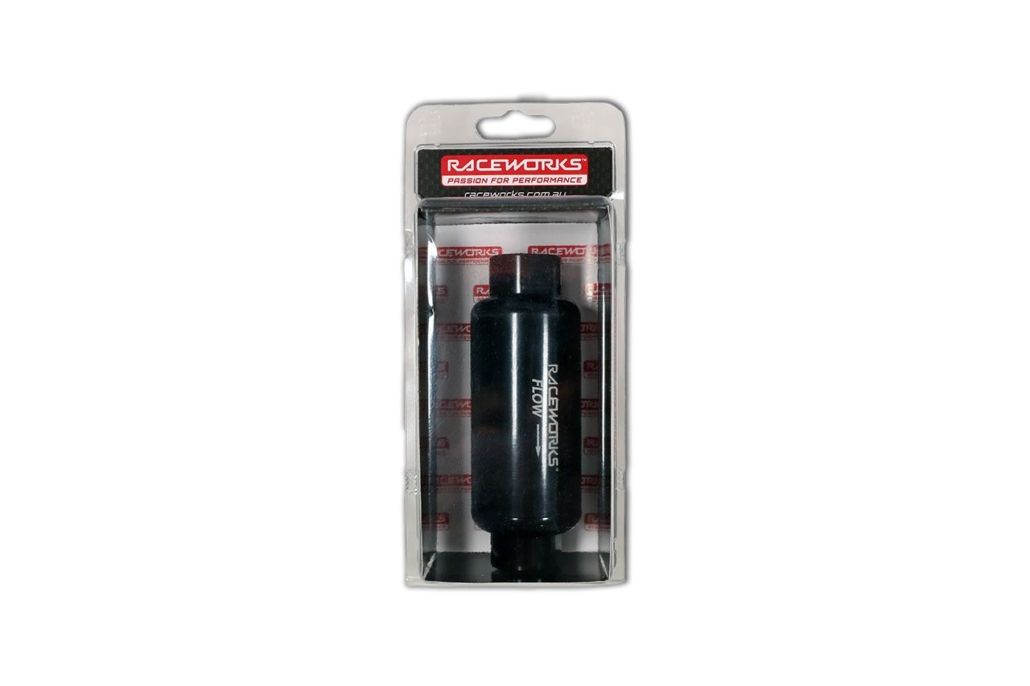

Raceworks 10 Micron Billet Fuel Filter w/ Stainless Element – AN-10

Description

Raceworks 10 Micron Stainless Element Billet Fuel Filter.

Raceworks Inline Fuel Filters constitute the core of any high performance EFI installation, affording both precise levels of filtration and high volumes of flow. Replacement element varieties are available for billet filters in 10, 40, 75, and 100 micron stainless steel, along with barbed filters with 30 micron bronze elements, both allowing for pre and post-pump filtration without impeding flow rates. All elements are E85 safe, with a total filtration surface area of up to 374 square centimetres. Filter bodies are hard coat anodised in gloss black, with matching brackets available to match your in-car or under-car setup.

All Raceworks products come with a 2 year warranty.

Specifications:

• Connections: AN-10 O-Ring Ports
• Dimensions: 50mm diameter, length 140mm

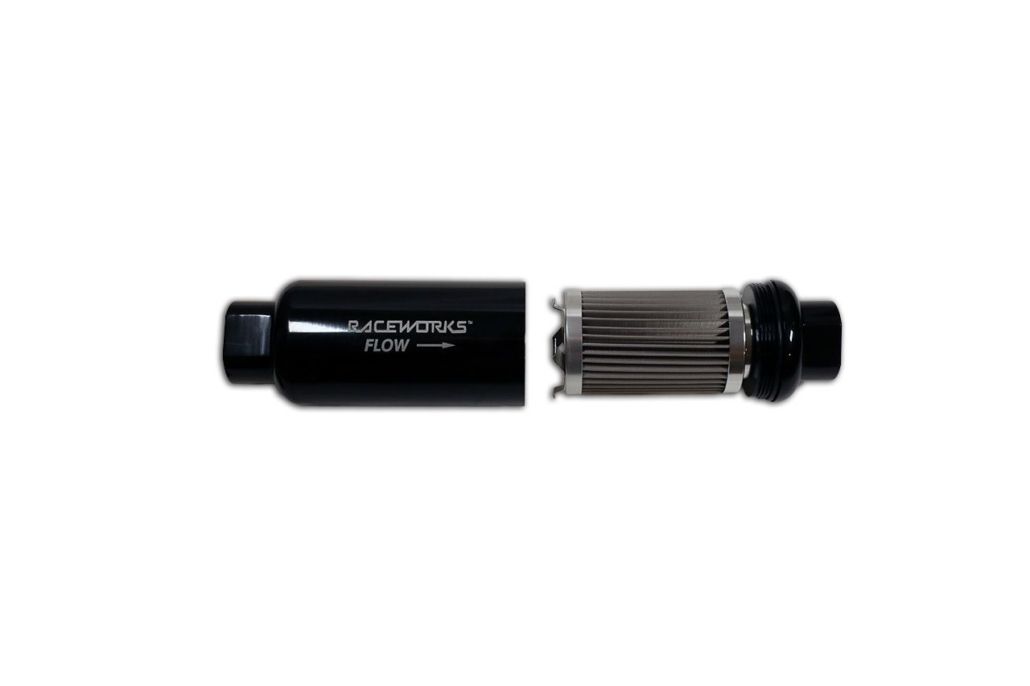

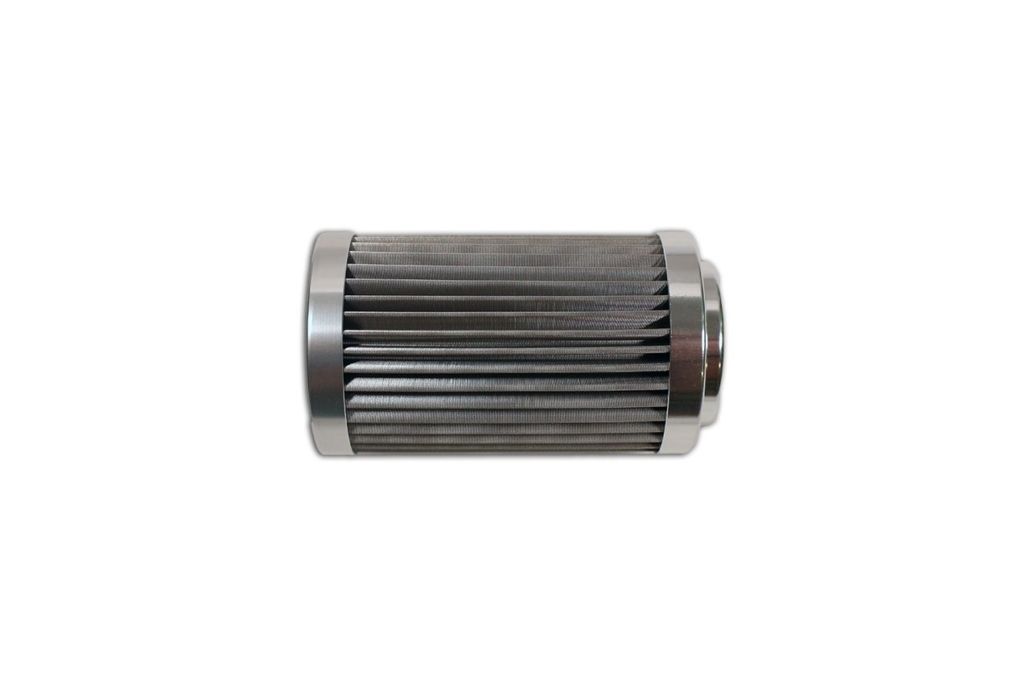

• Element: Stainless Steel, E85 safe, user replaceable
• Flow: 1500lph (measured with 2psi drop at 3 bar)
• Bracket sold separately, see Billet 50mm fuel filter bracket available here.

Raceworks recommended a 100 micron filter pre-pump, and a 40 or 10 micron filter post-pump.

E85 ready with AN -10 Ports.

Manufacturer Part Number: ALY-077-10BK
