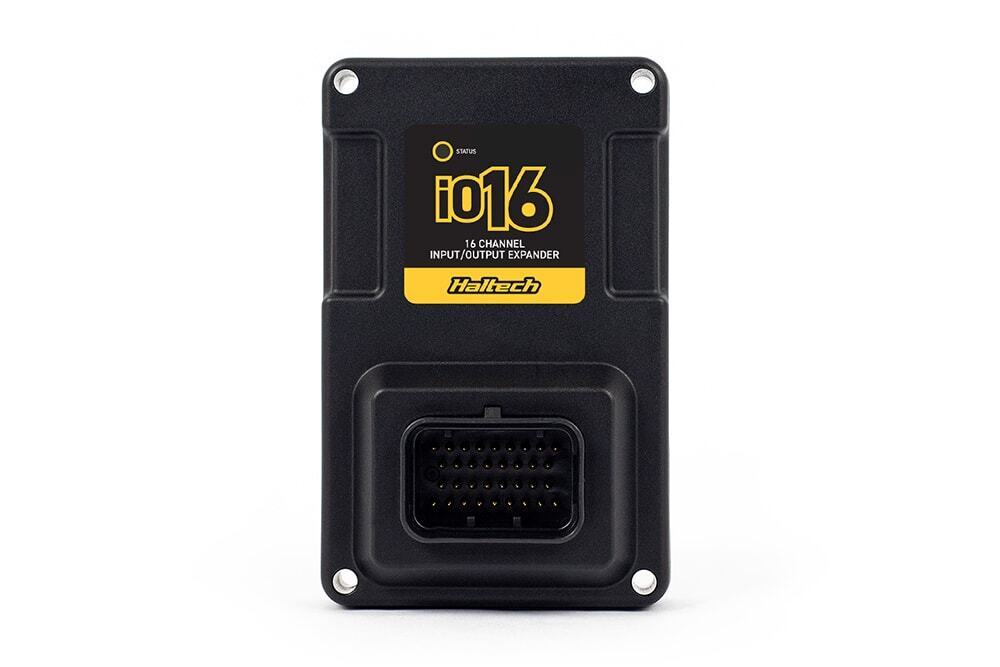

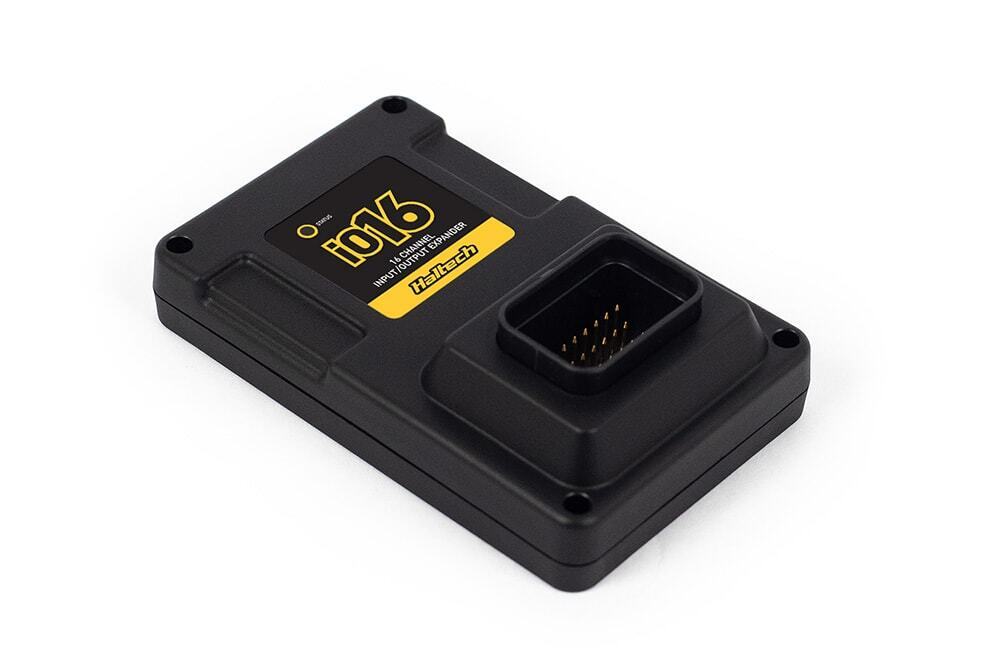

Haltech Nexus IO16 Input/Output Expander – 16 Channel

Description

Nexus IO16 Input/Output Expander – 16 Channel.

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

Inputs:
6 x Analogue Voltage Inputs (AVI)

• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

4 x Synchronised Pulsed Inputs (SPI)

• Reluctor/Digital
• 0-5V readable range
• Selectable 1k pull-up resistor to 5V

Outputs:
6 x Half Bridge Outputs (HBO)

• 8A current (sink/source)
• Capable of 0-100% duty cycle
• 2.2khz switching speed
• NOT suitable for DBW throttle application

WARNING – When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.

• 3 x 5V output (sensor power)
• 4 x Sensor ground

Note: Any 5V and sensor ground pins can be paired when wiring sensors.

Suits Nexus ECU’s/VCU’s/Dashes

Elite ECU’s.

Includes IO16 Expander, Mounting Hardware, and

Quick Start Guide.

Manufacturer Part Number: HT-196000
