Maradyne 9″ Thermo Fan Champion Series 12v – 130w

Description

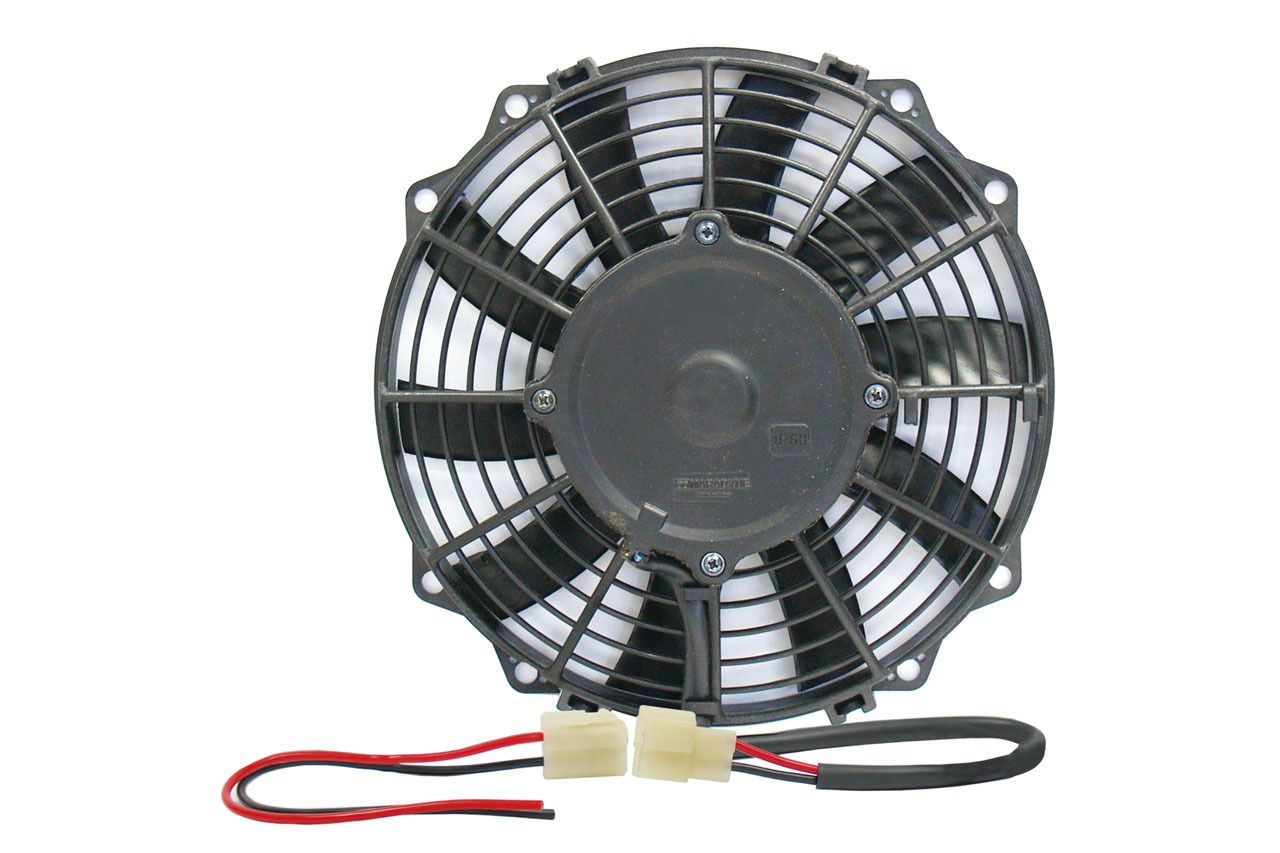

Maradyne 9″ Thermo Fan Champion Series 12v – 130w. 9 in., low profile, reversible “S” blade fan with 130 watt motor.

MARADYNE® design only the highest quality components into their fan assemblies. All plastic components are moulded from engineering grade glass-filled nylon resin. All motors are designed for long life, durability and harsh environments. These motors perform not only on the race track, but also in extreme off-road conditions.

Features:

• Lowest profile high performance reversibles on the market
• Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
• Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)
• All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
• Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger

Specifications:

• Model: M093K
• Motor: 130w
• Current Draw: 7.7A

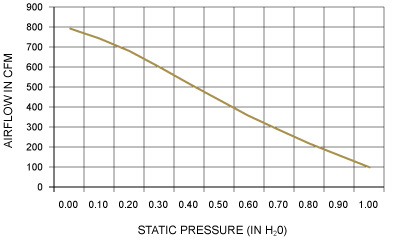

• CFM @ 0 in. Static: 790
• Depth: 2.48 in.

Full spec sheet: m093k_data.pdf

Maradyne Part Number: M093K
