Description

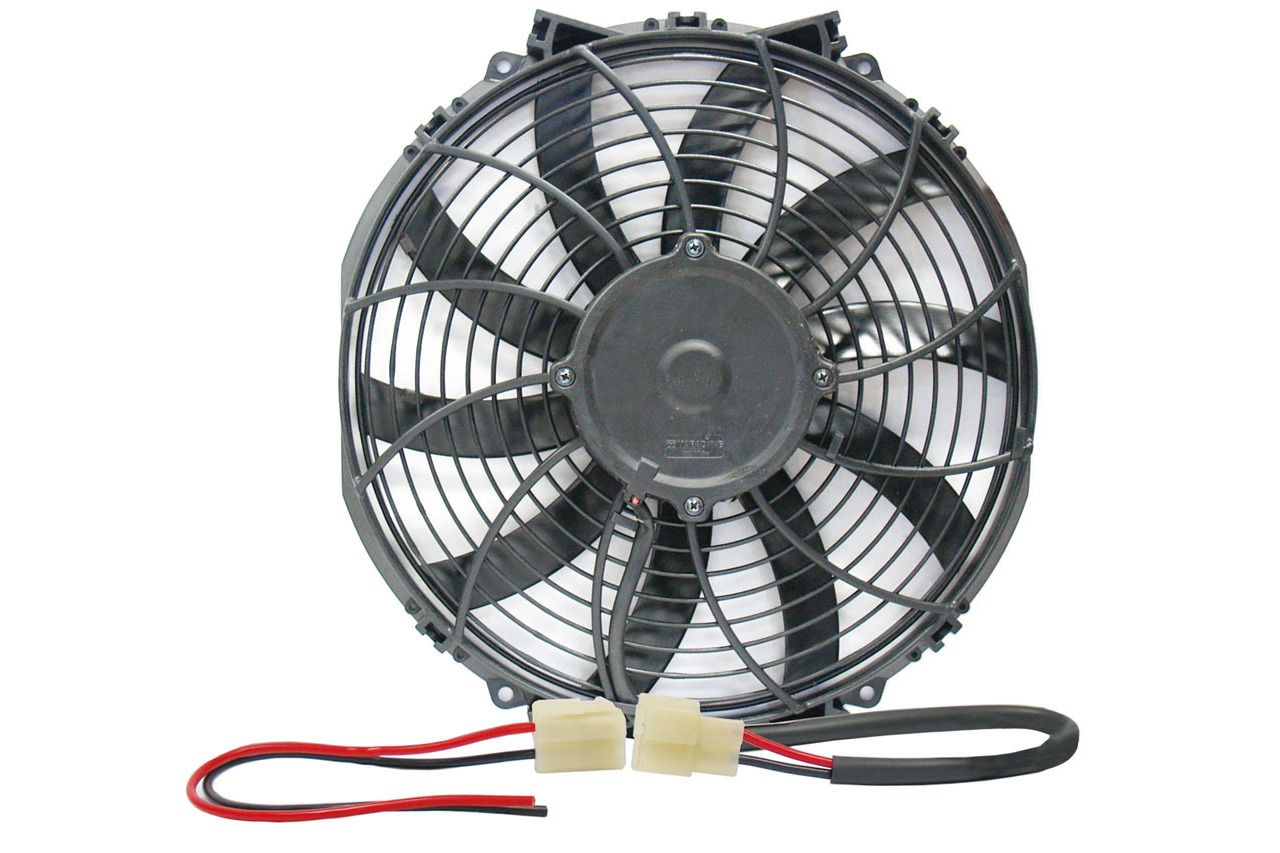

Maradyne 12″ Thermo Fan Champion Series 12v – 130w. 12 in., low profile, reversible “S” blade fan with 130 watt motor.
MARADYNE® design only the highest quality components into their fan assemblies. All plastic components are moulded from engineering grade glass-filled nylon resin. All motors are designed for long life, durability and harsh environments. These motors perform not only on the race track, but also in extreme off-road conditions.
Features:
- Lowest profile high performance reversibles on the market
- Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
- Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)
- All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit
- Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
Specifications:
- Model: M123K
- Motor: 130w
- Current Draw: 7.7A

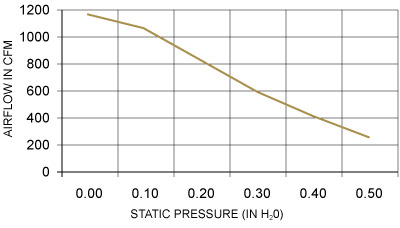

- CFM @ 0 in. Static: 1,155

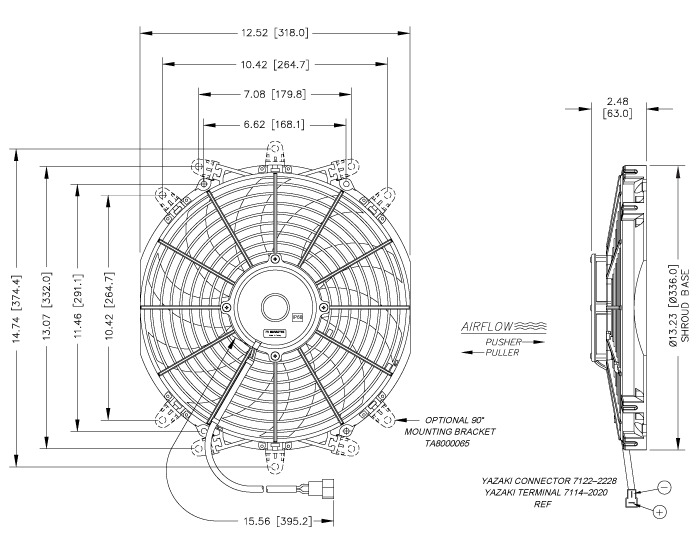

- Depth: 2.48 in.
Full spec sheet: m123k_data.pdf
Maradyne Part Number: M123K
