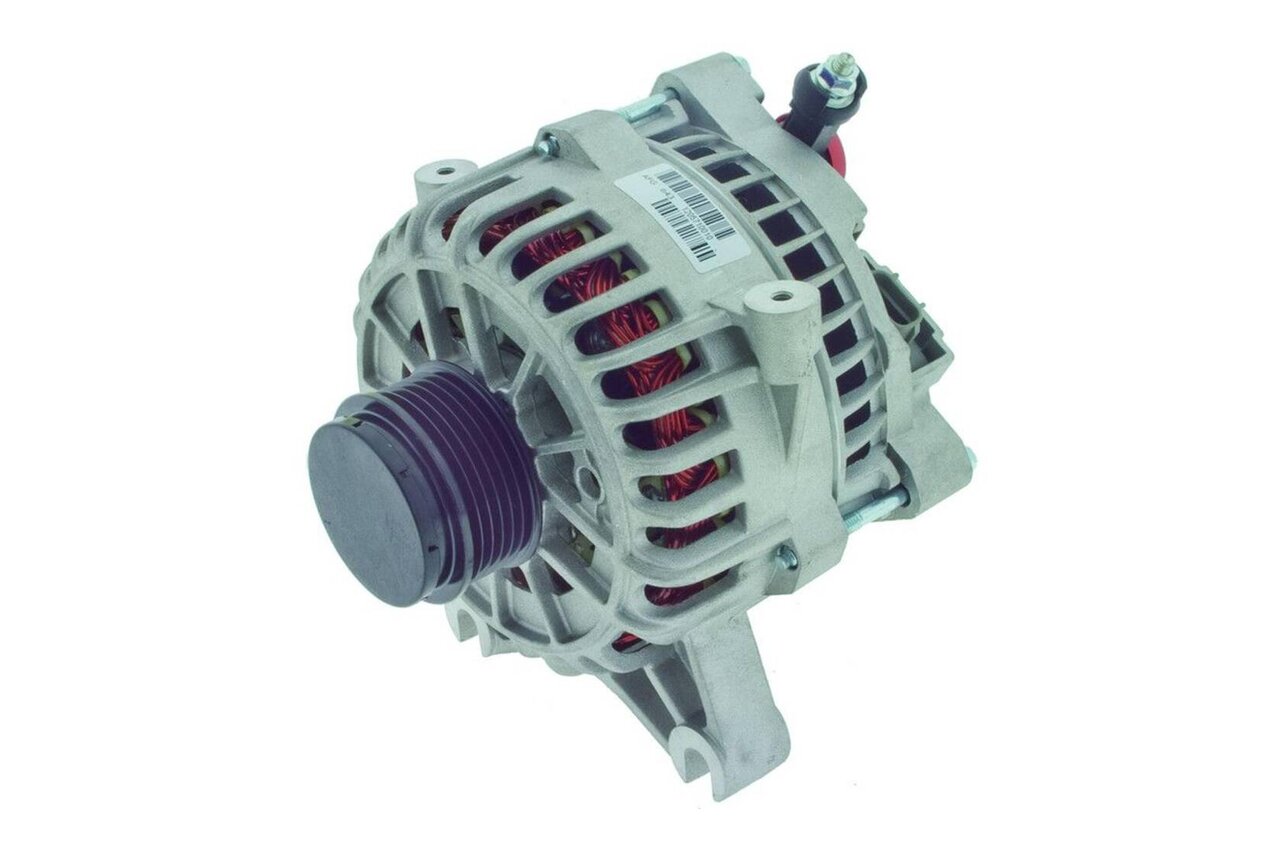

Jaylec Alternator suit BA BF FG Falcon 5.4L V8 3 Pin

Description

Jaylec Alternator suit BA BF FG Falcon 5.4L V8 3 Pin.

Jaylec is an Australian automotive aftermarket brand launched in 2006 and backed by CoolDrive. Jaylec specialises in alternators, starter motors, and rotating electrical components designed to meet or exceed OEM specifications, making them suitable for performance, street, 4WD, and motorsport. Jaylec offers strong warranty coverage, including up to 3 years for passenger vehicles, 2 years for 4WD and light commercial, and 1 year for heavy-duty or specialist use.

OAP Pulley 53-1040, Regulator 15-0007.
For connector see EP54.

Specifications:

• Voltage: 12V
• Amperage: 135A
• Mount Leg ID: 110mm
• C-C Mounts: 148mm
• Hole ID Top: M6
• Hole ID Bottom: 9mm sLotted
• Shaft Size: 17mm
• Pulley Type: 6PV
• Pulley Belt Width:
• Pulley Grooves: 6
• Pulley Diameter: 60mm
• Regulator Type: Internal:
• Connections Plug #: EP54
• Terminals: B+, S, D, L
• Excitation: External
• Ground: Negative
• Weight (Kg): 8.0kg
• OAP Pulley: 53-1040
• Regulator: 15-0007

Vehicles:

• Suits all vehicles with 5.4 V8 (220, 260, 290, 315)

Manufacturer Part Number: 65-0095
